• Model NO.：CP90 Stone Stamping Machine
• Control：Artificial
• Certification：CE
• Pressing Size：300X300X50mm
• Driving Force：Hydraulic Device
• Max Stamping Thickness：50 mm
• Color：Green and Blue, Other Color Available
• Main Market：Europe, North and South America, Africa, Asia.
• Customer Feedback：All Our Customers Give Us Good Feedback for The Qu

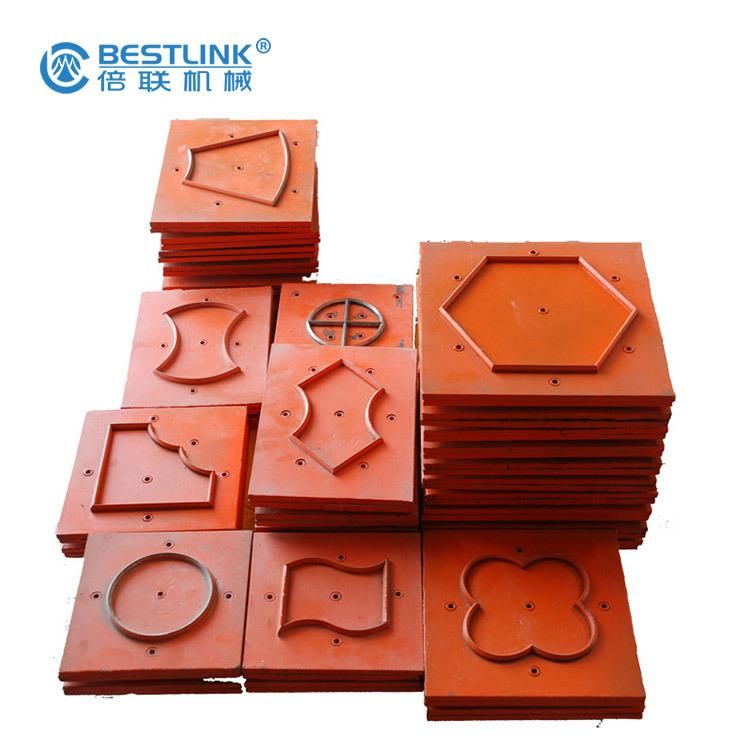

• Shape Model：More Then 40 Styles of Stamping Model
• Key Word：Stone Firepit Stamping Machine,Stone Press Machine
• Size：80*100*150cm
• Output Per Day：100-120 Square Meter.
• Transport Package：Plywood
• Specification：CE
• Trademark：BESTLINK
• Origin：Xiamen Fujian
• HS Code：84791090
• Production Capacity：500sets,Year

Basic Info.

Model NO. CP90 Stone Stamping Machine Control Artificial Certification CE Pressing Size 300X300X50mm Driving Force Hydraulic Device Max Stamping Thickness 50 mm Color Green and Blue, Other Color Available Main Market Europe, North and South America, Africa, Asia. Customer Feedback All Our Customers Give Us Good Feedback for The Qu Shape Model More Then 40 Styles of Stamping Model Key Word Stone Firepit Stamping Machine/Stone Press Machine Size 80*100*150cm Output Per Day 100-120 Square Meter. Transport Package Plywood Specification CE Trademark BESTLINK Origin Xiamen Fujian HS Code 84791090 Production Capacity 500sets/Year

Product Description

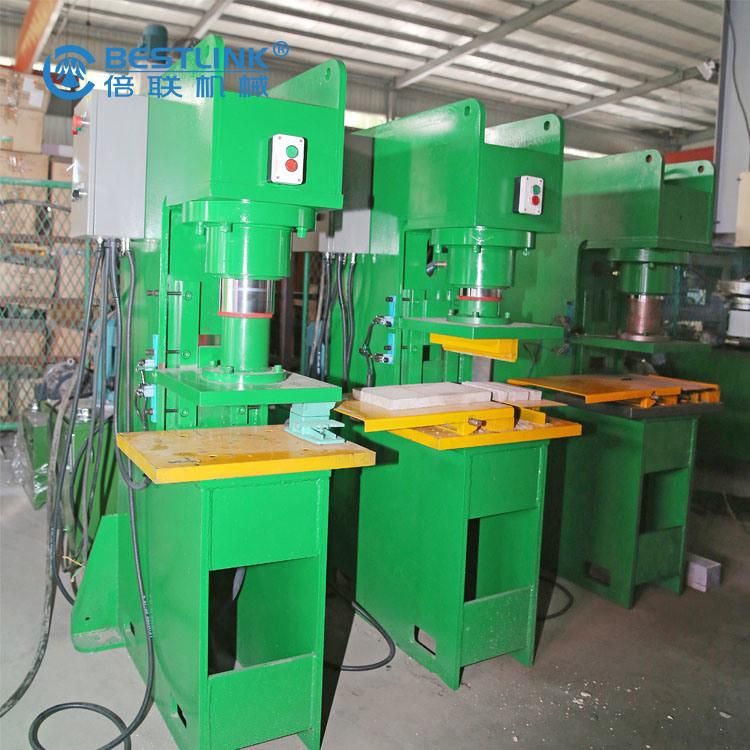

CP90 Special Design Stone Firepit Stamping Machine

A. Application:

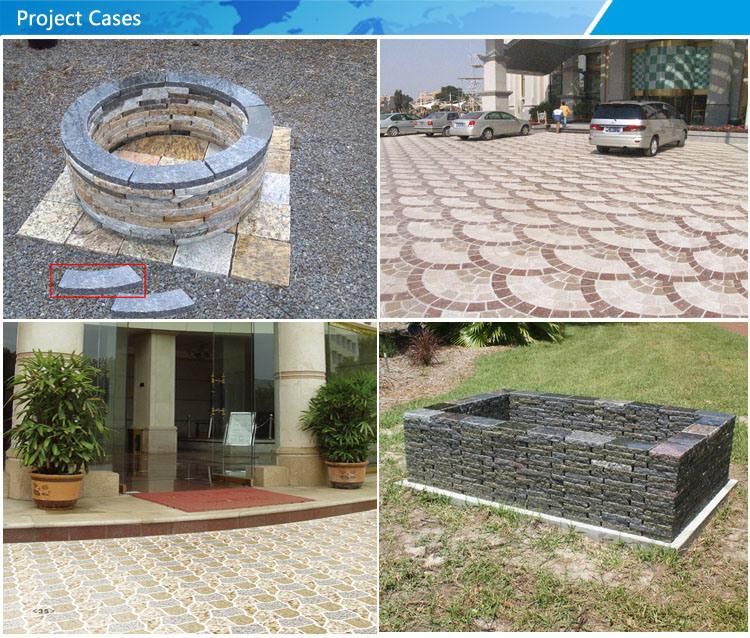

With these machines, you can turn the waste quarry blocks and broken tiles into paving stones, fire pit,
Mosaic stones, beautiful shaped tiles for decoration uses. The thickness could be to 50mm if you need. It has the advantages of high productivity effect, no need for technique and low cost. The outstanding cost performance and high efficiency of hydraulic stone pressing machine win the trust and reputation from our customers. It is very convenient to start and operation.
Electronically-controlled parts with a separate control cabinet, which is controlled by push-button station and button box. Welcome to visit our factory to check the quality.




B. Structure:
(1)Our machine is constituted of the bed, rub rail, slide carriage, tooth on the top, bottom jaw and hydraulic system, etc.
(2)The bed is welded by the steel plate and integrally annealed after that.
(3)Hydraulic system is made up by the oil box, electric motor, oil pump and different valves. Oil box stores hydraulic liquid. The Hydraulic liquid should be filtered by the 10μ M nets. The top of the oil box can be dismantled for clean and the oil drain hole is at the bottom.




C. Company introduction:

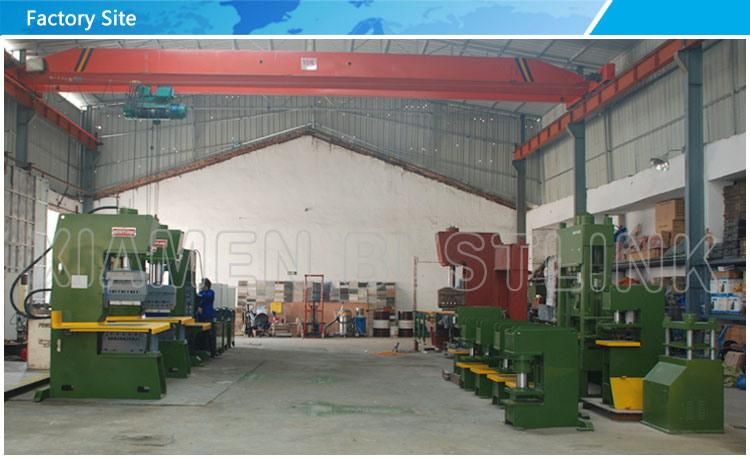

Xiamen Bestlink Factory Co., Ltd since 2000 is committed to providing the best drilling and cutting machine, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project. It is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China.

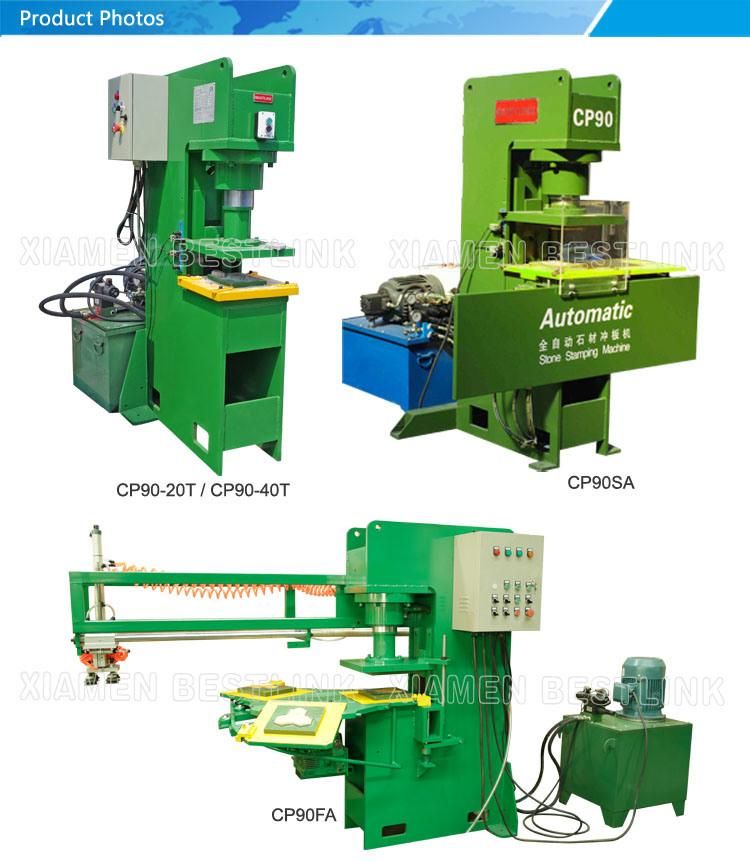

Model	CP90-20T-B	CP90-40T-B	CP90 (40T Semi-automatic)
Hydraulic pressure	20Mpa	20Mpa	20Mpa
Splitting power	20T	40T	40T
Electric motor power	4kw	7.5kw	7.5kw
Max.slab stamping size	30cm ×30cm×5cm	30cm ×30cm×8cm	30cm ×30cm×8cm
Max splitting length	30cm	35cm
Max splitting height	2-5cm	5-8cm
Machine size	80*100*150cm	80*100*150cm	80*100*150cm
Weight	500kg	580kg	650kg
Functions	stamping, cutting, splitting	stamping, splitting, cutting	stamping
