• Model NO.：UG-1313
• Application Material：All Kinds of Stone
• Automation：Semi-automatic
• Control：CNC
• Motor Power：High Power
• Engraving Head Speed Adjustability：Wide Adjustable Range
• Certification：CE, ISO
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Working Area：1300(X)mm*1300(Y)mm*350(Z)mm
• Cooling：Stainless Steel Water Slot Cooling(Build in)
• Guide Rail：Linear Square Guide Rail ( Hiwin, Taiwan)
• Transmission：Helical Rack &Pinion for X Y -Axis, Lead Ball Scre
• Driving Mode：Stepper Motor and Driver
• Spindle Motor：5.5kw Water Cooling, Er25
• Spindle Speed：0-24000rpm
• Control System：DSP Offline or Mach3 or Ncstudio
• Lubrication：Semi-Auto
• Tools Calibration：Auto
• Engraving Speed：0-12000mm,Min
• Preicion：0.02mm
• Transport Package：Plywood Case
• Specification：2485*2230*2175mm, 1000kgs, one plywood case packin
• Trademark：UPGOAL
• Origin：Jinan City, Shandong Province, China
• HS Code：84659900
• Production Capacity：200 Sets,Month
• Package size per unit product：248.00cm * 223.00cm * 217.00cm
• Gross weight per unit product：1000.000kg

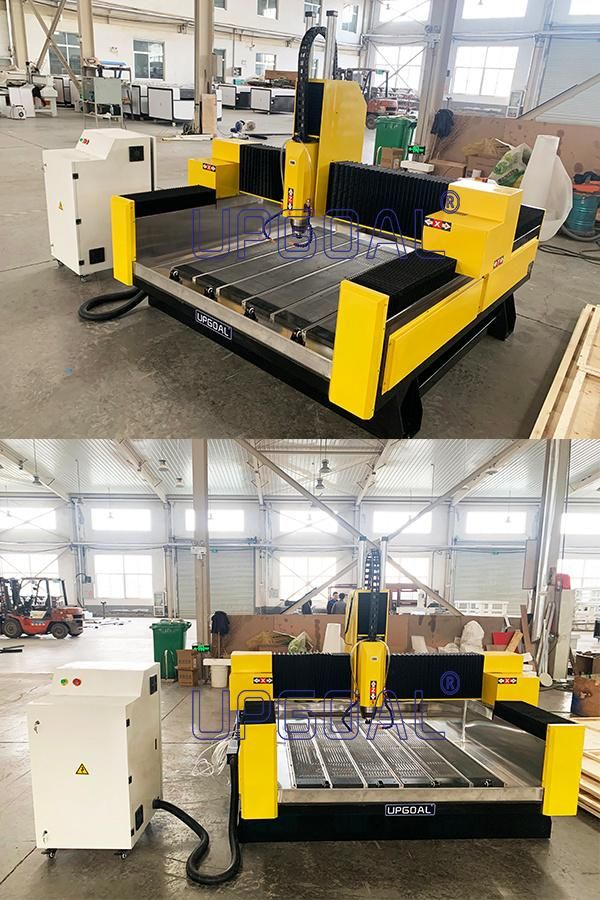

Features

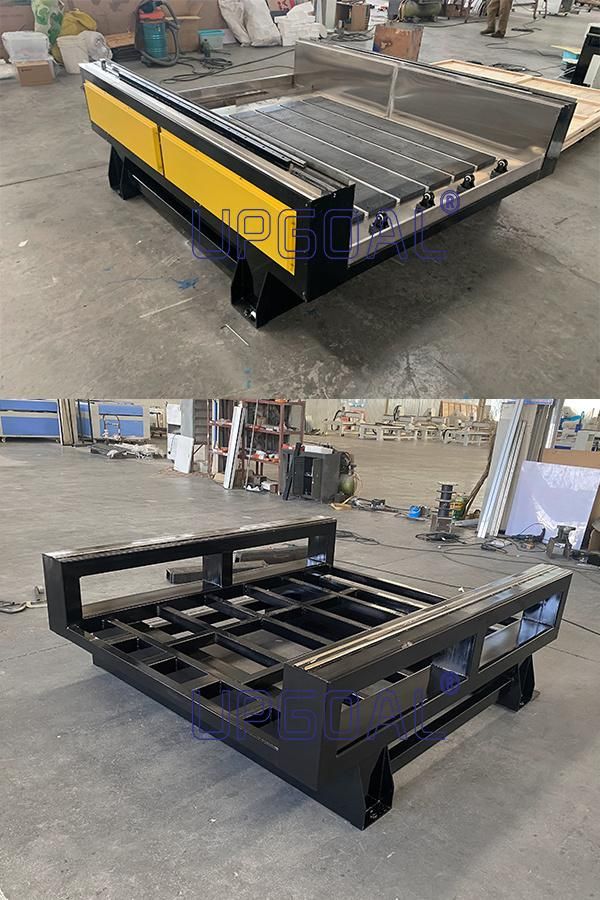

1.Adopted strong heavy duty T type sqaure steel tube structure strong rigidity, strong dynamics, ensuring the machine long time high speed moving and no deformation.

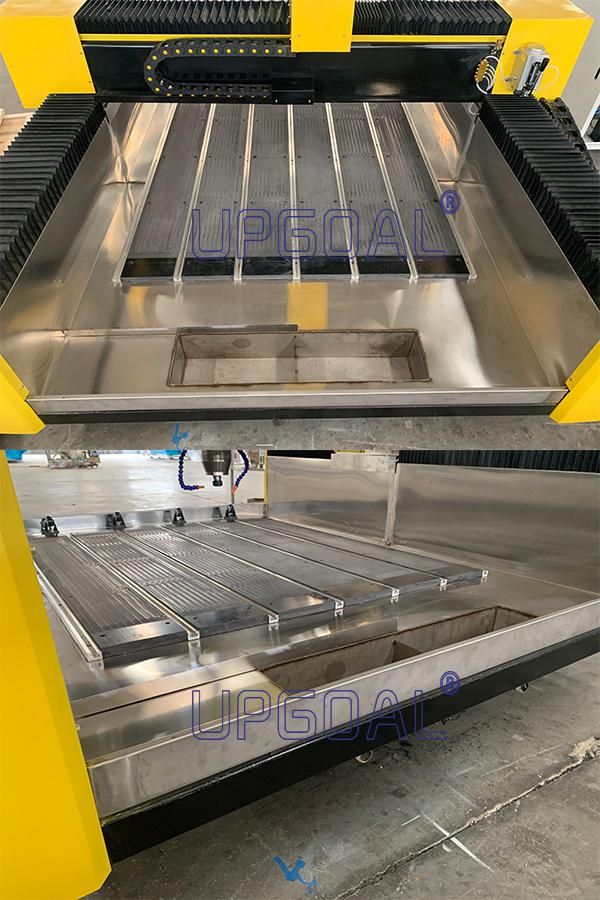

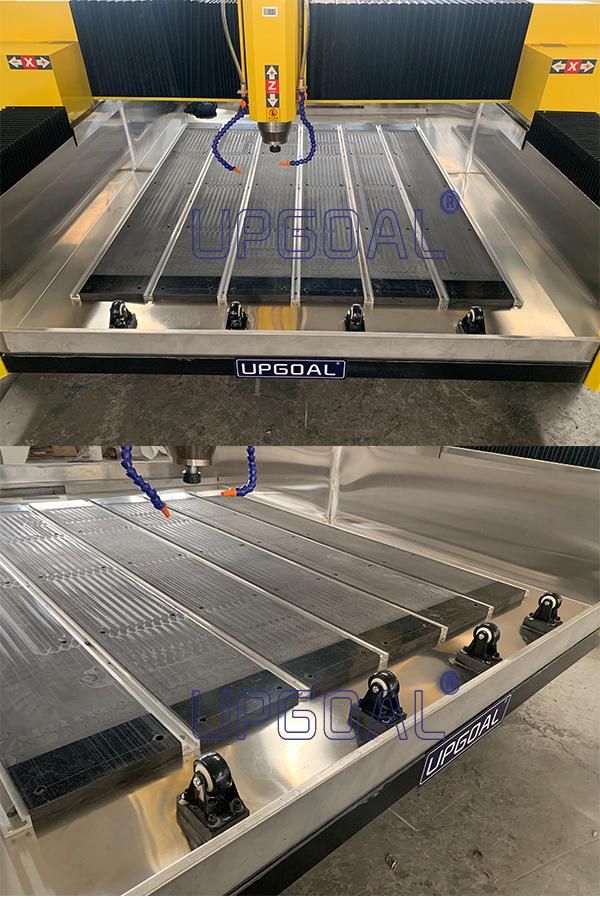

2. Integrated stainless steel water slot with working table & machine body more convienient for water collection and circulation.

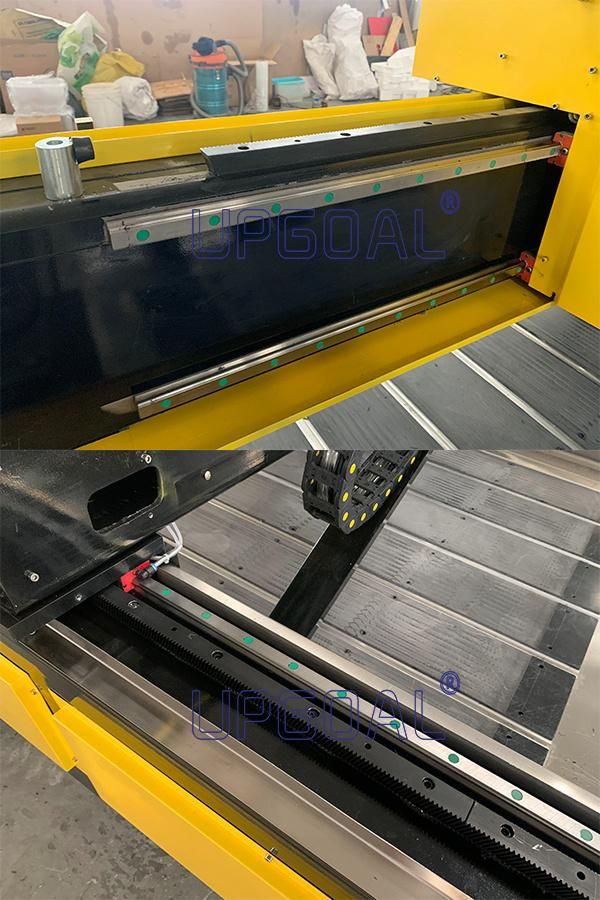

3.XYZ-axis adopted imported Hiwin, Taiwan linear square guide rail, high precision,fast speed and good wear resistance.

4.XINYUE brand high precision helical rack and pinion transmission for XY-axis,fast speed and powerful. Z-axis with double nut lead ball screw transmission, good weight capacity and stable moving.

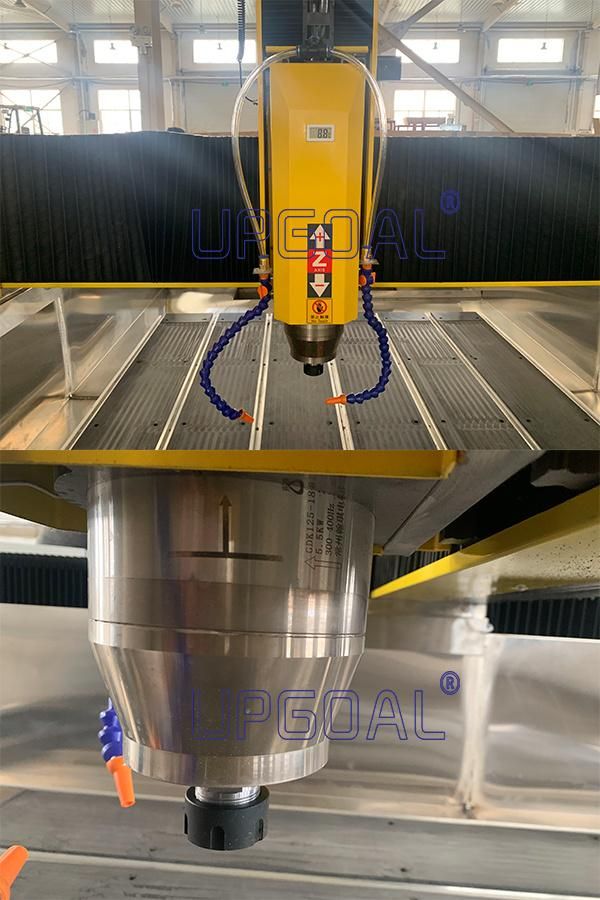

5. Powerful 5.5kw water cooling spindle( HQD brand ER25), easy to engraving all kinds of stone, not only fine engraving, but also the bottom smooth and clear. Bothway tools cooling system, effectively improve tools life time.

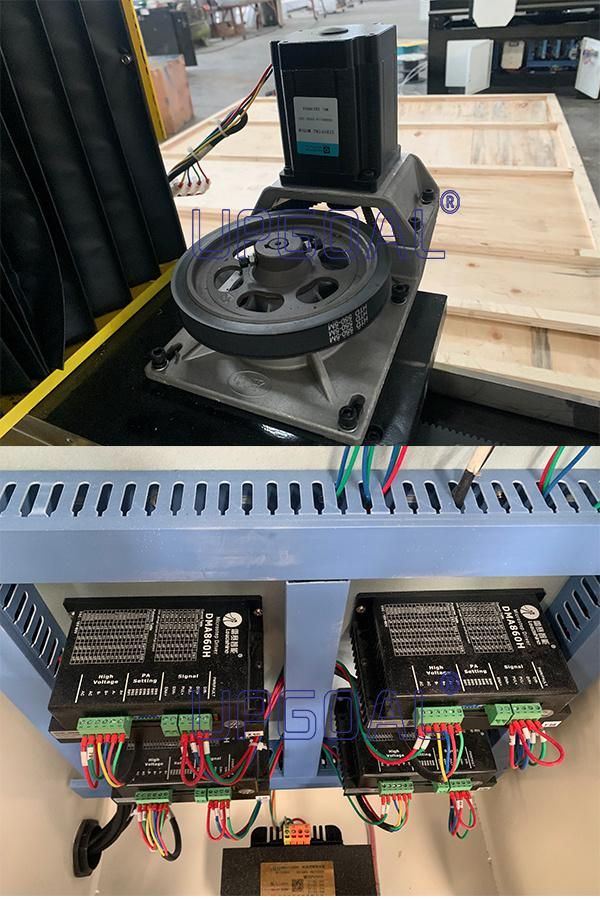

6.China famous Chuangwei stepper motor and Leadshine stepper driver DMA860H for XYZ-axis, high precision, faster speed and more stable. Dual motor and driver for Y-axis,ensuring the stable moving.

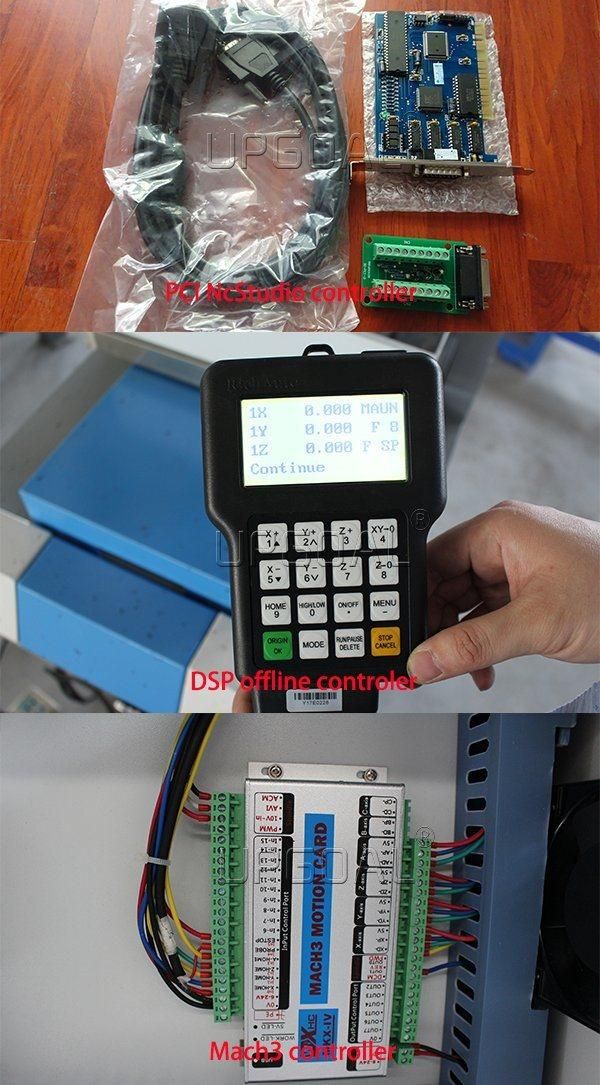

7. Optional DSP Offline/Mach3/NcStudio 3 axis/4 axis controller

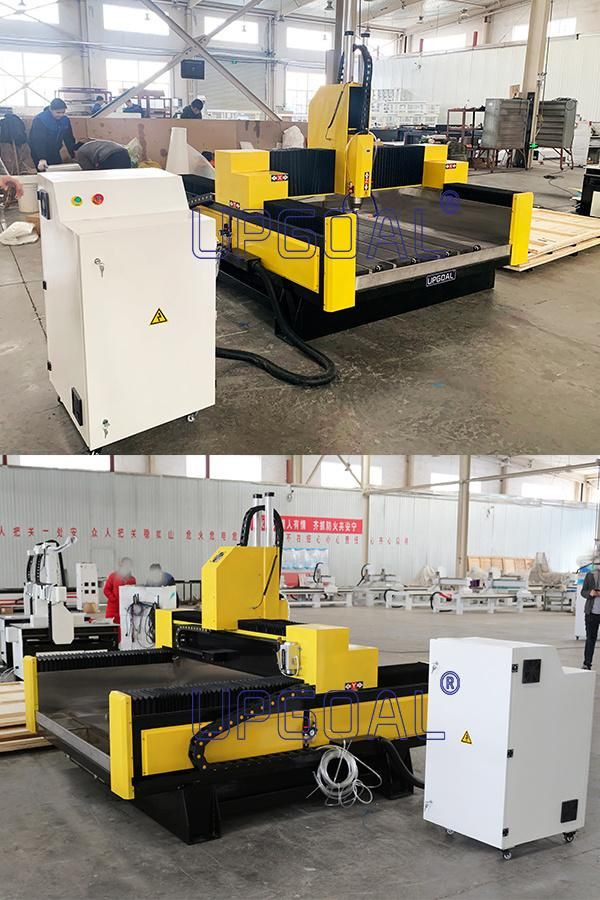

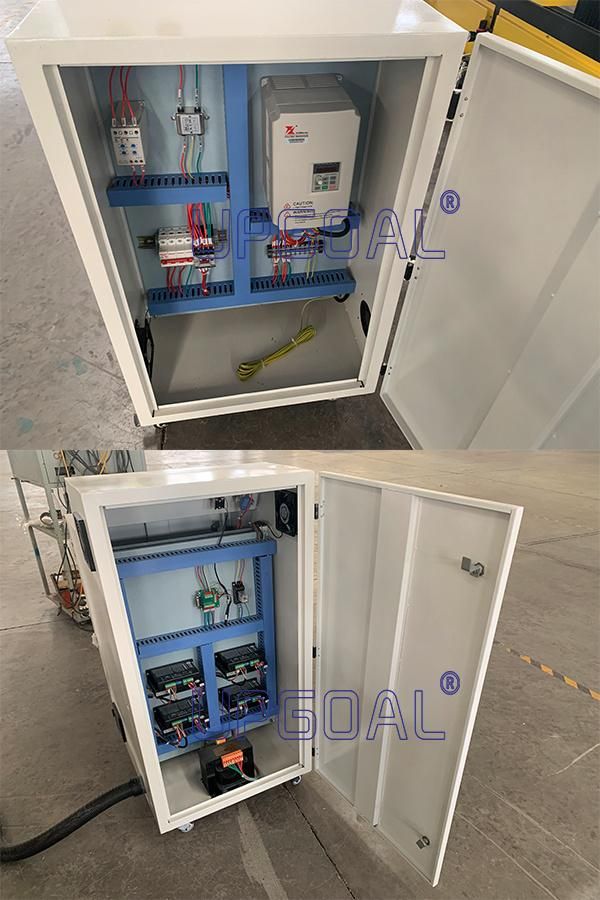

8.Independent control cabinet, keeps the computer away from dust during working.

9.Special dustproof, waterproof device, effectively keep the transmission part cleaning and rust protection, more easy maintenance.

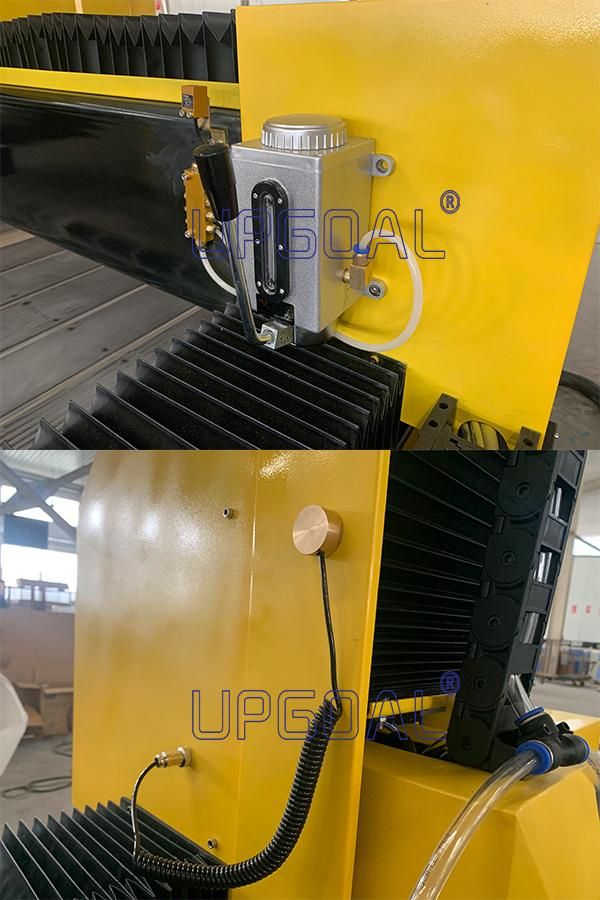

10. Semi-auto lubrication sysetem, more convenient and easy for whole machine lubrication.

11. Auto tool calibration, accurate and convenient for Z-axis 0 point setting.

12.Special several processing 0 point saving method.

13.Memory of break point and power failure,ensuring continue working after breaking point or next time processing.

14.Advanced file processing function, can timely correct faults, and good compatibility for Type3/Artcam/Mastercam/Caxa such file. Advanced three dimensional curve forcast algorithm, stable broken line, ensuring the curve moving speed & precision.

Technical Parameters

Application

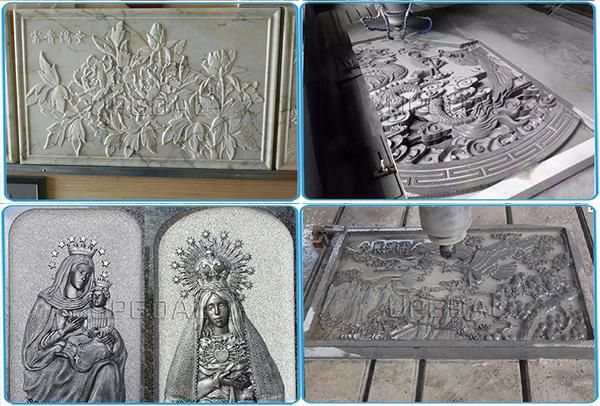

Mainly used for natural marble, granite, artificial stone, tombstone, milestone, tile, glass, bluestone,sandstone, crystal, microlite,mural, village tablet inscription, decoration skirting line,...such relief engraving, singlet line, character, flat pattern engraving, with rotary axis, can for stone cylinder,breast board, handrail, dragon columns,figure of Buddha...engraving.
