• Model NO.：Stone Cone Crusher
• Finished Surface：Outer Surface Process
• Certification：CE, ISO
• Condition：New
• Color：Based on Customer′s Needs
• Input Size：0-350mm
• Transport Package：Standard Packaging
• Specification：Capacity: 45-1200TPH
• Trademark：CHAENG
• Origin：Xinxiang City, Henan Province, China
• Production Capacity：50000 PCS , Year

Basic Info.

Model NO. Stone Cone Crusher Finished Surface Outer Surface Process Certification CE, ISO Condition New Color Based on Customer′s Needs Input Size 0-350mm Transport Package Standard Packaging Specification Capacity: 45-1200TPH Trademark CHAENG Origin Xinxiang City, Henan Province, China Production Capacity 50000 PCS / Year

Product Description

Product description

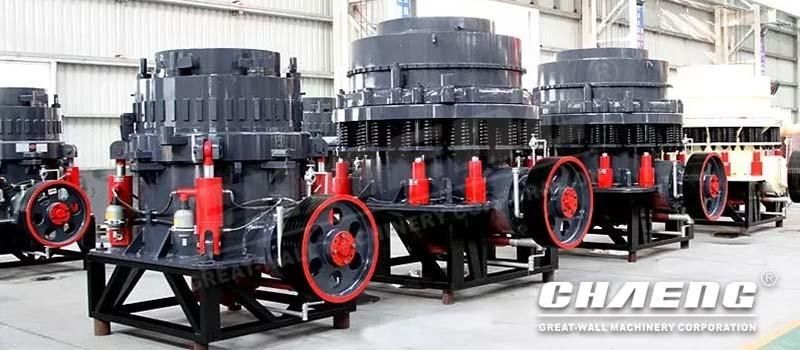

Integrating with mechanical, hydraulic and automation technologies, China Multi-Cylinde Hydraulic Stone Cone Crusher Price is a new-type cone crusher designed and manufactured by Great Wall basing on the technologies introduced from America, and it is suitable for crushing all kinds of ores and rocks with medium and above hardness. It is necessary equipment in two stage crushing and three stage crushing when producing construction sand, and is widely used in the stone production, machine-made sand production and mineral processing.

Input Size    0-350mm
Capacity    45-1200TPH

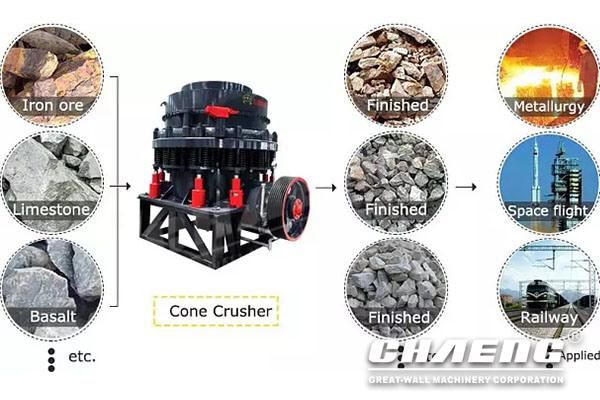

Material    Granite, diabase, basalt, pebble, limestone, dolomite, metallic ores and non-metallic ores, etc.

 Stone Cone Crusher Working Principles

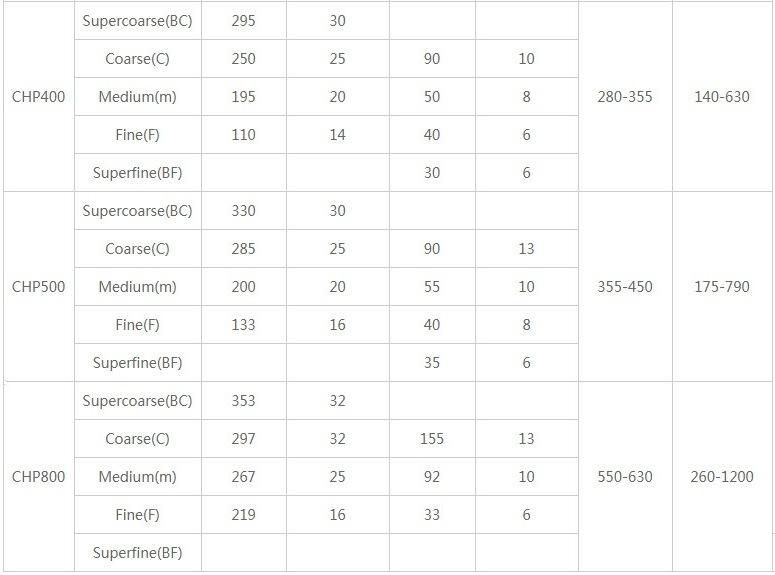

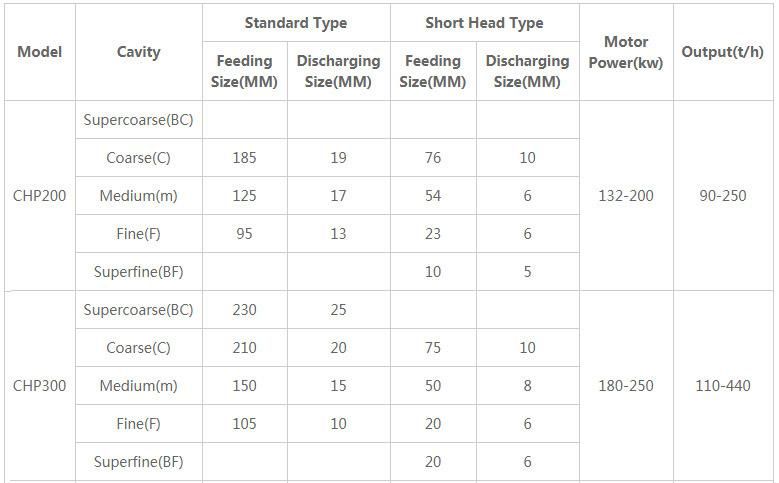

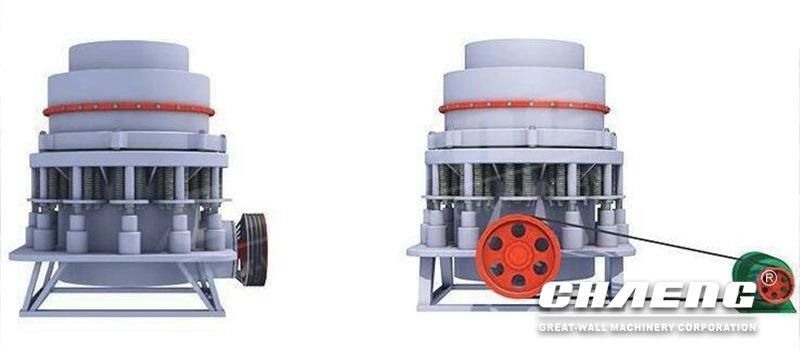

The transmission shaft is driven by the motor via the belt pulley and the triangle belt, and it drives eccentric sleeve to rotate around the main shaft. The eccentric sleeve drives the movable cone to do rotary swing movement and to make the movable cone and fixed cone sometimes be close to and sometimes go far away from the concave. The material is continually squeezed and crushed in the crushing cavity formed by the concave and the mantle. After several-time crushing, the granule is more uniform and in a cubic shape. Qualified products falls down, and the rest is crushed again.Stone Cone Crusher Technical Parameters

 China Cone Crusher Advantages

1.Good grain shape, large output;
2.Less consumption of vulnerable parts, low operating cost;
3.Hydraulic protection and hydraulic cavity cleaning with high degree of automation to reduce downtime;
4.Thin oil lubrication to improve service life;
5.It can be installed both in the plant and on the concrete foundation;
6.With multi-cylinder crushing cavity, it can produce intermediate, fine and ultra-fine proudcts by just replacing different cavities.CHAENG's Strength

1.Based on high-end and advanced equipment

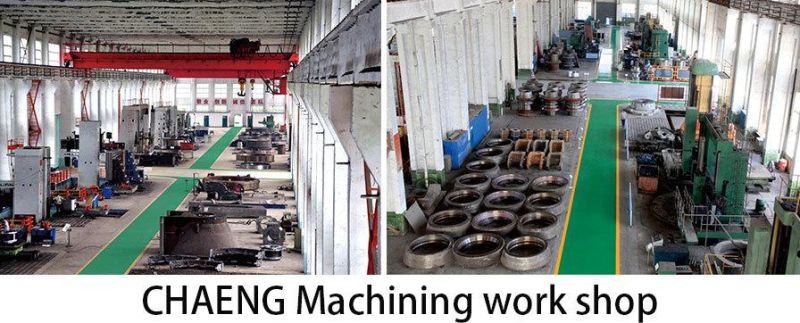

With large casting base, machining and assembling workshop, CHAENG has strong casting and processing strength. All the main engines for the turnkey project are self-made, and other supporting auxiliary machines are bought from excellent brands at home and abroad, which means that we can control the whole quality and construction period of the project.
 2.Multiple patents, controlling the core technologies

The company has a professional technical team in many fields with more than 100 people, such as technology, equipment, hydraulic, electrical and civil engineering. So we can design the whole sandstone aggregate production line independently. We stick to independent research and innovation all the time, continuously optimize product performance and improve the technological content of products. We have research center of aggregate, powder and high-performance concrete, so we can provide scientific and professional sandstone aggregate production system solutions for the customers.
CHAENG has won man honorary awards, such as "top 100 suppliers in China cement industry", "top 10 innovative enterprise in China cement industry", "high-growth private enterprise in Henan Province", "technological innovation demonstration enterprise of  energy conservation and emission reduction in Henan Province", "National high-tech enterprise" and so on.
