Granite Marble Stone Block Cutter Wire Saw Cutting Machine
Fujian Ningde Aqt Imp. & Exp. Co. Ltd- After-sales Service：7 Days 24 Hours
- Warranty：3 Years
- Type：Wire Saw Machine
- Usage：Jadestone, Concrete Curb, Granite, Marble
- Application：Stone Industry, Stone Quarry
- Source Voltage：380V
Base Info
- Model NO.：ZY-70YG-12P
- Automation：Automatic
- Cutting Ability：High Speed
- Control：PLC
- Certification：ISO, CE
- After-Sales Team：20 Professional Teams
- Customer Service：Provide 24 Hours Service
- Transport Package：by Polywood
- Specification：2500*1600*1530mm
- Trademark：Stonewine
- Origin：China
- HS Code：84641020
- Production Capacity：5000
Description

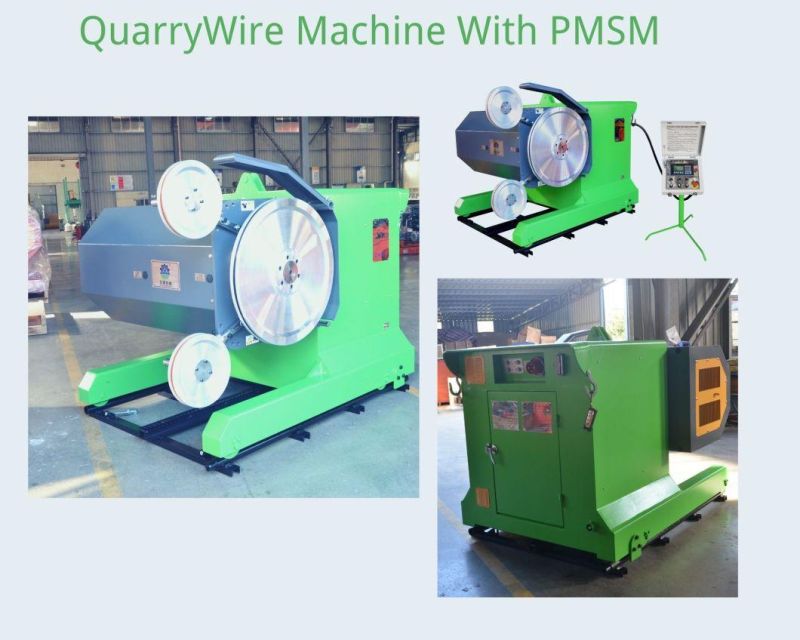

ZY-Y SERIES QUARRYING WIRE SAW MACHINE WITH PMSM PARAMETERMODELZY-70YG-12PCUTTING MATERIALGRANITEMAIN MOTOR POWER70KWFLYWHEEL DIAMETERΦ800mmWIRE SAW SPEED0-33m/sMAX.WIRE SAW LENGTH20-150 metersWALKING MOTOR POWER1.5kw(2HP)LATERAL MOVING DISTANCE500mmMAX.LATERAL CUTTING DISTANCE1900mmROTATION ANGLE360°MACHINE WALKING SPEED0-90m/hRAIL LENGTH2m*3+1m(7m)ALLOWED WORKING TEMPERATURE-15ºC~+40ºCDIMENSION2500*1600*1530mmNET WEIGHT3.5T
