• Model NO.：PC Series
• Finished Surface：Thread Process
• Certification：CE, ISO
• Condition：New
• Color：Yellow
• Certificate：ISO9001: 2000
• Guarantee：One Year Excluding Wearing Parts
• Installation：Under Our Engineer Guide
• After-Sale Service：for Whole Using Life
• Shipping：by Sea
• Model：PC Series
• Mining Object：Metallic and Non-Metallic Ore Excavator
• Delivery：by Sea
• Transport Package：Standard Container
• Specification：national standard
• Trademark：HengXing
• Origin：Zhengzhou, China
• HS Code：84303100
• Production Capacity：5-200tph

Basic Info.

Model NO. PC Series Finished Surface Thread Process Certification CE, ISO Condition New Color Yellow Certificate ISO9001: 2000 Guarantee One Year Excluding Wearing Parts Installation Under Our Engineer Guide After-Sale Service for Whole Using Life Shipping by Sea Model PC Series Mining Object Metallic and Non-Metallic Ore Excavator Delivery by Sea Transport Package Standard Container Specification national standard Trademark HengXing Origin Zhengzhou, China HS Code 84303100 Production Capacity 5-200tph

Product Description

Coal Slag Crushing Machine Hammer Crusher
Hammer crusher (hammer mill) have good quality features like simple structure, high reduction ration, high efficiency, etc.
The hammer crusher crushes through the collisions between high-speed hammer and materials, and the hammer mill(hammer crusher) have good quality features like simple structure, high reduction ration, high efficiency, etc. The PC hammer mill (hammer crusher) were suitable for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum & chemical industries.

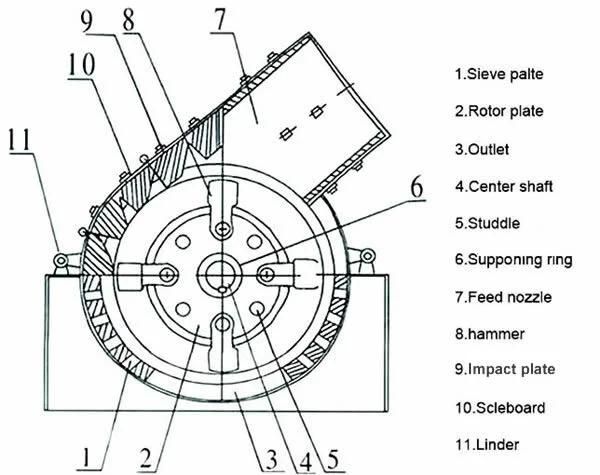

Operating principle of Hammer Crusher:
The motor drives the rotor rotated of the hammer mill at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working area of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being recrushed until they reached the required size.

We have various of hammer crusher, such asΦ 400× 400, Φ 600× 400, Φ 800× 600, Φ 800× 800, Φ 1000× 1000, Φ 1250× 800, Φ 1400× 1400, Φ 1600× 1600 etc

Hammer crusher technical parameters:

Specification Feeding size(mm) Discharging size(mm) Output(t/h) Power(kw) Weight(kg) PC400X300 ≤ 100 ≤ 10 5-10 11 800 PC600X400 ≤ 120 ≤ 15 10-25 18.8 1500 PC800X600 ≤ 120 ≤ 15 20-35 55 3100 PC1000X800 ≤ 200 ≤ 13 20-40 115 7900 PC1000X1000 ≤ 200 ≤ 15 30-80 132 8650 PC1300X1200 ≤ 250 ≤ 19 80-200 240 13600
