HLSQ-450 Monoblock Bridge Saw Granite Marble Stone Tile Cutting Machine

Fujian Province Hualong Machinery Co., Ltd.
  • Warranty：1 Year
  • Type：Stone Cutting Machine

Base Info

  • Model NO.：HLSQ-450
  • Usage：Granite, Marble
  • Application：Mineral Industry, Stone Industry
  • Automation：Automatic
  • Certification：CE
  • Condition：New

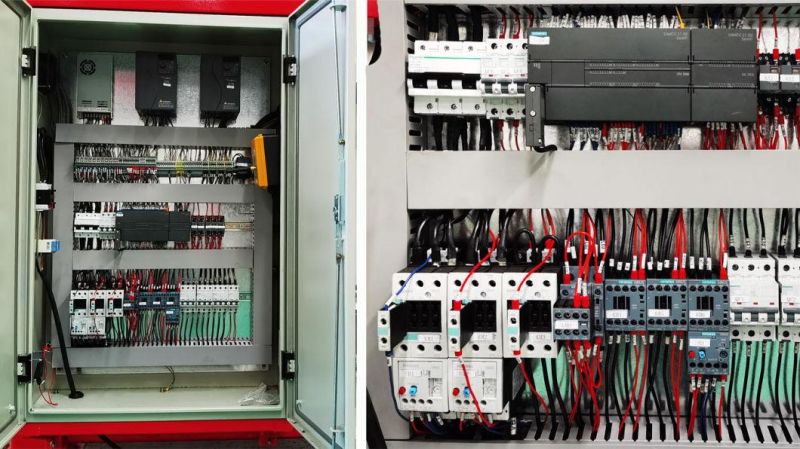

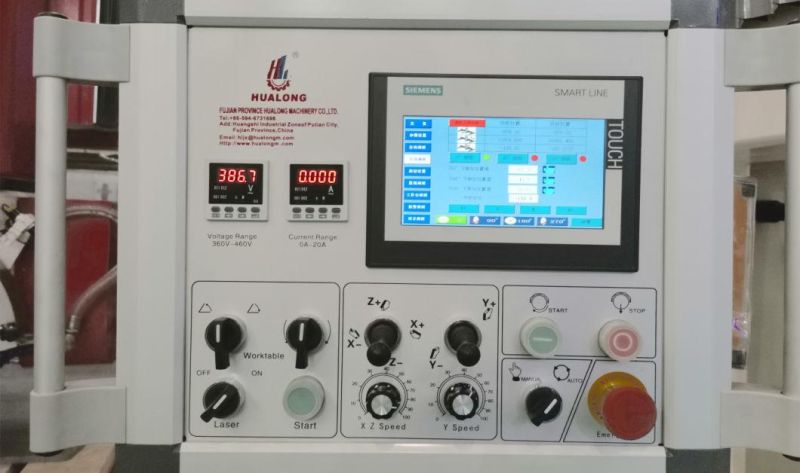

  • Control System：Siemens PLC
  • Worktable Rotation：0-360
  • Grease Lubrication：Automatic
  • Key Selling Points：Automatic
  • Blade Tilt：0-45
  • Weight：5400kg
  • Dimension(L*W*H)：5700X3260X2765mm
  • Warranty of Core Components：1 Year
  • Cutting Thickness (Max)：100mm
  • Power：21.3kw
  • Blade Diameter：400-450mm
  • Blade Rotation：+,-270
  • Worktable Tile：0-85
  • Transport Package：1) Covered by Plastic Film Wholely. 2) Packed in P
  • Trademark：Hualong
  • Origin：Fujian, China
  • Production Capacity：30 Set,Sets Per Month, High Speed
  • Package size per unit product：570.00cm * 326.00cm * 276.50cm
  • Gross weight per unit product：5400.000kg

Description

Detailed ImagesHLSQ-450 Monoblock Bridge Saw Granite Marble Stone Tile Cutting MachineHLSQ-450 Monoblock Bridge Saw Granite Marble Stone Tile Cutting MachineHLSQ-450 Monoblock Bridge Saw Granite Marble Stone Tile Cutting MachineHLSQ-450 Monoblock Bridge Saw Granite Marble Stone Tile Cutting MachineHLSQ-450 Monoblock Bridge Saw Granite Marble Stone Tile Cutting Machine
Other Advantage
 1) 25 years + experience professional on making stone machines.2) Good performance and Long life service --- Our HLSQ series bridge saw was first exported to Brazil in 2012, which is still working well now.3) The machining operation is simpler than the operation of other infrared cutting machine, automatically cut by setting parameters.4) For chamfering cutting, the blade tilt of HLSQ-450 is controled by PLC, which cutting is accurate. While the other two ways as showed below, the cutting is less accurate, not good for cutting thin slab.
 HLSQ-450 Monoblock Bridge Saw Granite Marble Stone Tile Cutting MachineHLSQ-450 Monoblock Bridge Saw Granite Marble Stone Tile Cutting Machine

Quality Fabrication Equipment

* Made with 20 years+ expertise and patents.
* Many machines available to order
* Experienced techs for all your questions
* Customization available

Pre-Sales Service

* Inquiry and consulting support.

* Technical cooperation.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
