• Model NO.：SGA-30100AHR
• Grinding Machine Type：Vibration Polishing Machine
• Grinding Method：Semi-Dry Grind
• Certification：ISO, CE
• Condition：New
• Surface Grinding Machine：Sga-30100ah
• Table Size(Wxl)：305X1020
• Max. Longitudinal Travel：1130
• Max. Distance From Spindle Center to Tab：580
• Transport Package：Plywood
• Specification：CE, ROHS
• Trademark：customer brand
• Origin：Shandong China
• HS Code：84669100
• Production Capacity：300,Per Month

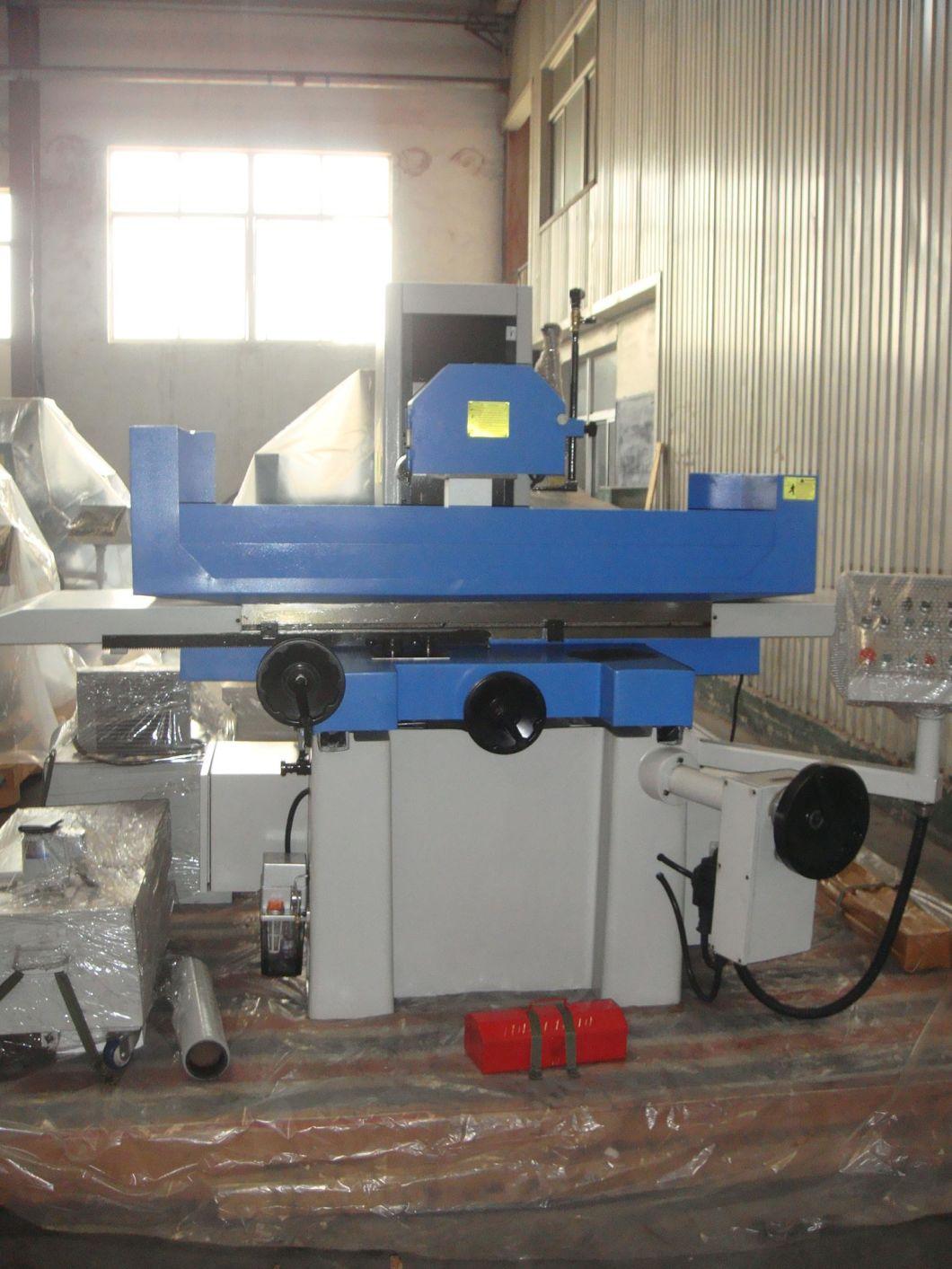

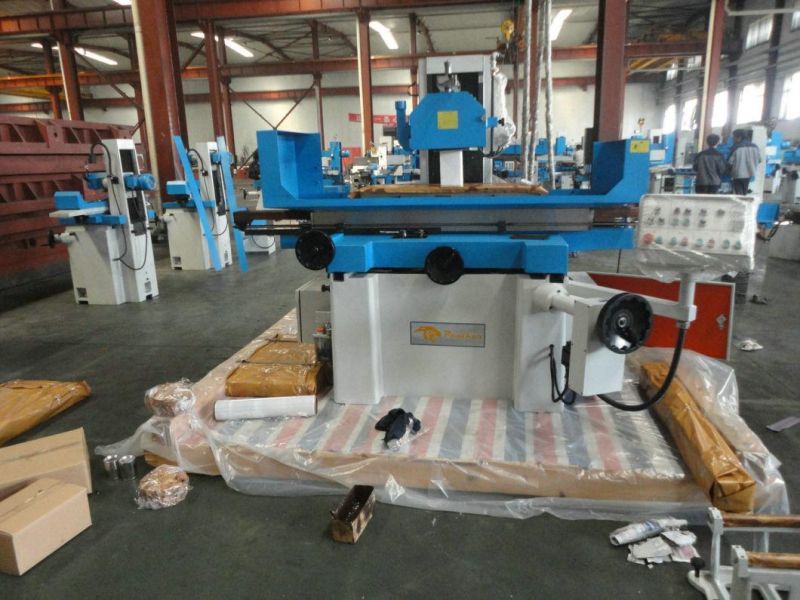

SGA saddle moving surface grinder     Item/ModelUnitSGA-3063AHSGA-30100AHSGA-4080AHSGA-40100AHSGA-3063AHRSGA-30100AHRSGA-4080AHRSGA-40100AHRSGA-3063AHDSGA-30100AHDSGA-4080AHDSGA-40100AHDtable size(WxL)mm305x635305x1020406x813406x1020max. longitudinal travelmm76511309101130max. cross travelmm340340450450max. distance from spindle center to tablemm580580580580electro magnetic chuck sizemm300x600300x1000400x800400x1000speed of table longitudinal movementm/min7-23table transverse movementauto feedmm/min0.1-8rapid speedmm/min990feed of handwheelmm/div0.02wheelhead vertical movementauto feedmm---(H/AH/AHR model) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model)rapid speedmm/min---(H/AH model) / 460 (for AHR model) 240(only for AHD model)feed of handwheelmm/div0.005grinding wheelspeedrpm1450(50Hz), 1750(60Hz)eize(ODxWxID)mm350x40x127spindle motorkw5.5hydranlic motorkw2.2cooling pump motorkw0.125elecating motorkw---(Ah model) 0.25(AHR model) 0.5(AHD model servo motor)cross feed motorkw0.04max. loading capacity of table(include chuck)kg270400500600total rated powerkw9height of machinemm1890floor space(LxW)mm2900x22004400x22003600x24004400x2400Gross weightkg2600330035004000package dimensions(LxWxH)mm2350x2220x21502950x2220x2210
