Hlsq-450 China 3 Axis Automatic Marble Granite Cutting Machine Mono Bridge Saw Machine Manufacturer
Fujian Province Hualong Machinery Co., Ltd.- Type：Automatic Mono Bridge Saw
- Usage：Ceramics, Granite, Marble
Base Info
- Model NO.：HLSQ-450
- Application：Art & Craft, Stone Industry
- Source Voltage：220V
- Automation：Automatic
- Cutting Ability：High Speed
- Control：Siemens PLC
- Certification：ISO, CE
- Color：Red and Ivory
- Guide Rail：Linear Guide
- Dimensions of Working Table：3300*2000
- Touch Screen：Siemens
- Gearing：Rack Gear
- Head Rotation：0,90,180,270 Degree
- Head Tilting：0,45 Degree
- Table Rotation：0-360 Degree
- Table Tilting：0-85 Degree
- Max. Cutting Thickness and Length：100mm,3300mm
- PLC：Siemens
- Crossbeam：Cast Iron
- Linear Guide：Hiwin

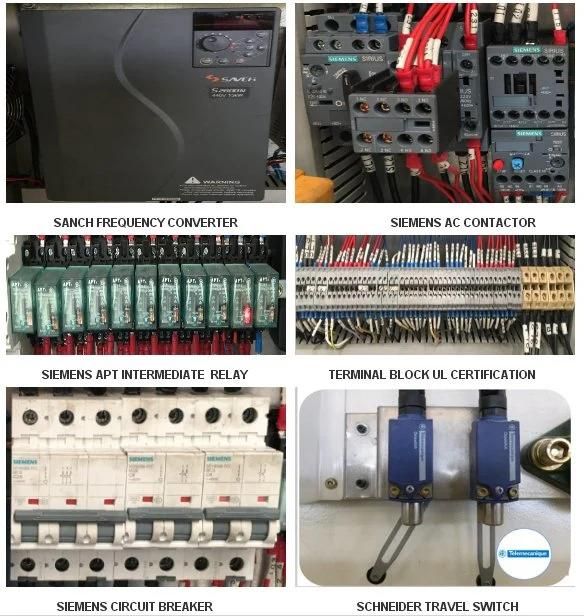

- Main Electrical Parts：Siemens and Schneider
- Structure：Mono Bridge Type
- Transport Package：Polypropylene Plastics Packing
- Specification：5700(L)*3260(W)*2765(H)
- Trademark：Hualong
- Origin：Putian, Fujian, China
- HS Code：84641010
- Production Capacity：50 Pieces,Month
- Package size per unit product：570.00cm * 326.00cm * 276.50cm
- Gross weight per unit product：5400.000kg
Description

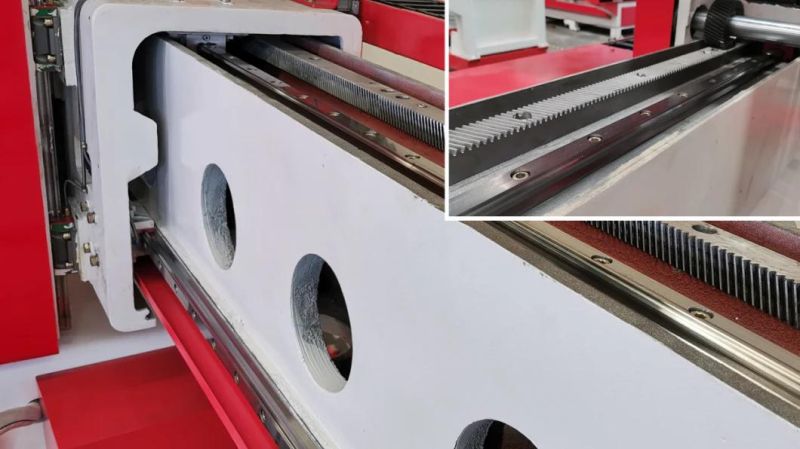

1. Linear guideway in "X, Y, Z" axis to guarantee accuracy and speed2. Electric components in international standards to be easily sourced

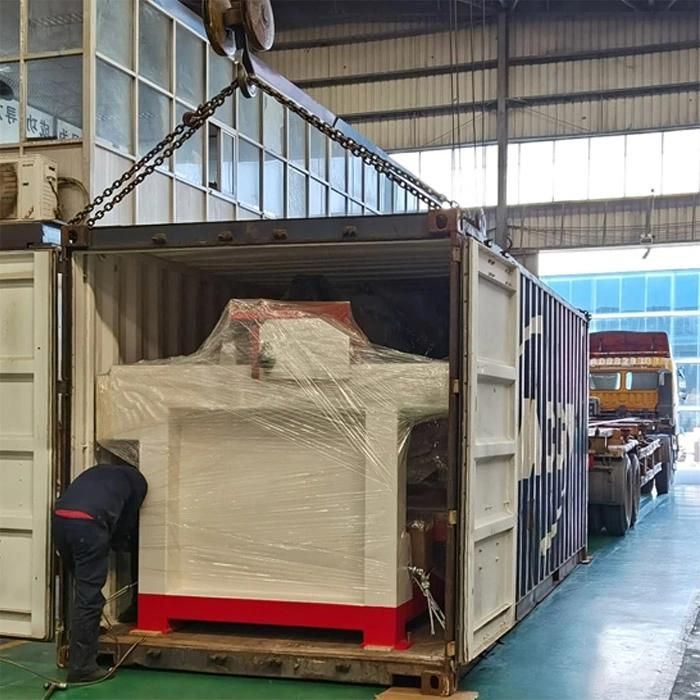

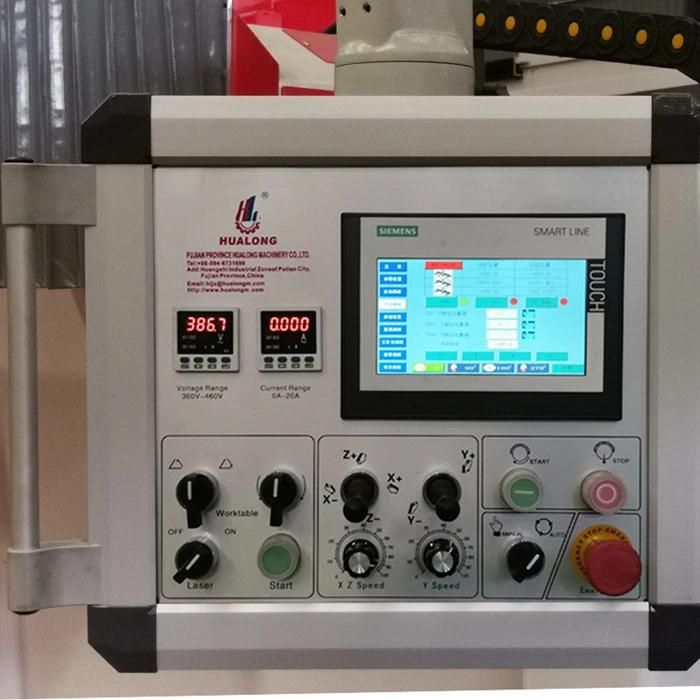

3. Full machine can be loaded in 20 GP container. Easy to load, transport and install due to its monobloc structural frame.4. SIEMENS PLC control system in 4 Languages for automatic cutting and easy operation.
5. Spindle motor variable speed by means of inverter (Optional).

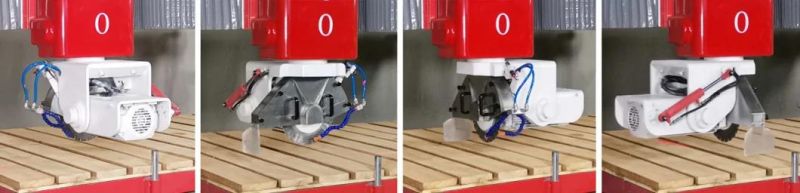

6. 0° - 90°- 180° - 270° full automatic positioning chamfering cutting
