• Model NO.：HLSQ-700
• Source Voltage：380V
• Automation：Automatic
• Cutting Ability：High Speed
• Control：PLC
• Certification：ISO, CE
• Table Rotate：90-360 Degree
• Table Tilt：0-85 Degree
• Guide Rail：Linear Guide
• Gearing：Rack Gear
• Max. Processing Dimensions：3200X2000X220mm
• Blade Diameter：400-700mm
• Working Table Dimension：3200X2000
• Power of Main Motor：18.5kw
• Water Counsumption：4 Stere,H
• Dimension of Machine：6000*5000*2800mm
• Gross Weight：6100kg
• Transport Package：Plastic Packing
• Specification：6000x5000x2800mm
• Trademark：Hualong
• Origin：Putian, Fujian, China
• HS Code：84641010
• Production Capacity：50PCS,Month
• Package size per unit product：600.00cm * 500.00cm * 280.00cm
• Gross weight per unit product：6100.000kg

Basic Info.

Model NO. HLSQ-700 Source Voltage 380V Automation Automatic Cutting Ability High Speed Control PLC Certification ISO, CE Table Rotate 90-360 Degree Table Tilt 0-85 Degree Guide Rail Linear Guide Gearing Rack Gear Max. Processing Dimensions 3200X2000X220mm Blade Diameter 400-700mm Working Table Dimension 3200X2000 Power of Main Motor 18.5kw Water Counsumption 4 Stere/H Dimension of Machine 6000*5000*2800mm Gross Weight 6100kg Transport Package Plastic Packing Specification 6000x5000x2800mm Trademark Hualong Origin Putian, Fujian, China HS Code 84641010 Production Capacity 50PCS/Month

Packaging & Delivery

Package size per unit product 600.00cm * 500.00cm * 280.00cm Gross weight per unit product 6100.000kg

Product Description

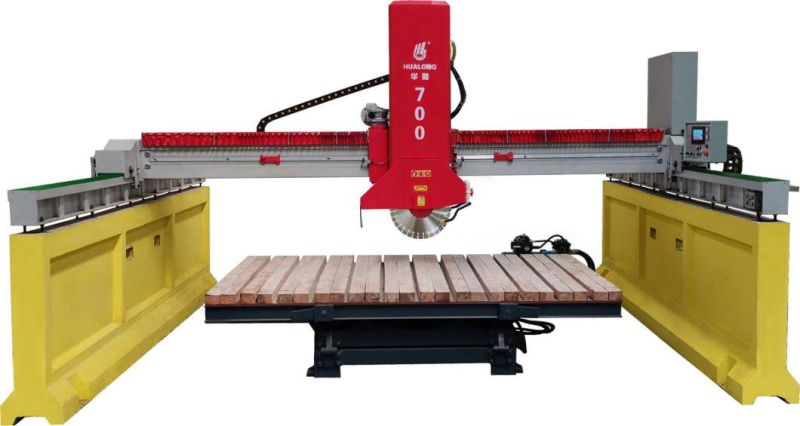

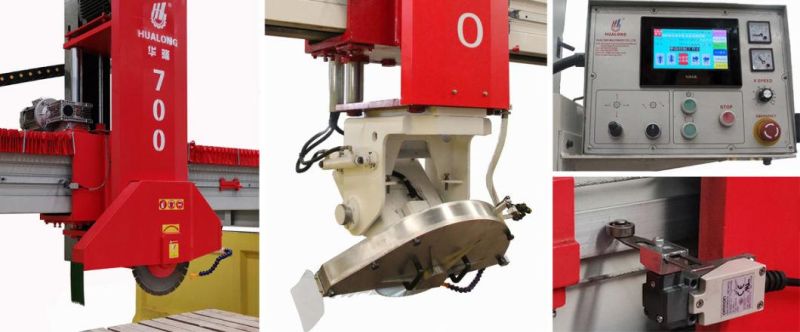

HLSQ-700 is a PLC Controlled bridge saw with interpolated axes and human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device.

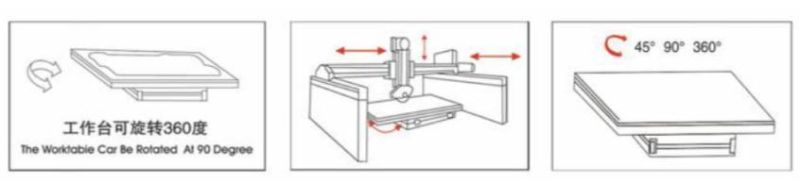

With rotating and tilting work bench, the machine can fullfill the vertical and horizontal cutting.
Head can be 45° chamfering cutting.
The main spare parts of the machine adopt high-quality materials.

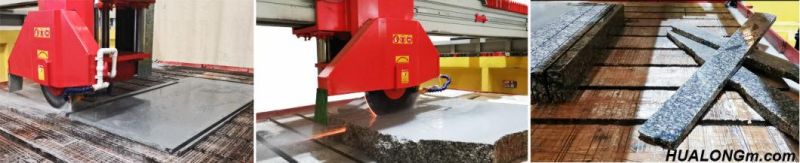

Thus the whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy-operation. Specially engineered to cut and process of marble, granite, or other natural and engineered stones.

Features:

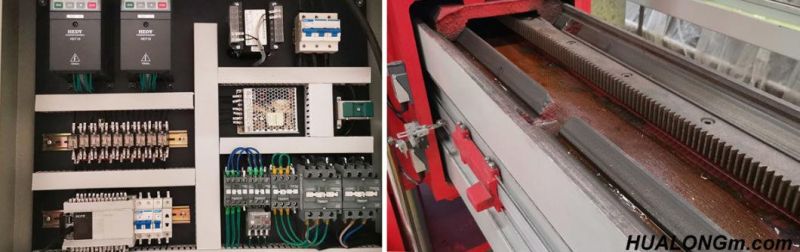

1. PLC control and intuitive interface make operation easy.
2. High precision magnetic ruler used for measuring and positioning accuracy and long life srvice.
3. Vertical saw cut with positioning aid by red laser alignment device.
4. Left-right feeding is controlled by inverter and the speed is adjusted according to stone material
5. Hydraulic lifting system equipted through 4 guide post
6. Powered 45 degree tilting miter head -- Optional
7. 0-90° or 0-360° table rotatation for optional.
8. 0-85° table tilt for easy feeding of slabs.
9. Four-guide pillars for cutting steady.
10. Complete with oil-immersed guide rail for crossbeam and side beam.

Technical Data

Name	Unit	HLSQ-700
Diameter of saw blade	mm	Ø400-Ø700
Dimension of working table	mm	3200x2000
Max. Processing size (L x W x H)	mm	3200x3200x220
Working table tilting degree	n°	0-85
Working table rotating degree	n°	0-90  or  0-360
Power of main motor	kw	18.5
Water consumption	M3/h	4
Dimensions (L x W x H)	cm	600x500x280
Gross Weight	kg	6100

Pre-Sales Service

* Inquiry and consulting support.
* Configure best machine line according customer condition
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Lifetime technology maintenance in free and spare parts supply.

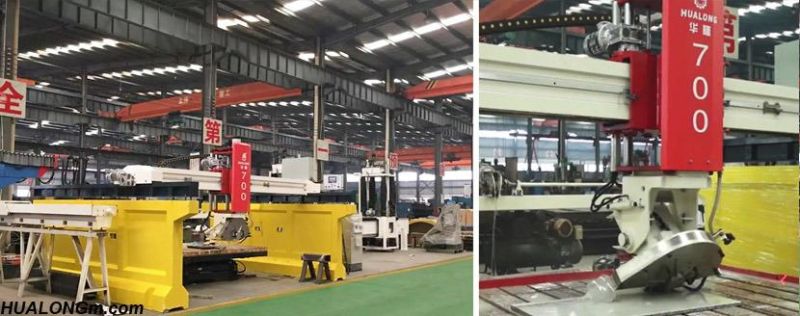

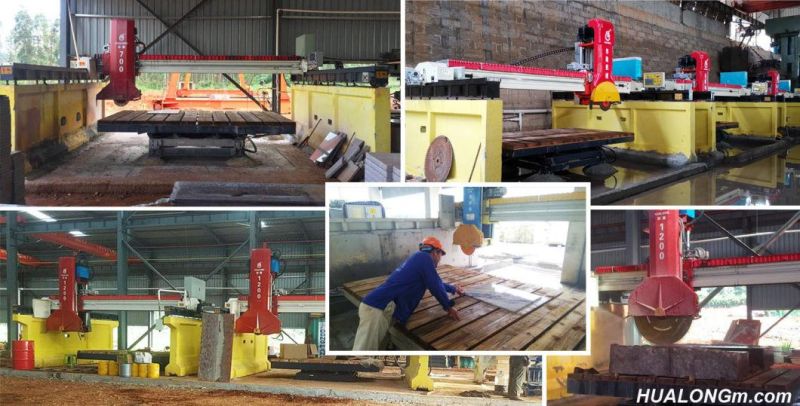

Customers' Spot

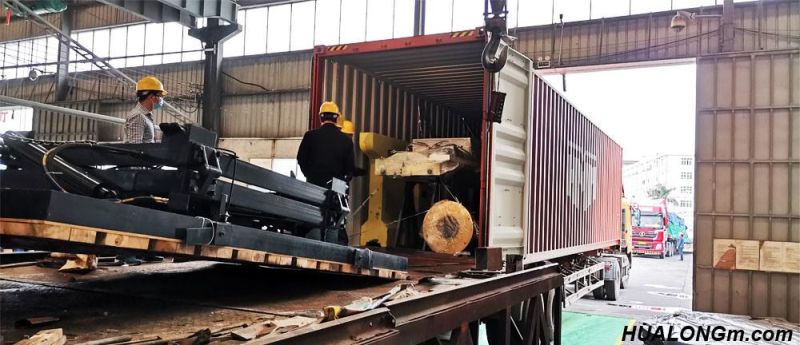

Packaging & Shipment
Packaging with plastic film /bubble outside for main machine parts, with wooden box or carton for accessories and tools.
All well fixed in container.

FAQ:
Q: Are you a manufacturer or trading company?
A: We are manufacturer, one of the leading stone machinery manufacturer in China. And we can provide one-stop shopping service.
Q: When will you ship my order ?
A: Normally 25-30 days after deposit received, If urgent, it can be negotiated further.
Q: What's the warranty time ?
A: One year.
Q: How to get the most suitable model with competitive price?
A: Please let me know: 1) what material you want to process? , what's the max size?

                                     2) the mainly functions or processed effect you need?                                     3) If possible, show us your sample pictures for reference.

     With your idea, we will recommend you the proper model with right functions and capability.
Q: How much will the Shipping cost be?
A: This is depand on the port of discharge/destination and quantity of machines you order. Should you let us know your destination and the items you want to order, we will be glad to check the cost and reply you.
