QYMJ-3500 Bridge Type Column Polishing and Cutting Machine

Yunfu City Xinda Machinery Co., Ltd.
  • Type：Bridge Column Cutting Machine
  • Usage：Fire Brick, Red Brick, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
  • Application：Machinery & Hardware, Art & Craft, Construction, Stone Industry
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：High Speed

Base Info

  • Model NO.：QYMJ-3500
  • Control：PLC
  • Certification：ISO, CE
  • Conditiaon：New
  • Container Type：20GP(DC)
  • Transport Package：by Film Package
  • Trademark：XINDA
  • Origin：Yunfu City, China
  • HS Code：84641090
  • Production Capacity：800

Description

Basic Info.

Model NO. QYMJ-3500 Control PLC Certification ISO, CE Conditiaon New Container Type 20GP(DC) Transport Package by Film Package Trademark XINDA Origin Yunfu City, China HS Code 84641090 Production Capacity 800

Product Description

 Function:The machine is designed to process column base&cup, solid columns, Roman column, tapered column and arc slabs.

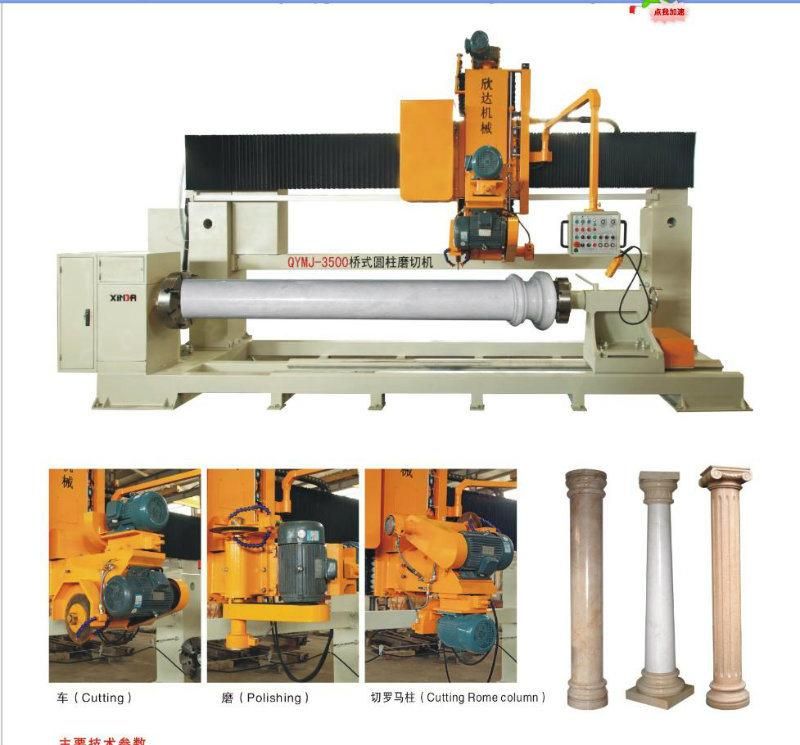

QYMJ-3500 Bridge Type Column Polishing and Cutting Machine

 Brief introduction:1,this machine is controlled by PLC system. AC contactor and breaker adopt Schneider brand. Inverter adopt Toshiba brand.2,Cutter head moves left and right by gear and rack transmission,is controlled by inverter3,Cutter head goes up and down by screw rod transmission.4,Platform of rotation is driven by variable frequency motor with belt transmission. Revolving speed can be adjusted by inverter according to the hardness of the stone.5,This machine takes advantage of Optical Fiber Amplifier to receive the signal copying the shape of template you want to process.
Technical parameters:
ParametersQYMJ3500
Processing arc slabs specification(Φ400-Φ1100)×3500mm
Processing solid column specification(Φ≤600)×3500mm
Main Motor Power11KW
Water Consumption4m³/hour
Overall Dimension6150×1650×3600mm
Total Power22.37KW
Total Weight6.5T

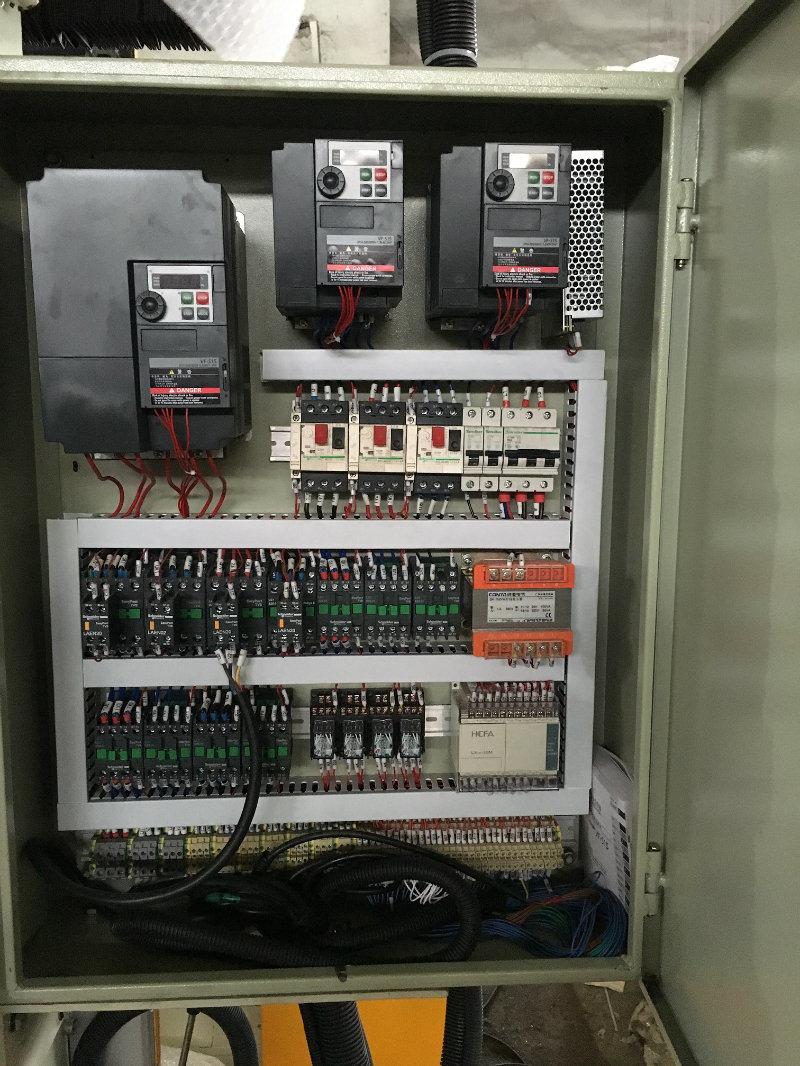

Electric Cabinet& Operation Panel Photos :
QYMJ-3500 Bridge Type Column Polishing and Cutting Machine





 Exhibition:QYMJ-3500 Bridge Type Column Polishing and Cutting MachineFAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before shipment
2) Delivery time:
The machine can be shipped within 15 workdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical support 24 hour on line.
