QYJ-3500 Bridge Type Column Cutting Machine

Yunfu City Xinda Machinery Co., Ltd.
  • Type：Bridge Column Cutting Machine
  • Usage：Fire Brick, Red Brick, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
  • Application：Machinery & Hardware, Art & Craft, Construction, Stone Industry
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：High Speed

Base Info

  • Model NO.：QYJ-3500
  • Control：PLC
  • Certification：ISO, CE
  • Conditiaon：New
  • Container Type：20GP(DC)
  • Transport Package：by Film Package
  • Trademark：XINDA
  • Origin：Yunfu City, China
  • HS Code：84641090
  • Production Capacity：500

Description

Basic Info.

Model NO. QYJ-3500 Control PLC Certification ISO, CE Conditiaon New Container Type 20GP(DC) Transport Package by Film Package Trademark XINDA Origin Yunfu City, China HS Code 84641090 Production Capacity 500

Product Description

Function: this machine is used for processing column base, column cap, and single(double) solid column and tapered column.

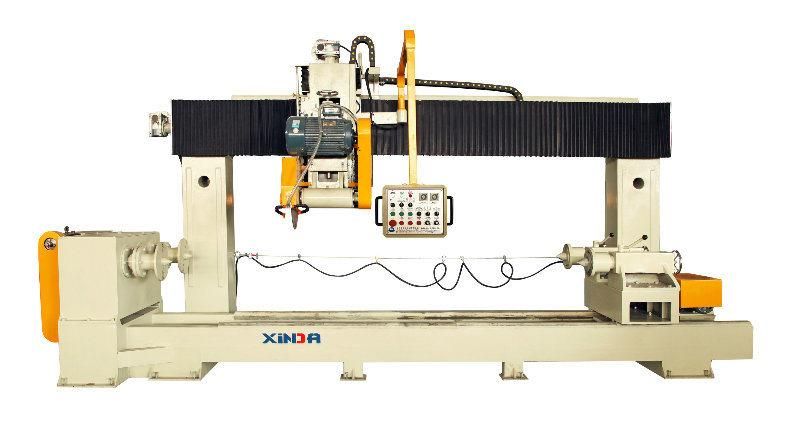

QYJ-3500 Bridge Type Column Cutting Machine
 Brief introduction:1,this machine is controlled by PLC system. AC contactor and breaker adopt Schneider brand. Inverter adopt Toshiba brand.2,Cutter head moves left and right by gear and rack transmission,is controlled by inverter3,Cutter head goes up and down by screw rod transmission.4,Platform of rotation is driven by variable frequency motor with belt transmission. Revolving speed can be adjusted by inverter according to the hardness of the stone.5,This machine takes advantage of Optical Fiber Amplifier to receive the signal copying the shape of template you want to process.
Technical parameters:
ParametersQYJ3500
Processing single column specification(Φ≤600)×3500mm
Processing single column specification(Φ≤400)×3500mm
Main Motor Power11KW
Water Consumption4m³/hour
Overall Dimension5700×1600×2500mm
Total Power21KW
Total Weight5.8T





 Exhibition:QYJ-3500 Bridge Type Column Cutting MachineFAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before loading the machine to container
2) Delivery time:
This machine can be shipped within 15 weekdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical Support 24 hour on line.
