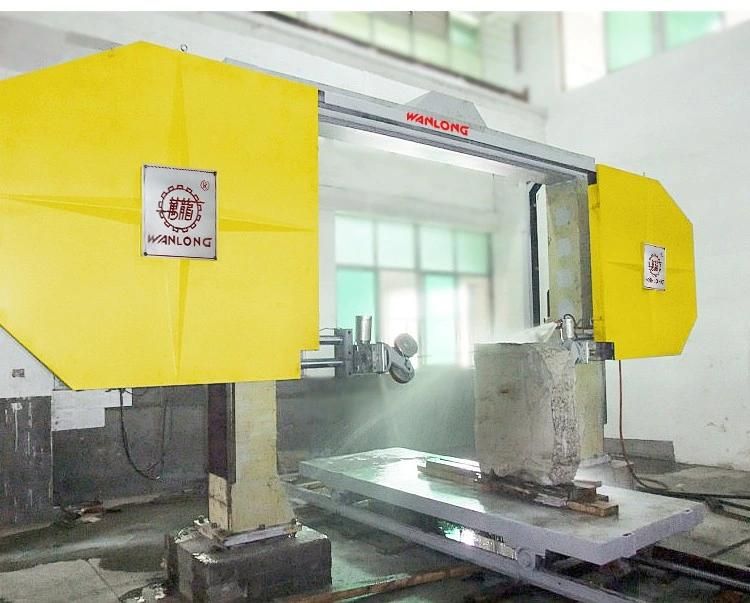

Good Quality Diamond Wire Block Splitting Dressing Stone Machine
Fujian Wanlong Diamond Tool Co., Ltd.- Type：CNC Cutting Machine
- Usage：Ceramics, Glass, Fire Brick, Red Brick, Cement Brick, Concrete Curb, Granite, Marble, Quarry Wire Saw Machine
- Application：Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry, Small CNC Granite Wire Saw
- Source Voltage：220V,380V,415V, Available Upon Request
- Automation：Automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：CZSJ-2000
- Control：CNC
- Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, Wire Saw Cutting Machine
- Product Name：Stone Cutting Wire Saw Machine
- Main Motor Power：11kw
- After Sales Service Provide：Engineer Available Service Machinery Overseas
- Warranty：12 Months
- Max. Processing Size：3500X2000X2000mm
- Water Consumption：6m3,H
- Approximate Weight：6 Tons
- Quality：European Standard
- Transport Package：Seaworthy Wooden Case for Auto Cutting Machine
- Specification：10000x6065x3915mm
- Trademark：Wanlong
- Origin：Fujian, China
- HS Code：84641000
- Production Capacity：5000sets Per Year
Description
Basic Info.
Model NO. CZSJ-2000 Control CNC Certification API, CCC, UL, SONCAP, GOST, ISO, CE, Wire Saw Cutting Machine Product Name Stone Cutting Wire Saw Machine Main Motor Power 11kw After Sales Service Provide Engineer Available Service Machinery Overseas Warranty 12 Months Max. Processing Size 3500X2000X2000mm Water Consumption 6m3/H Approximate Weight 6 Tons Quality European Standard Transport Package Seaworthy Wooden Case for Auto Cutting Machine Specification 10000x6065x3915mm Trademark Wanlong Origin Fujian, China HS Code 84641000 Production Capacity 5000sets Per YearProduct Description
Machine Feature
a) Gantry structure with wide crossbeam, large size of block cutting available.
b) Independent guide rails on the column make the flywheels move up and down smoothly.

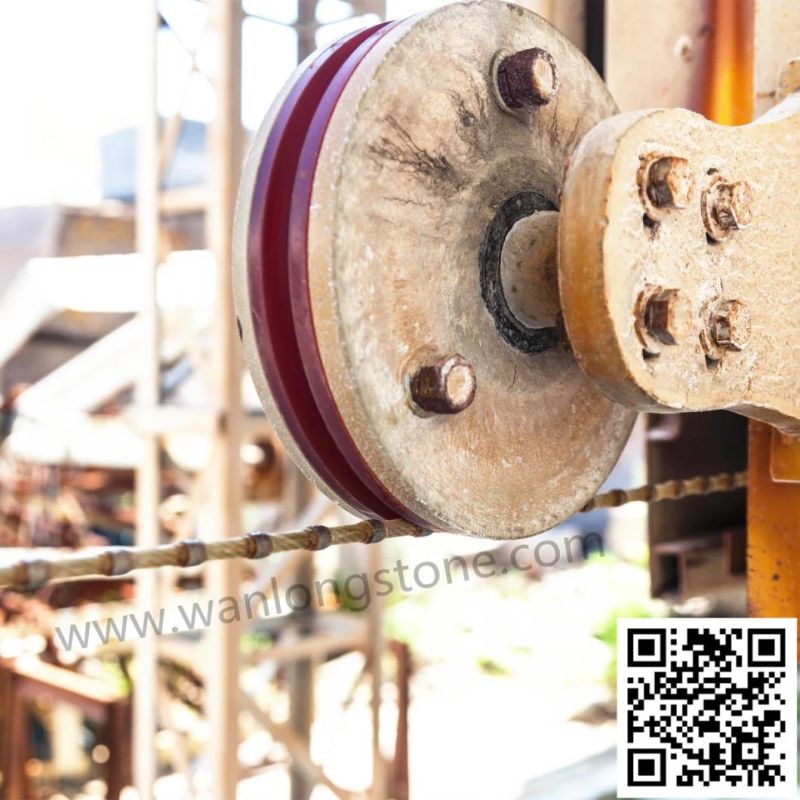

c) Flywheels work stably that improves the service lifetime of the diamond wire saw.
d) Stable and constant stretch via hydraulic system enhances the cutting accuracy.
e)Guide wheel adopts a four-layer sealed protection system to greatly improve the machining precision.
f) Electrical parts adopt name brand to ensure the stability and reliability.

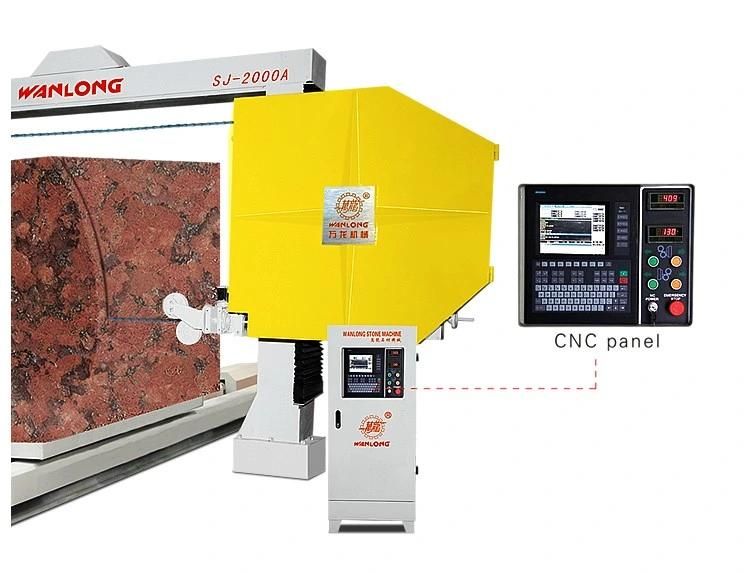

g) Friendly human-machine interface and easy operation.
h) CE certificate
Technical Parameter
| CZSJ-2000 | |
| Diameter of wire saw (mm) | 8.6-10.8 |
| Wire length | 18m |
| Main motor power(kw) | 11 |
| Gross power (kw) | 17.6 |
| Water consumption (cbm/h) | 6 |
| Max. cutting size (LxWxH/mm) | 4000x2000x2000 |
| Worktable size(mm) | 2000x2000 |
| Overall dimension (LxWxH/mm) | 8255x6065x3915 |
| Total weight (kg) | 8,500 |
