• Model NO.：HQ700
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max. Cut Size (Lxw)：3200X2000 mm
• Max. Cut Thick：230 mm
• Table Tilting：0-85°
• Table Rotation：0-360°
• Blade Tilting：0-45°
• Max. Blade Size：700 mm
• Transport Package：Plastic Packing
• Specification：Dimention: 6 x 5.8 x 3.5 m
• Trademark：AGA
• Origin：Xiamen, Fujian, China
• HS Code：84641010
• Production Capacity：100sets,Month

Basic Info.

Model NO. HQ700 Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Cut Size (Lxw) 3200X2000 mm Max. Cut Thick 230 mm Table Tilting 0-85° Table Rotation 0-360° Blade Tilting 0-45° Max. Blade Size 700 mm Transport Package Plastic Packing Specification Dimention: 6 x 5.8 x 3.5 m Trademark AGA Origin Xiamen, Fujian, China HS Code 84641010 Production Capacity 100sets/Month

Product Description

Automatic Stone Cutting Machine for Granite&Marble (HQ700)
Model NO. : HQ400/600/700

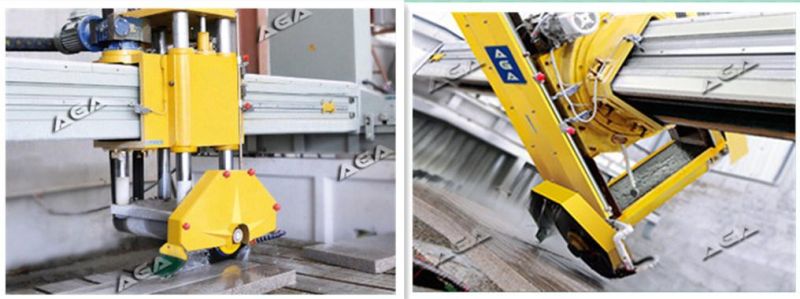

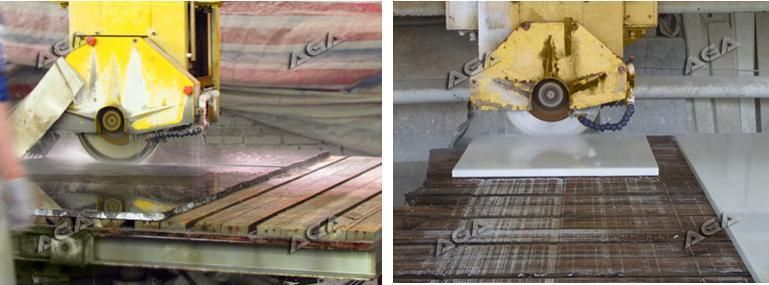

- Bridge saw cutting machine for marble granite stones. It is applicable on cutting and trimming slab, countertop, steps, etc.

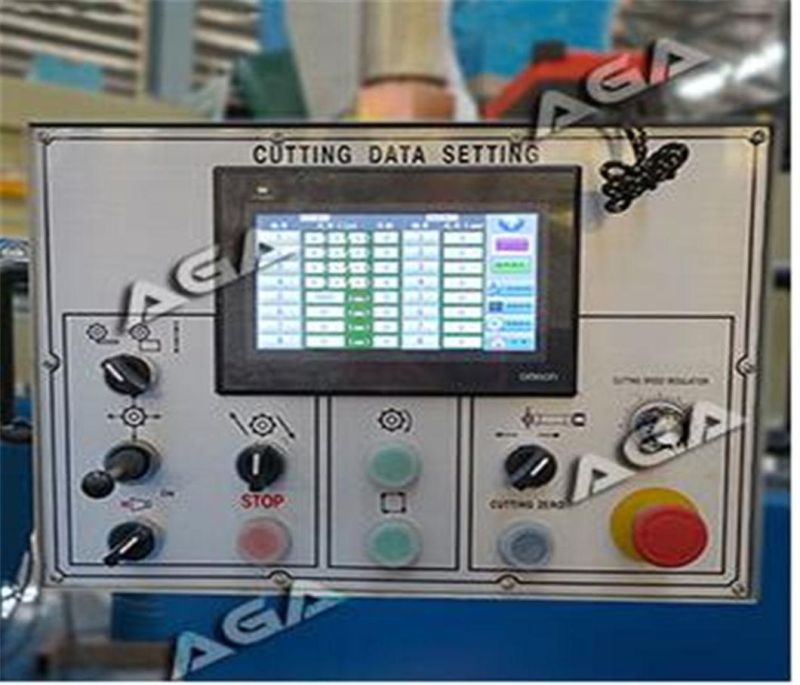

- The bridge saw works by industrial computer with programs for automatic cut, and also capable of manual operation. All the operations are achieved from the touch screen panel.

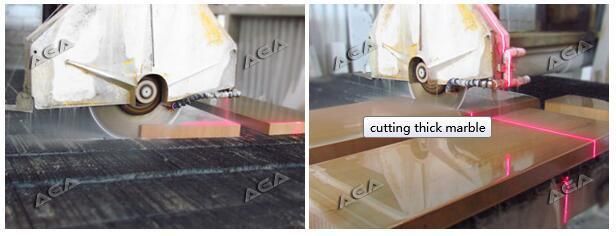

- It is able to cut 3.2m length and 2 m width with laser guide sensor for cutting guide.

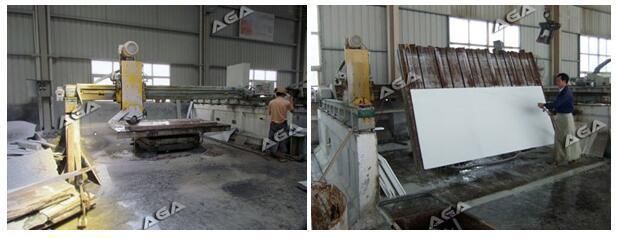

- The table tilts up to 85 for easy load of big slabs and also turns 360 degree to change the cutting direction.

Advantage
1. Long brigde structure for cutting big slab.
2. Tilting table for easy load of big slab.
3. Automatic cut by program on PLC system.
4. Precise movements on X, Y, Z axis ensuring cutting accuracy +/-0.2mm.

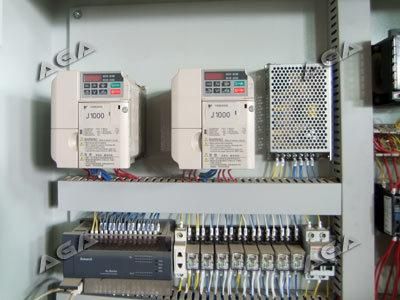

5. Electric parts from Japan for stability and long service time.
6. Main parts made of cast iron for heavy duty work and stable performance.

Feature






Specification:

Modle		HQ400	HQ00	HQ700
Max. cut size ( L*W )	mm	3200 x 2000	3200 x 2000	3200 x 2000
Max. cut thick	mm	80	180	230
Table tilting	mm	0-85	0-85	0-85
Table size ( L*W )	°	3200 x 2000	3200 x 2000	3200 x 2000
Table rotation	°	90	90/360	360
Max. blade size	mm	Φ400	Φ600	Φ700
Spindle motor	Kw	15	15	18.5
Dimention ( L*W*H )	m	6 x 4.8 x 2.9	6 x 4.8 x 3	6 x 5.8 x 3.5

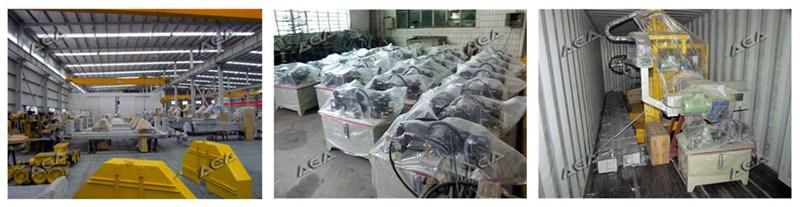

Packing

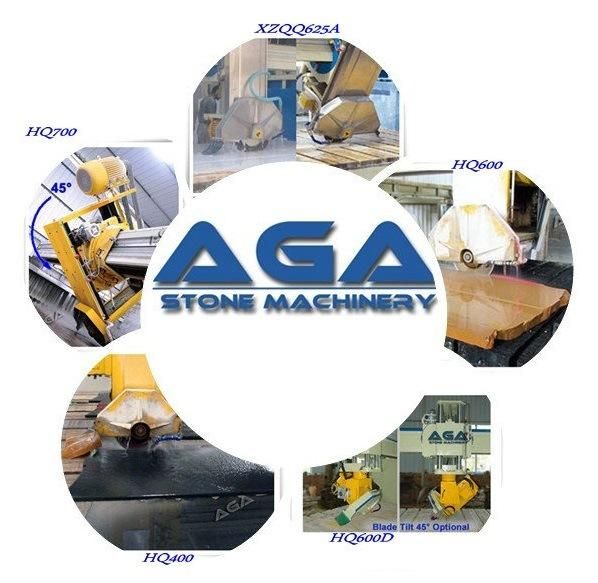

Related bridge saw

Keywords:
Edge Cutting Machine, Edge Bridge Saw, Stone Cutting Machine, Countertop Worktop Kitchen top Edge Cutting Machine

Our guarantee & after sale service
AGA insists on equipments high quality and advanced technology to assist customers in their pursuit of a true competitive advance.
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) When receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.


About us:

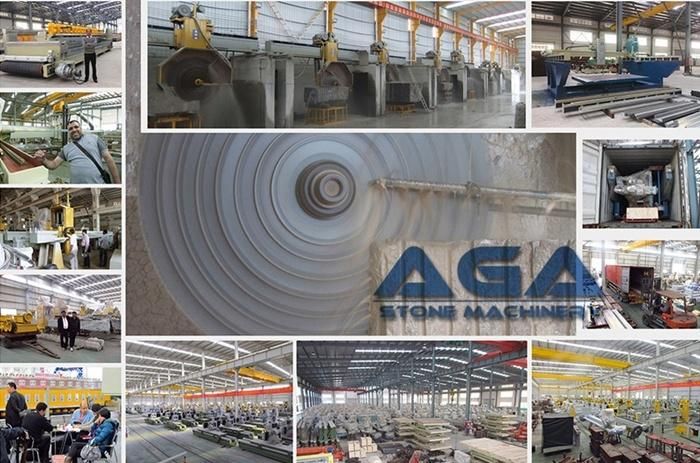

AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. The products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. The equipments have been successfully exported to world stone market in USA, Canada, Europe, MID east, Egypt, India, etc.



AGA understands that machinery creates value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers in their pursuit of a true competitive advantage. Our philosophy is all about professional entrepreneurship and perfectly serving our clients and the mission is to help customers because by choosing us you are giving us a chance to make your machine more productive that also make your products unrivaled in the competitive market and we are happy to do that professionally and passionately.
