• Model NO.：BD3020
• Certification：CE, ISO, GOST, SONCAP, UL, CCC, API
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stone Industry
• Customized：Customized
• Working Table：Aluminum T-Slot Table Protected with PVC
• X/Y/Z Axis Working Area：3000*2000*330mm
• Spindle Motor Power：5.5kw Water Cooled
• Cooling System：Water Circlation System
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：3000kg
• Trademark：Boiro
• Origin：China
• HS Code：8464909000
• Production Capacity：300,Month

Basic Info.

Model NO. BD3020 Certification CE, ISO, GOST, SONCAP, UL, CCC, API Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stone Industry Customized Customized Working Table Aluminum T-Slot Table Protected with PVC X/Y/Z Axis Working Area 3000*2000*330mm Spindle Motor Power 5.5kw Water Cooled Cooling System Water Circlation System Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 3000kg Trademark Boiro Origin China HS Code 8464909000 Production Capacity 300/Month

Product Description

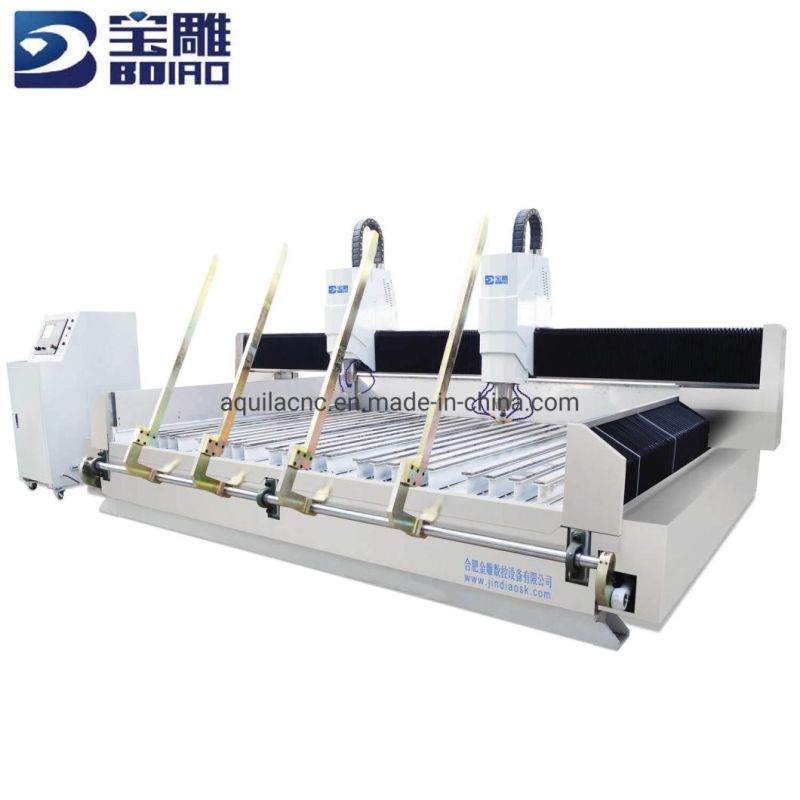

BD3020-H Flip Table Stone CNC Router Machine
Keywords:15 years experience of production
                   ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                   Three Brand: Mars, Golden Eagle,Borio



Description:
BD3020-H Flip Table Stone CNC Router Machine is BOIRO featured machine widely used in stone processing industry,tombstone processing industry ,mold processing industry,all kinds of art relief,decoration industry,ceramic processing,advertising industry.BOIRO design it for many years, now popular in the market, it's economic machining center of stone cutting machine.

Functions:

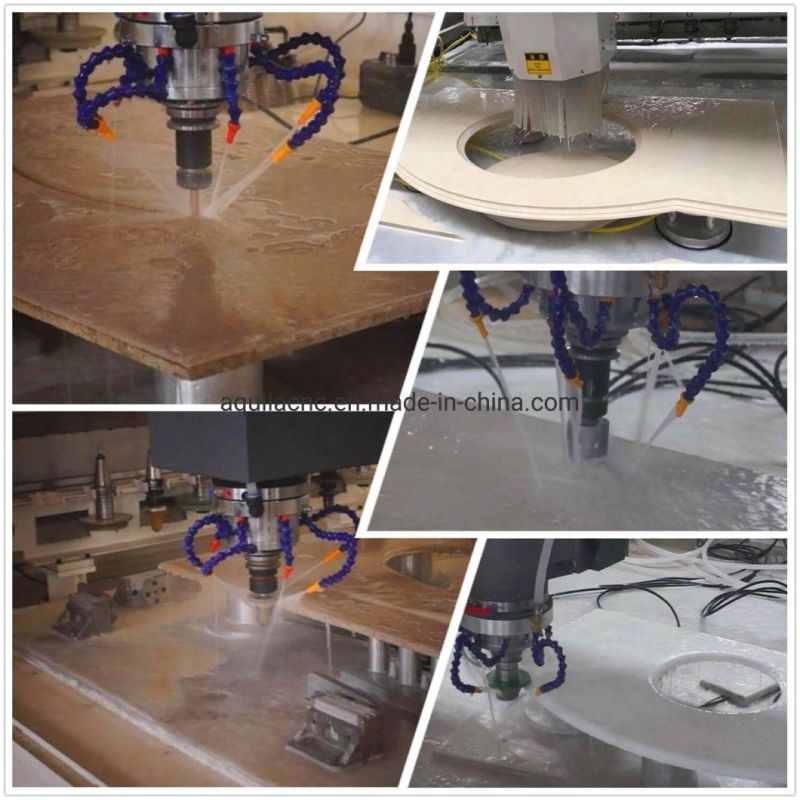

The functions of this machine include 3D relief or 2D sculpture,cutting,chamfering,drilling,etc..


Applicable Materials:
Marble,jade,granite,tombstones,milestones,ceramic tiles,glass,bluestones,etc..


Application Scope:
Widely used in stone processing indusrty,tombstone processing industry,mold processing industry,all kings of art relief,decoration industry,ceramic processing,advertising industry;be applied for the 3D relief of marble,jade,granite,tombstones,milestones,ceramic tiles,glass,bluestone,etc.,or 2D sculpture,cutting,chamfering,drilling,etc..


Parameters:

Model	BD3020-H Flip Table Stone CNC Router Machine(Other sizes can be customize as your request)
Machine Structure	Thick steel welded,w/aging treatment
Working Table	Aluminum T-slot table protected with PVC
Water Sink/Tank	Powder-painting(Stainless steel is optional)
X/Y/Z Axis Working Area	3000*2000*330mm
Spindle Motor Power	5.5KW water cooled
Spindle Rotational Speed	Adjustable 0-24000 rpm/min
Control System	NK260
Cooling System	Water Circlation System
Guide Rail	Taiwan Imported Linear rail
Drive System	X/Y axis helical rack & pinion,Z axis Taiwan ball screw
Drive Motor	Stepper Motor(Servo motor is optional)
Inverter	Fuling/Zoncn
Max. Traveling Speed	25m/min
Max. Working Speed	15m/min
Resolution	0.01mm
Dictate Format	G-Code/HPGL
Working Voltage	AC380V 3PH 50Hz
Remark	Hydraulic flip material

Accessories:

Performance Features:
1.Thick steel tube welded body structure, with aging treatment, ensure no deformation, high rigidity, good stability.
2.Famous brand big torque motor, low noise, large power, high efficiency.
3.Adopt imported square linear guide rail, high speed, high precision, long life.
4.Z axis adopts high precision German ball screw drive, ensure accuracy; Y axis adopts high precision gear rack drive, fast speed, big strength.
5.Reasonable dustproof and waterproof design, fully protect the machine transmission parts.
6.Good compatibility, cam be compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JD Paint/ Ucancam, etc..

Samples:


Pack and delivery:


Warranty Information:
1.Warranty and Service:
Guarantee:12 months for the whole machine.
Within 12 months under normal use and maintenance, if something is wrong with machine, you will get spare part for free.
Out of 12 months, you will get spare part at cost price.
Technical support: You will also get technical support and service all the lifetime.
(1).Technical support by phone, email or Whatsapp/Skype around the clock.
(2).Friendly manual and operation video online.
(3).Engineer available to service machinery overseas.
2.After sales Services:
(1).Normal machine is properly adjusted before dispatch. You will be able to use the machines immediately.
(2).You will be able to get free training advice towards our machine in our factory.
(3).You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
3.Quality control:
(1).Skilled and Strict Quality Inspection Team is available during the material purchasing and production procedure according to ISO 9001:2015.
(2).All finished machine we shipped out are 100% strictly tested by our QC department and engineering department.

FAQ Before Ordering:
Q 1. I have no idea which machine can meet my need,what should I do?
A: Please tell the what's material you want to working on ?
     What's the MAX size of these material ?( length ? Width ? Thickness ?)
     Then I will recommend the most suitable machine for you.

Q 2. I do not know how to handling CNC Router,what should I do?
A: We will supply you a training video and English handbook to teach you how to operate.Or we will welcome you to arrive China to field-based learning .

Q 3. If my machine has some problems in the warranty period,what should I do?
A: If the machine part broken within warrantry time,we will send new part to you for free.

Q 4.How about your after-sales service ?
A: Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock. And we can arrange technician go to your company to solve problem if neeeded.

Similar products:

 Our company:Our company is 15 years professional manufacturers of panel furniture production line equipment, CNC cutting machine, five surface drilling, PTP machine, CNC machining center, wood carving machine, stone carving machine, jade carving machine, three-dimensional carving machine, mold machine.

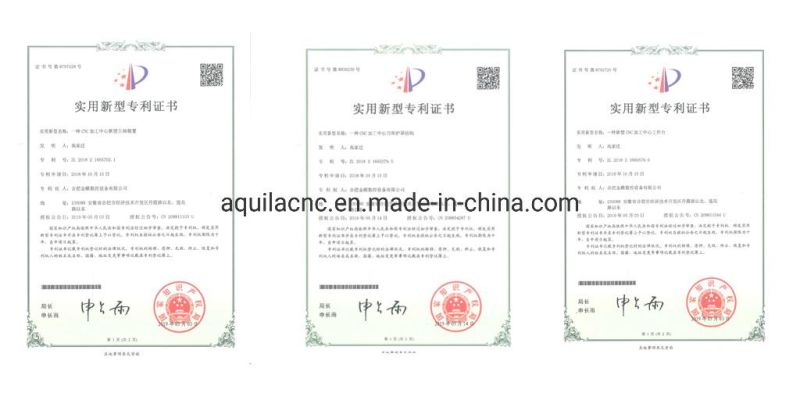

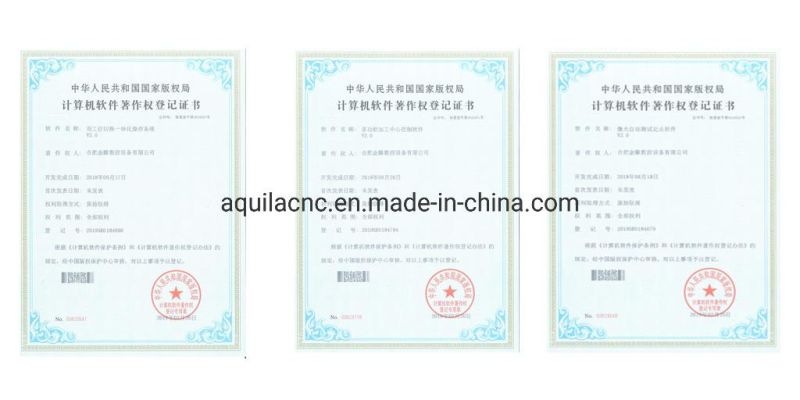

Our certifications:


Why choose Hefei Aquila CNC Equipment Co., Ltd?
1.Our company has 15 years experience of production, and is a set research and development, manufacturing, sales,and has the national certification of  "High-tech enterprises."
2.With over 15 years experience and dozens of national patents, our company has passed the ISO9001:2008 Quality Management System and CE Certificate, and is also entitled as the AAA Level Enterprise which Honors Contract and Keeps Promise.
3.We have the professional R&D team and quality control system, to provide you with the most valuable products and services.
4. Our sales& service network has covered all dometic major cities and overseas markets, such as the USA, European, Southeast Asia, Middle East etc.Let you have the most perfect after-sales service.

Our Services:
1. Convenient: 24th Hours sales/After-sales Service online or on the phone.
2. Quality Assurance: We will discuss with you and supply you the best quality comfortable to your market.
3. Quick delivery: Time is money, we promise we always will deliver the goods quicker than others.
4. According to customers' drawing,customized specifications are welcomed.
5. Low MOQ,small orders can be accepted.

We are searching distributors all over the world. If you have any demands, welcome to contact us and visit our factory.
