Bestlink Factory Price Waste Stone Recycle Machine for Press Granite/Marble
Xiamen Bestlink Factory Co., Ltd.- Type：Hydraulic Cutting Machine
- Usage：Fire Brick, Red Brick, Cement Brick, Concrete Curb, Granite, Marble
- Application：Art & Craft, Construction, Mineral Industry, Stone Industry
- Source Voltage：380V
- Automation：Manual
- Cutting Ability：Medium Speed
Base Info
- Model NO.：CP90

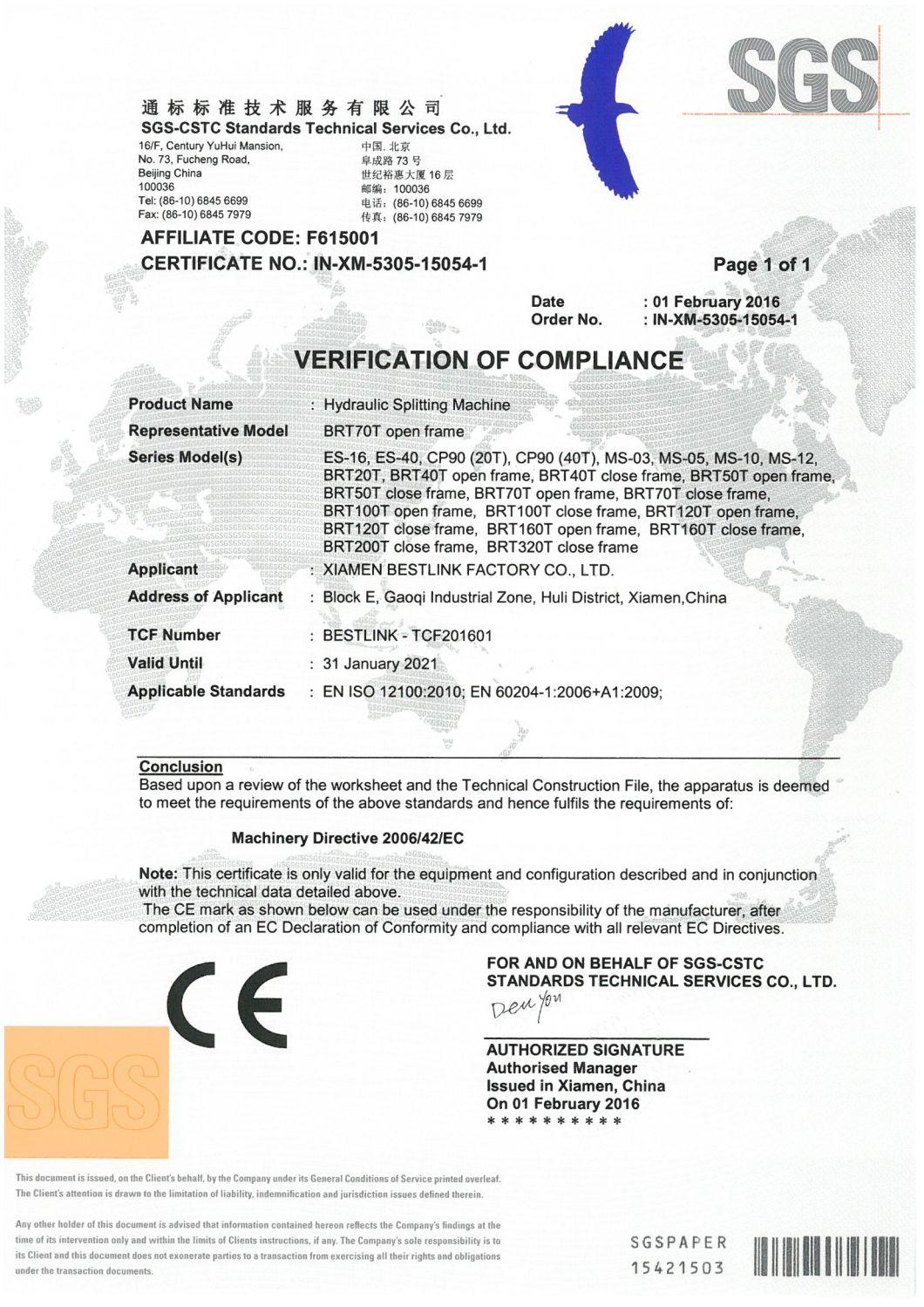

- Certification：CE
- Power：by Electric
- Style：C-Front
- Capacity：20t and 40t
- Fuctions：Stamping,Cutting,Splitting
- Key Word：Stone Cutting Machine
- Transport Package：by Crate
- Specification：SGS
- Trademark：BESLINK
- Origin：Xiamen, Fujian
- HS Code：84791090
- Production Capacity：50,Month
Description
Basic Info.
Model NO. CP90 Certification CE Power by Electric Style C-Front Capacity 20t and 40t Fuctions Stamping,Cutting,Splitting Key Word Stone Cutting Machine Transport Package by Crate Specification SGS Trademark BESLINK Origin Xiamen, Fujian HS Code 84791090 Production Capacity 50/MonthProduct Description

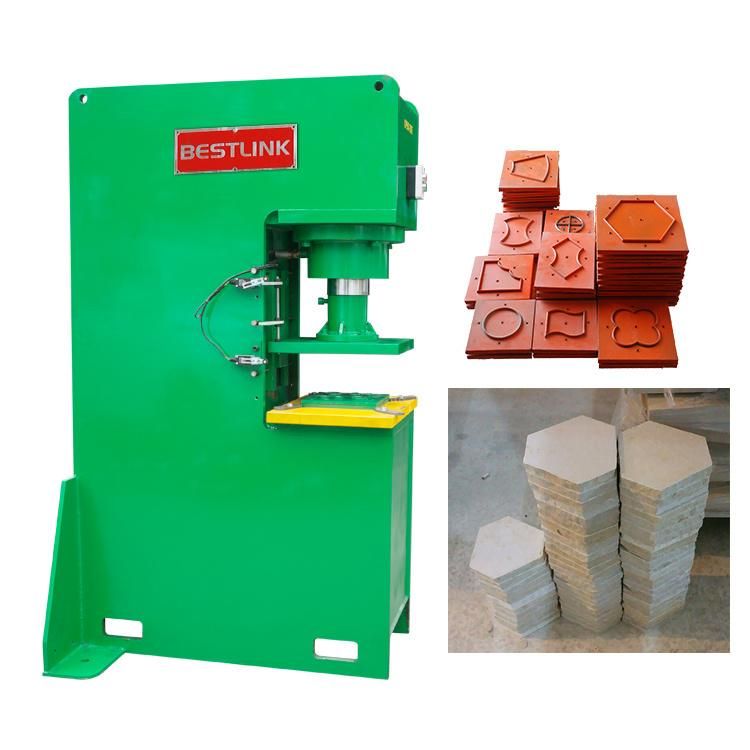

Bestlink Factory Price Waste Stone Recycle Machine for Press Granite/Marble

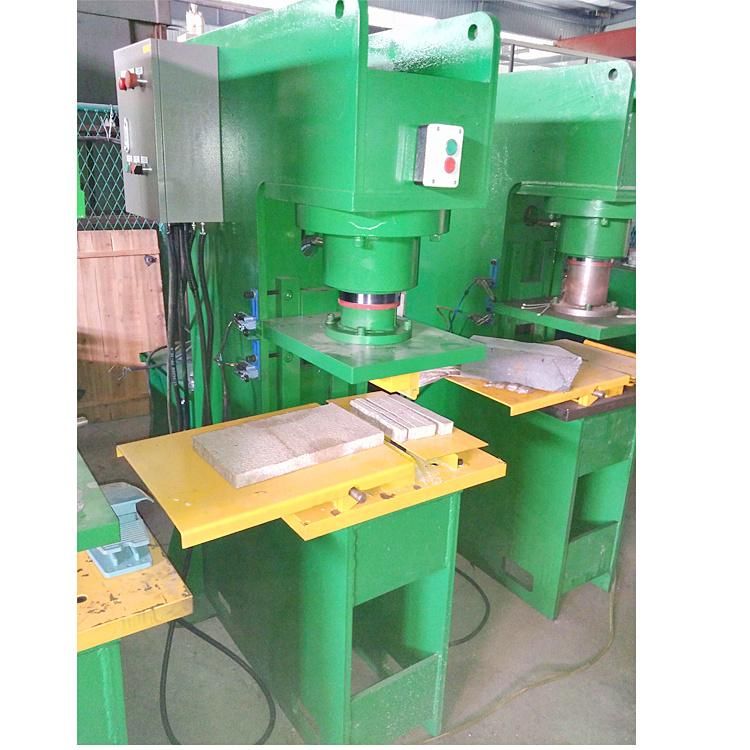

Hydraulic stone pressing machine has the advantages of high productivity effect, no need for technicist and low cost. Our hydraulic stone pressing machine has the advantages of high productivity effect, no need for technicist and low cost. The outstanding cost performance and high efficiency of hydraulic stone pressing machine win the trust and reputation from our customers. It is very convenient to start and operation. Electronically-controlled parts with a separate control cabinet, which is controlled by push-button station and button box.
(1) Our machine is constituted of the bed, rub rail, slide carriage, tooth on the top, bottom jaw and hydraulic system, etc.
(2) The bed is welded by the steel plate and integrally annealed after that.
Hydraulic system is made up by the oil box, electric motor, oil pump and different valves. Oil box stores hydraulic liquid. The Hydraulic liquid should be filtered by the 10μm nets. The top of the oil box can be dismantled for clean and the oil drain hole is at the bottom.
Hydraulic Stamping Machine Specification

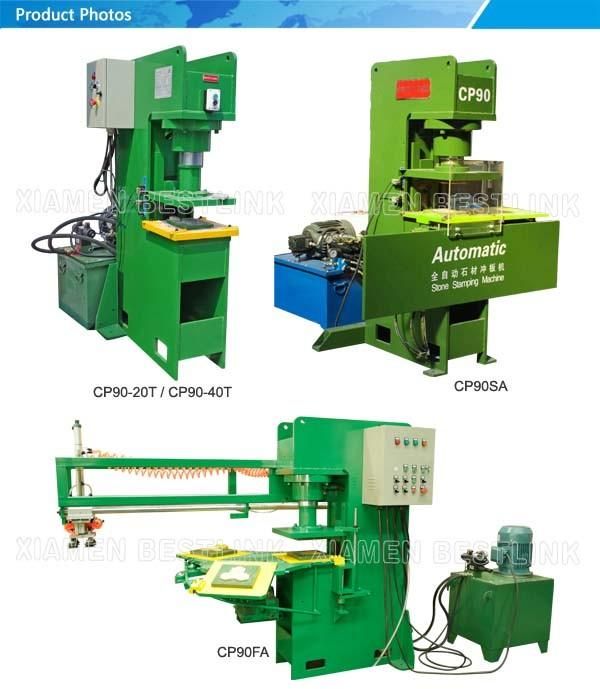

| Model | CP90 (20T) | CP90 (40T) | CP90 (SA) | CP90 (FA) |
|---|---|---|---|---|
| Hydraulic Pressure | 20Mpa | 20Mpa | 20Mpa | 20Mpa |
| Spitting Power | 20T | 40T | 40T | 40T |
| Electric Motor Power | 4kw | 7.5kw | 7.5kw | 9kw |
| Max Slab stamping size | 30*30*3cm | 30*30*5cm | 30*30*8cm | 30*30*8cm |
| Max splitting Length (cm) | 30 | 35 | Semi-automatic | Fully-auto + air compressor |
| Max splitting height (Cm) | 1-5 | 5-8 | 1-5 | 1-8 |
| Machine Size (cm) | 80*100*150 | 80*100*150 | 80*100*150 | 230*95*185 |
| Net Weight (kg) | 500 | 580 | 650 | 1500 |
| Function | Stamping, cutting, splitting | Stamping, cutting, splitting | Stamping only | Stamping only, consumption 1m3/min |
