Stone Processing Machinery

Home > Product > Stone Polishing & Grinding Machine

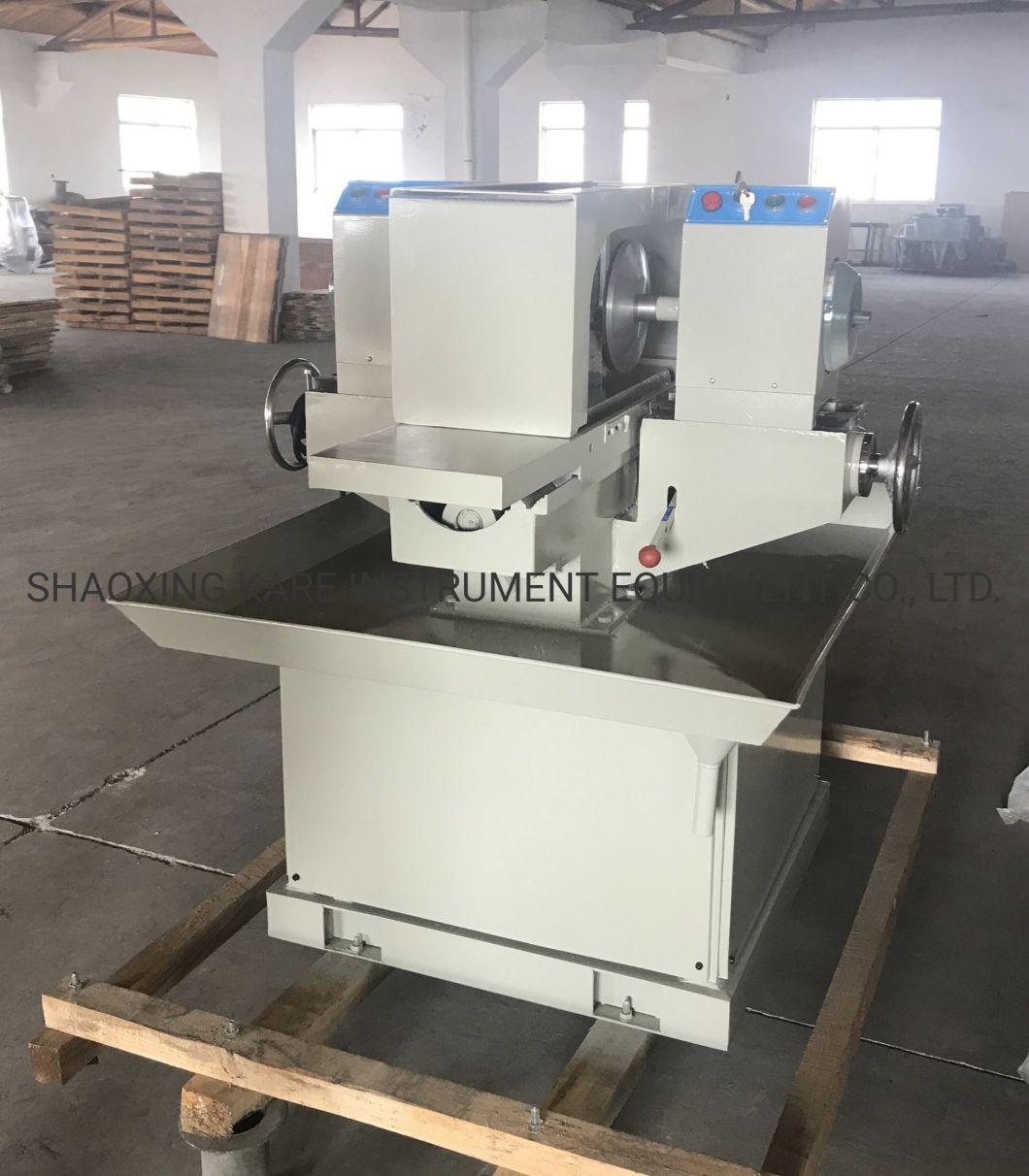

Double End Grinding Test Equipment (SCM-200)

SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.
  • Type：Stone Grinding Machine
  • Control：CNC
  • Automation：Automatic
  • Precision：High Precision
  • Application：Concrete Curb, Granite, Marble
  • Type for Grinding Machine：Disc Grinding Machine

Base Info

  • Model NO.：SCM-200
  • Grinding Method：Wet Grind
  • Condition：New
  • Milling Wheel Specification：C200×c32×40mm
  • Weight：600kg
  • Transport Package：Wooden Case
  • Specification：1400× 1350× 1200mm
  • Origin：China
  • HS Code：84642090
  • Production Capacity：30 Sets,Month

Description

Grinding range≤150×150×150mmMilling wheel specificationC200×C32×40mmGrinding motion head power1.1kW×2Error≤0.05mmSample accuracywithin 100mm of depth of parallelism, planeness, verticalityOutline dimension1400×1350×1200mmWeight600Kg
