• Model NO.：PEW series
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Standard Container
• Specification：Iso9001: 2008 SGS
• Trademark：Zenith
• Origin：Shanghai, China
• HS Code：8474209000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. PEW series Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Standard Container Specification Iso9001: 2008 SGS Trademark Zenith Origin Shanghai, China HS Code 8474209000 Production Capacity 1000 Set/Year

Product Description

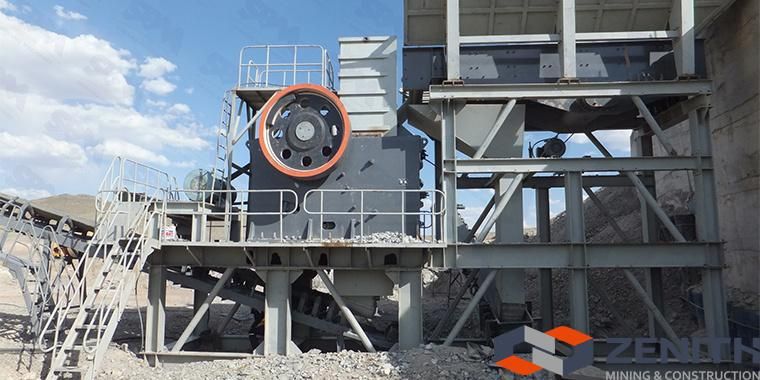

 Jaw stone crusher :

PEW series Jaw crusher features big crushing ratio, reliable operation, easy maintenance and low operating cost. It is the new generation product designed and produced by Zenith, basing on our 30 year's crusher production experience and the latest design conception. It does be one high efficiency and low cost crushing machine.



Jaw stone crusher features :

    1. V-shaped structure crushing cavity is able to meet a big feeding.
    2. Movable jaw assembly adopts a high-quality steel casting and heavy eccentric shaft has also adopted forging billet for processing.
    3. Use of finite element analysis technology helps to reach both light weight and high reliability.
    4.Equipped with wedge adjustment devices, enable to realize automatic control and stepless adjustment.



    Jaw stone crusher application:

PEW series jaw crusher is a new type of crusher designed by our company which is following the traditional jaw crusher. The bearing of PEW jaw crusher using integral cast steel structure, improve the stability of the whole, More to meet the automated production needs of customers.

[Feed size]: 150-930mm

[Production capacity]: 45-800T / h

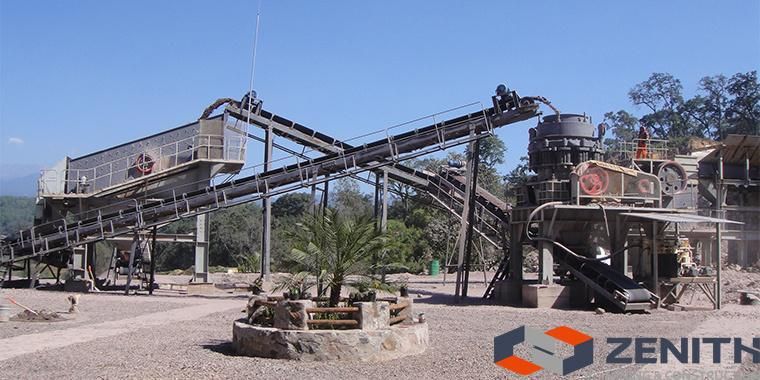

[Applications]: Ore crushing, construction aggregate production, construction waste crushing, water conservancy and hydropower engineering, highway, railway, bridge construction and other industries.

[Applicable Materials]: Granite, marble, basalt, limestone, quartz stone, river gravel, iron ore, copper ore, etc.
Jaw crusher is widely used in various materials processing of mining &construction industries, such as it is suit for crushing granite, marble, basalt, limestone, quartz, cobble, iron ore, copper ore, and some other mineral &rocks.

Jaw stone crusher working principle :

Through the triangle belt, the flywheel is driven by the motor. Then the flywheel drives the eccentric shaft to make the movable jaw plate do reciprocating motion. Materials will be crushed when the movable jaw plate move towards to the fixed jaw plate. End products will be discharged through the discharging opening when the movable jaw plate move backwards.
European style stone crushing used /pew series jaw crusher low price main components:
PEW jaw crusher mainly includes base, fixed jaw plate, moveable jaw plate,jaw stock, toggle plate and eccentric shaft.

Jaw stone crusher technical data:


Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PEW250×1000	250×1000	220	20-40	330	6-37	Y250M-6/37	1400×1850×1310
PEW250×1200	250×1200	220	20-40	330	6-37	Y250M-6/37	1400×2050×1310
PEW400×600	400×600	350	35-85	250	6-37	Y250M-6/37	1920×1460×1840
PEW760	760×1100	620	75-200	270	6-110	Y315L1-6/110	2600×2500×2200
PEW860	860×1100	720	100-225	240	6-132	Y315L2-6/132	3300×2320×3120
PEW1100	1100×1200	930	150-275	210	8-185	Y355L1-8/185	4140×2660×3560
