QMJ-470 Bridge Eight Head Auto Grinding and Polishing Machine (just for marble)

Yunfu City Xinda Machinery Co., Ltd.
  • Type：Stone Polishing Machine
  • Control：Bridge polishing machine
  • Automation：Automatic
  • Precision：High Precision
  • Application：Marble
  • Type for Grinding Machine：Disc Grinding Machine

Base Info

  • Model NO.：QMJ-470
  • Grinding Machine Type：Vibration Polishing Machine
  • Grinding Method：Wet Grind
  • Certification：ISO, CE
  • Condition：New
  • Conditiaon：New
  • Container Type：40GP(DC)
  • Transport Package：by Film Package
  • Trademark：XINDA
  • Origin：Yunfu City, China
  • HS Code：84642090
  • Production Capacity：800

Description

Basic Info.

Model NO. QMJ-470 Grinding Machine Type Vibration Polishing Machine Grinding Method Wet Grind Certification ISO, CE Condition New Conditiaon New Container Type 40GP(DC) Transport Package by Film Package Trademark XINDA Origin Yunfu City, China HS Code 84642090 Production Capacity 800

Product Description

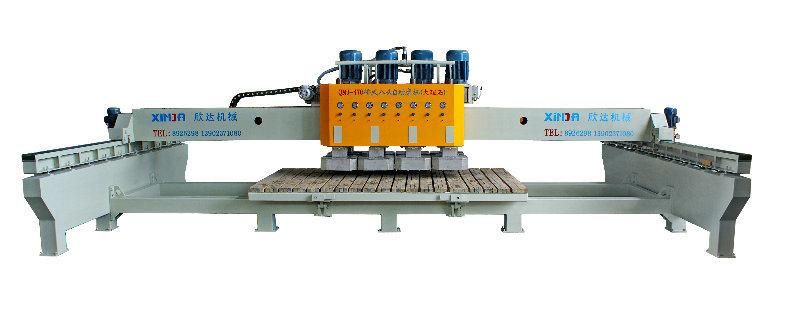

QMJ-470 Bridge Eight Head Auto Grinding and Polishing Machine (just for marble)
Function:The machine is mainly used for grinding and polishing marble slab. It has high flatness and gloss. Controlled by PLC system, It is easy to operate and its performance is steady. grind heads can move up or down by adjusting the Air pressure. The worktable is controlled by hydraulic system. there are two options for the structure of this machine including the integrated type and the separated type.
Advantages:
1.  The machine can finish polishing the marble slabs without replacing the grinding head.
2.  Replacing the manual operating machine used to polish marble slabs, the machine can drastically ease the worker's workload and save labor resources and improve the productivity.


Technical parameters:
ParametersQMJ-470
Polish efficiency15-25m²/h
Worktable Size3200×2200mm
Max processing size3200×2200×80(thickness)mm
Worktable Tile Angle0-83°
Main Motor Power4PCS×11KW
Water Consumption4m³/hour
Overall Dimension8000×5500×2600mm
Total Power52.5KW
Total Weight9.5T


 Exhibition:QMJ-470 Bridge Eight Head Auto Grinding and Polishing Machine (just for marble)FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before shipment
2) Delivery time:
The machine can be shipped within 15 workdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical support 24 hour on line.
