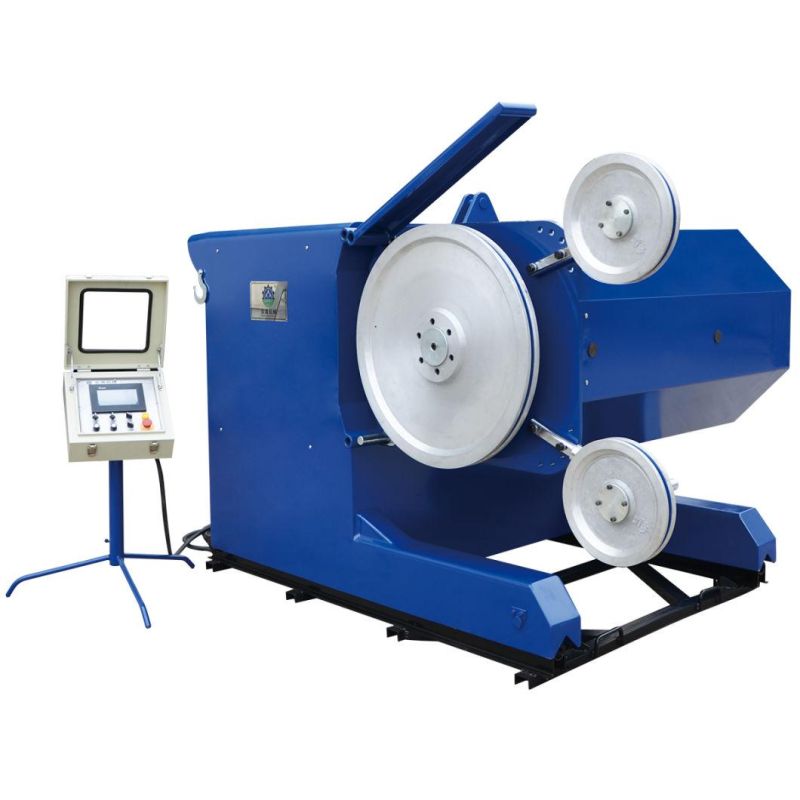

Wire Saw Machine for Marble Quarrying Aqt
Fujian Ningde Aqt Imp. & Exp. Co. Ltd- After-sales Service：Good-Quality Technical Services
- Warranty：1 Year
- Type：Stone Cutting Machine
- Usage：Marble
- Application：Mineral Industry, Stone Industry
- Source Voltage：380V
Base Info
- Model NO.：ZY-75G-6P
- Automation：Automatic
- Cutting Ability：High Speed
- Control：Two Sets of Inverters
- Certification：ISO, CE
- Transport Package：Plywood
- Specification：L*W*H=2500mm*1600mm*1530mm
- Trademark：Stonewin
- Origin：Xiapu, Fujian, China
- HS Code：84641020
- Production Capacity：5000sets Per Year
Description
ZY-G SERIES WIRE SAW MACHINE FOR MARBLE QUARRYING PARAMETERMODEL ZY-75G-6P MAIN MOTOR POWER 75KW-6P(100HP) FLYWHEEL DIAMETER Φ800mm WIRE SAW SPEED 0-40m/s MAX.WIRE SAW LENGTH 20-120 meters WALKING MOTOR POWER 1.5kw(2HP) LATERAL MOVING DISTANCE 500mm MAX.LATERAL CUTTING DISTANCE 1900mm ROTATION ANGLE 360° MACHINE WALKING SPEED 0-90m/h RAIL LENGTH 2m*3+1m(7m) ALLOWED WORKING TEMPERATURE -15ºC~+40ºC DIMENSION 2500*1600*1530mm NET WEIGHT 3.5T
1. Being controlled by two sets of inverters and applying the constant tension control principle, the moving speed of the machine can be adjusted automatically according to the changes of the cutting force to make sure the diamond wire saw be in the best cutting condition all the time.
2. The machine is without phase request. It doesn't need to change or distinguish the power phase. The machine has the following protection functions: wire broken protection, over-loading protection, open-phase protection, terminal limit, and so on.
3. The lateral moving and the rotation angle of the cutting head are controlled and driven by an electric motor. There is a photoelectric proximity switch installed on the cutting head for position limitation protection. This function enables the machine to work normally under harsh circumstances of moisture and dust.
4. The real-time parameters are displayed on the control platform, such as the set current of the main motor, the current and the rotation speed of the main motor, etc. It makes the operation and adjustment of the machine more convenient.
5. The machine can be operated manually and automatically. The manual and automatic functions can be shifted from each other. Under the automatic function, the machine can be unattended operated, and one worker is able to operate multiple machines.
