• Model NO.：Various
• Finished Surface：Thread Process
• Certification：ISO
• Condition：New
• Color：as Requirements
• Certificate：ISO9001: 2000
• Brand：Hengxing
• Price：Lowest Price for The Same Parameter
• Spare Parts：Supply for Whole Using Life
• Drawing：Offer
• Siize：600*900
• Weight：17600t
• Motor Power：75kw
• Overall Dimensions(L*W*H)(mm)：2792*2168*2250
• Installation：Engineer Oversea Service
• Transport Package：Standard Container, Small Parts by Wooden Box
• Specification：CE
• Trademark：HengXing
• Origin：China
• HS Code：84742090
• Production Capacity：100sets One Year

Basic Info.

Model NO. Various Finished Surface Thread Process Certification ISO Condition New Color as Requirements Certificate ISO9001: 2000 Brand Hengxing Price Lowest Price for The Same Parameter Spare Parts Supply for Whole Using Life Drawing Offer Siize 600*900 Weight 17600t Motor Power 75kw Overall Dimensions(L*W*H)(mm) 2792*2168*2250 Installation Engineer Oversea Service Transport Package Standard Container, Small Parts by Wooden Box Specification CE Trademark HengXing Origin China HS Code 84742090 Production Capacity 100sets One Year

Product Description

Hard Stone Primary Jaw Crusher For Granite/Quartz Stone Crushing Plant:

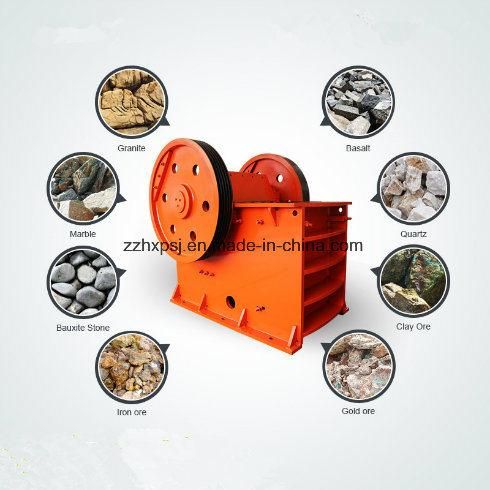

1 Jaw Crusher Application: jaw crusher can reach the crushing ratio of 4-6 and the shape of final product is even. It is widely applied to crush high hardness, mid hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is, suitable for primary crush. Jaw crusher can be used in mining, metallurgical industry, construction, road and railway building, conversancy, chemistry, etc

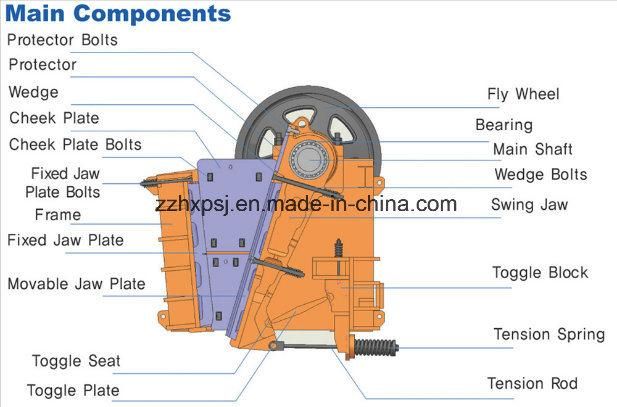

2.Jaw crusher structure :
The jaw crusher is made up of frame, flywheel, movable plate, fixed plate, toggle plate, set adjustment, main bearing, etc. The toggle plate is used for protection.


3. Jaw Crusher  Features
1. It adopts world-level manufacturing technology and high-end manufacturing materials.

2. More advanced movable jaw assembly makes it more durable. The movable jaw assembly uses high-quality steel casting and drives through two large-sized cast steel flywheels. In addition, the heavy eccentric shaft also adopts forging stock which makes JC series jaw crusher have extraordinary reliability.

3. The bearing pedestal adopts unitary cast steel structure. The unitary cast steel bearing pedestal can ensure comprehensive fitting with the crusher rack, and at the same time, greatly increase the radial strength of the bearing pedestal, whereas split type bearing pedestal does not have these advantages.

4. By using finite element analysis technology, the jaw crusher has higher strength.

5. The crushing chamber adopts symmetrical V-shaped structure, so that the actual width of the feeding mouth is in line with the nominal width of the feeding mouth.

6. The adjustment of the discharging mouth is quicker and more convenient. European type JC series jaw crusher is equipped with wedge discharging mouth adjustment device, so that the adjustment of the discharging mouth is simpler, safer and quicker than that of traditional gasket adjustment.

7. The selected bearing has bigger specifications and higher carrying capacity. All the JC series jaw crushers are equipped with eccentric shaft bearing bigger and more durable than the crushers with the same specifications, and the higher carrying capacity and effective labyrinth sealing of this bearing greatly extends its service life.

8. It adopts the latest tooth back plate which increases the effective length of the jaw plate and the output of jaw crusher.

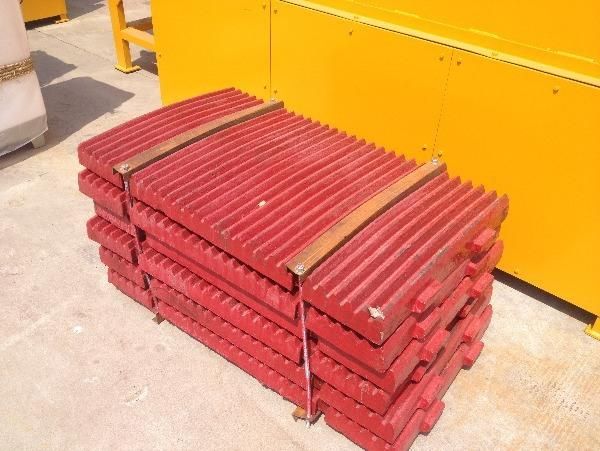

4. Main spare parts-jaw plates:
If you have a jaw crusher that is in need of maintenance and new parts, we can help. We can supply, install and send our jaw crusher parts to anywhere in the world. We carry a full line of wear parts for your jaw crushers and if you have a part that is no longer made by the manufacturer, we can fabricate for you. We have many case histories in which wear life can be increased by 50%, and some can even be increased up to 100%.


5.jaw crusher working principle:
The dynamic jaw moving from side to side is hung on the mandrel. When the eccentric shaft is turning, its connecting rod moves up and down, which also drives the two thrust plates to do the same movement. Then the dynamic jaw moves from side to side to realize crushing and unloading. The jaw crusher adopts crank link mechanism. Although the dynamic jaw bears great broken counter-force and the eccentric shaft and the connecting rod bears little stress, industrial enterprises usually make large sized machine and middle sized to crush hard materials. Additionally, every moving track of the dynamic jaw is an arc with the mandrel as its center. The circular arc radius equals the distance from the point to the axis with the upper arc being smaller and the lower arc bigger. The crushing efficiency of the jaw crusher is quite low and the crushing ratio is 3-6.

6.Jaw Crusher Technical Parameters:

Model	Feed opening  (mm)	Max.feeding size  (mm)	Adjusting range of discharge opening  (mm)	Processing capacity  (t/h)	Rotation speed of eccentric shaft  (r/min)	Motor power  (kw)	Total weight  (t)	Dimensions (L×W×H) (mm)
PE-150×250	150×250	125	10-40	1-3	250	5.5	0.8	720×660×850
PE-200×300	200×300	180	15-50	2-6	260	7.5	1.2	910×750×990
PE-200×350	200×350	180	18-70	3-10	260	11	1.5	1000×870×990
PE-250×400	250×400	210	20-60	5-20	300	15	2.8	1300×1090×1270
PE-400×600	400×600	340	40-100	16-60	275	30	7	1730×1730×1630
PE-500×750	500×750	425	50-100	40-110	275	55	12	1980×2080×1870
PE-600×750	600×750	500	150-200	80-240	275	55	15.8	2070×2000×1920
PE-600×900	600×900	500	65-160	50-180	250	55	17	2190×2206×2300
PE-750×1060	750×1060	630	80-140	110-320	250	110	29	2660×2430×2800
PE-800×1060	800×1060	640	130-190	130-330	250	110	29.8	2710×2430×2800
PE-830×1060	830×1060	650	160-220	150-336	250	110	30.7	2740×2430×2800
PE-870×1060	870×1060	660	200-260	190-336	250	110	31.5	2810×2430×2800
PE-900×1060	900×1060	685	230-290	230-390	250	110	33	2870×2420×2940
PE-900×1200	900×1200	750	95-165	220-450	200	110	52	3380×2870×3330
PE-1000×1200	1000×1200	850	195-265	315-500	200	110	55	3480×2876×3330
PE-1200×1500	1200×1500	1020	150-350	400-800	180	160-220	100.9	4200×3300×3500
PE-1500×1800	1500×1800	1200	220-350	500-1000	180	280-355	122	5160×3660×4248
PE-1600×2100	1600×2100	1500	300-400	1300-2200	160	350-380	150.6	6210×4013×4716
PEX-150×750	150×750	120	18-48	8-25	320	15	3.8	1200×1530×1060
PEX-250×750	250×750	210	25-60	13-35	330	30	5.5	1380×1750×1540
PEX-250×1000	250×1000	210	25-60	16-52	330	30	7	1560×1950×1390
PEX-250×1200	250×1200	210	25-60	20-61	330	37	9.7	2140×1660×1500
PEX-300×1300	300×1300	250	20-90	16-105	300	55	15.6	2720×1950×1600

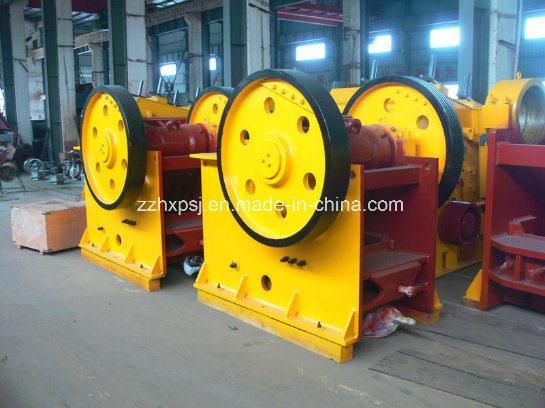

7.Jaw crusher in factory :


8.Q: For providing you the suitable quotation we need to know the following information:
A: 1.What is the raw material for the production line? is it gold ore ,iron ore ,riverstone,limestone,coal slag,ot orher rock/stone?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models.
Q: What about Warranty of the products?
A: we grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in normal operation, we will at our discretion replace or repair the defective parts freely. Crushe
