Mini CNC Stone Machine 9018 for Gravestone Engraving, Glass, Wood, Ice, Plastic, Rubber Engraving

Linyi Chaoda International CNC Technology Co., Ltd.
  • Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
  • Application Material：Marble
  • Automation：Automatic
  • Control：CNC
  • Motor Power：High Power
  • Engraving Head Speed Adjustability：Small Adjustable Range

Base Info

  • Model NO.：JCS9018
  • Certification：CE, ISO, API
  • Current：AC
  • Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry, Wood, Plastic
  • Customized：Customized
  • Applicable Material：Wood, Stone, Glass, Ice, Softmetal, Plastic, Foam
  • X,Y, Z Working Size：900*1800*200mm(Customize)
  • Table Surface：T-Slot with Clamps
  • Pindle Power：4.5kw Water Cooling Spindle
  • Operating System：4 Axis DSP Control System
  • Transport Package：Wooden Case Packages
  • Specification：working size diameter 1000mm, length 2500mm
  • Trademark：CHAODA
  • Origin：China
  • HS Code：8464909000
  • Production Capacity：800sets,Year

Description

SpecifiationsModel number JCS9018X, Y, Z working area 900*1800*200mmLathe bed structure Heavy duty Steel T-extrusion Table surface   T-slot with clamps,with water tank X structure   Rack and pinion, Taiwan linear square rail Y structure Rack and pinion, Taiwan linear square railZ structure Ball screw, Taiwan linear square rail Max.operating speed 0-55000mm/minMax.working speed0-25000mm/min Spindle  4.5 kw water cooling spindle Spindle speed     0-24000 RPM  Collet   ER20  Working modestepper motor and driver ( option: servo motor Inverter Fuling  Operating system  3 axis DSP controller    Command code G code(*uoo,*nc,*mmg, *plt)Oil systemyesRunning circumstanceTemperature: 0ºC~45ºC; relative humidity: 30%~75%Weight 1750kgAccessories education CD,Tools,spanners,clamps,collets,water pumps

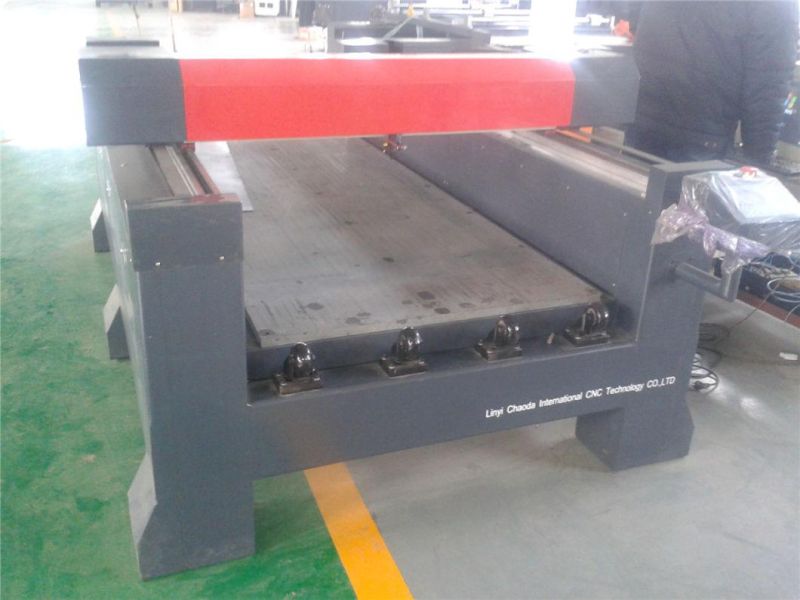

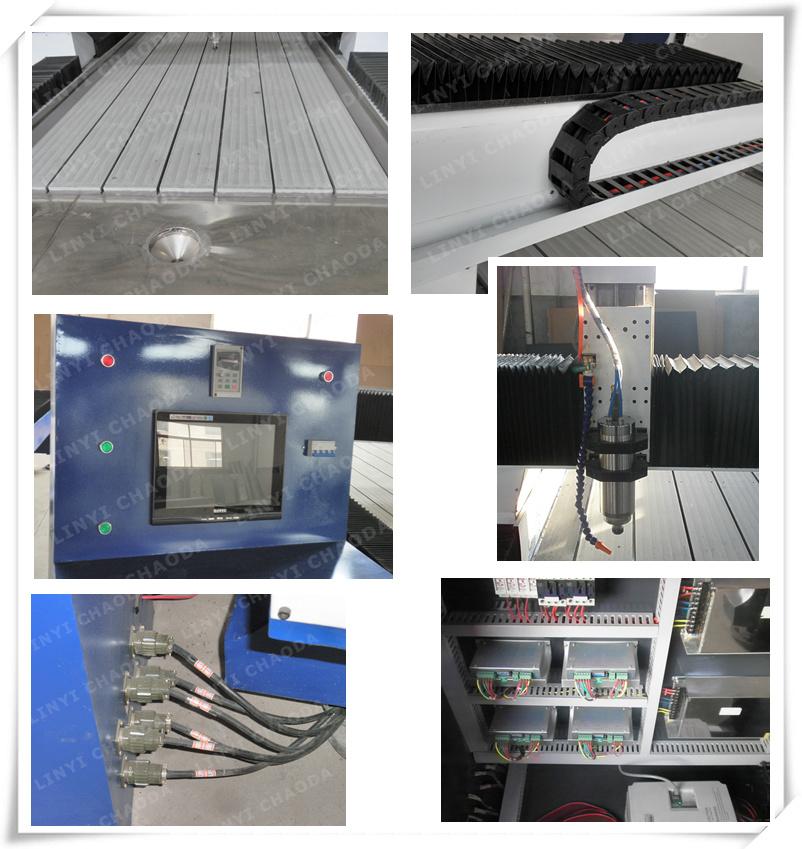

Take a Good Look at the Details:
Mini CNC Stone Machine 9018 for Gravestone Engraving, Glass, Wood, Ice, Plastic, Rubber Engraving
Samples Made by This Machine:
Mini CNC Stone Machine 9018 for Gravestone Engraving, Glass, Wood, Ice, Plastic, Rubber Engraving

Mini CNC Stone Machine 9018 for Gravestone Engraving, Glass, Wood, Ice, Plastic, Rubber Engraving


Mini CNC Stone Machine 9018 for Gravestone Engraving, Glass, Wood, Ice, Plastic, Rubber Engraving
Mini CNC Stone Machine 9018 for Gravestone Engraving, Glass, Wood, Ice, Plastic, Rubber Engraving
Related Products:
Laser Stone Carving Machine
Mini CNC Stone Machine 9018 for Gravestone Engraving, Glass, Wood, Ice, Plastic, Rubber Engraving

Mini CNC Stone Machine 9018 for Gravestone Engraving, Glass, Wood, Ice, Plastic, Rubber Engraving

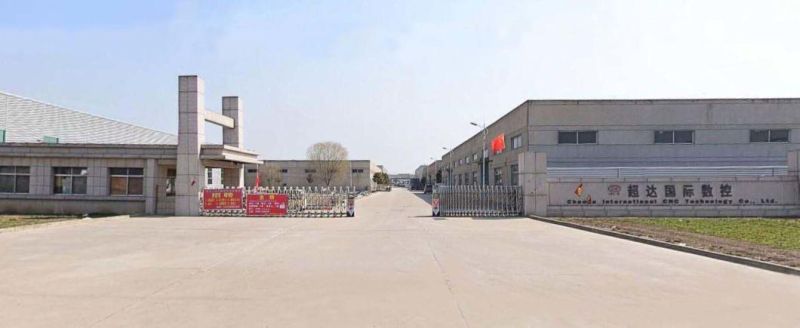

Factory and Product Introduction:

Mini CNC Stone Machine 9018 for Gravestone Engraving, Glass, Wood, Ice, Plastic, Rubber Engraving
We are factory professional produce 3 axis,4 axis,5 axis cnc machines,cnc laser,3D scanner etc.
Including all kinds of 2d,3d flat decoration products and rotary 3d sculptures,pillars,moulds etc.
Machining on wood,foam,stone,plastic,PVC,composite boards,acrylic,glass,aluminum etc.
Welcome for your inquiry and visit our factory!
