• Model NO.：in details
• Grinding Machine Type：Barrel Polishing Machine
• Grinding Method：Wet Grind
• Certification：ISO, CE, SGS
• Condition：New
• Delivery Time：7-20 Days
• Installation：Under The Guidance of Engineer
• Certificate：ISO;SGS;CE:CIQ:FTA;etc
• Warrenty：1 Year
• After-Sale Service：Training, Technical Support, etc.
• Discharging Size：20-200 Mesh.Can Be Adjusted
• Feeding Size：<25mm
• Exporter Type：Factory Manufacturer
• MOQ：1 Set
• Transport Package：Bulk Carrier
• Specification：ISO, CE, SGS
• Trademark：TYM
• Origin：Henan, China
• HS Code：8474202000
• Production Capacity：60 Sets,Month

Basic Info.

Model NO. in details Grinding Machine Type Barrel Polishing Machine Grinding Method Wet Grind Certification ISO, CE, SGS Condition New Delivery Time 7-20 Days Installation Under The Guidance of Engineer Certificate ISO;SGS;CE:CIQ:FTA;etc Warrenty 1 Year After-Sale Service Training, Technical Support, etc. Discharging Size 20-200 Mesh.Can Be Adjusted Feeding Size <25mm Exporter Type Factory Manufacturer MOQ 1 Set Transport Package Bulk Carrier Specification ISO, CE, SGS Trademark TYM Origin Henan, China HS Code 8474202000 Production Capacity 60 Sets/Month

Product Description

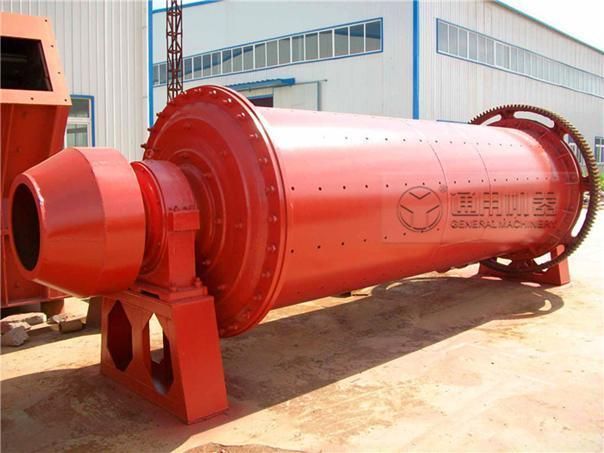

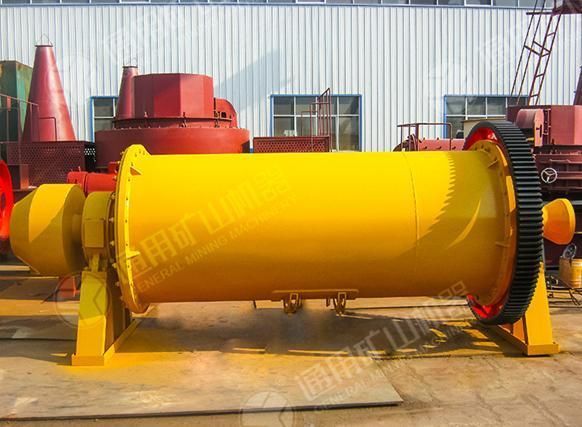

Ball millBall mill application:
Ball mill is an efficient tool for grinding many materials into fine powder. The Ball Mill is used to grind many kinds of mine and other materials, or to select the mine. 2 It is widely used in building material, chemical industry, etc. There are two ways of grinding: The dry way and the wet way. It can be divided into tabular type and flowing type according to different expelling mine.

Working principle of ball mil:

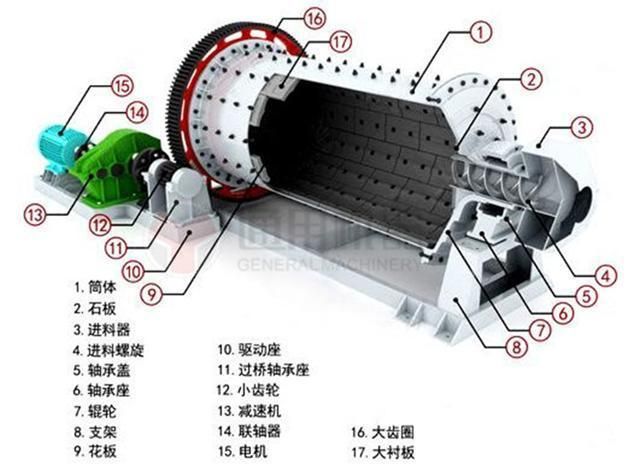

To use the Ball Mill, the material to be ground is loaded into the Neoprene barrel that contains grinding media. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several minutes.

Quite simply, the longer the Ball Mill runs, the finer the powder will be. Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the Ball Mill runs. Our Ball Mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals, and make Black Powder.

Technical parameter:

Model	Speed of bucket (r/min)	Weight of ball (t)	Size of feed opening (mm)	Size of outputting feed (mm)	Production (t/h)	Power (Kw)	Weight (t)
Φ 900× 1800	38	1.5	≤ 20	0.075-0.89	0.65-2	18.5	3.6
Φ 900× 3000	38	2.7	≤ 20	0.075-0.89	1.1-3.5	22	4.6
Φ 1200× 2400	32	3.8	≤ 25	0.075-0.6	1.5-4.8	45	12.5
Φ 1200× 3000	32	5	≤ 25	0.075-0.4	1.6-5	45	12.8
Φ 1200× 4500	32	7	≤ 25	0.075-0.4	1.6-5.8	55	13.8
Φ 1500× 3000	27	8	≤ 25	0.075-0.4	2-5	90	17
Φ 1500× 4500	27	14	≤ 25	0.075-0.4	3-6	110	21
Φ 1500× 5700	27	15	≤ 25	0.075-0.4	3.5-6	132	24.7
Φ 1830× 3000	24	11	≤ 25	0.075-0.4	4-10	180	28
Φ 1830× 6400	24	23	≤ 25	0.075-0.4	6.5-15	210	34
Φ 1830× 7000	24	25	≤ 25	0.075-0.4	7.5-17	245	36
Φ 2200× 5500	21	30	≤ 25	0.075-0.4	10-22	370	48.5
Φ 2200× 6500	21	30	≤ 25	0.075-0.4	14-26	280	52.8
Φ 2200× 7500	21	33	≤ 25	0.075-0.4	16-29	475	56

About us

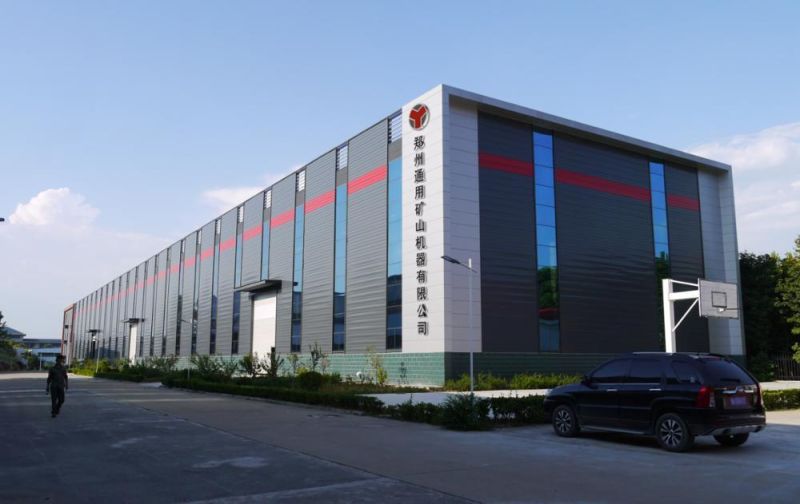

Zhengzhou General Mining Machinery Co., Ltd was founded in 2004, aiming to serve the need in mining, metallurgy, construction, chemical industry etc. We manufacture TYM brand Mining Machinery which are 100% of our own design, production detection and marketing.

What distinguishes our machine from other 's worldwide is our invention and innovation on practical and easy crushing, milling system. We believe that quality should be integrated into every part of our machine.

Our main products are Powder Grinder, Raymond Grinders, High Pressure Suspention Grinders, High Pressure Micro-powder Grinders, Vertical Shaft Impact Crushers, Impact Crushers, Jaw Crushers, Cone Crushers, Vibrating Screens, Sand Washing Machines, nine series of products with more than 30 kinds of specifications.

They are all designed, produced, manufactured and tested in accordance with the standard of ISO9001: 2000 international quality system standard. Our products are recognized as quality products by technical supervision departments.

Every year, we export our grinders and crushers to South Asia, Africa, South America, middle East and other regions in quantity. And our Machines enjoy a high reputation in the foreign market. We welcome you visit our company, and hope we have chance to cooperate with you. Thank you.
Pre-sale services:
(1) device model choice.
(2) According to customer's special requirements, design and manufacture of products.
(3) Training technical personnel for clients.
(4) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program

Sales tracking:
(1) product acceptance.
(2) to help customers develop construction programs.

After-sale services:
(1) free to assign a dedicated service personnel, arriving at the scene and guiding customers' installation.
(2) equipment installation.
(3) on-site training of operators.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.

We hope our perfect products and service can satisfy you, and welcome to our factory to visit. Looking forward to building long-term relationship with you!

Contact us

If you are interested with our products, please don't hesitate to contact us. We will provide you the most satisfying product and service. You can tell me the following questions, then I can send you accurate quotation soon, including additional discount!

1. Which machine do you need? like stone crusher, grinding mill or ball mill , etc.

2. what is your raw material plan to process? like limestone, granite or marble  ore, etc.

3. The capacity you need. Like 100 tones per hour or 2000 tones per day.

4. Your contact information. Both Email and phone number are essential, we can contact you easier.
