• Model NO.：High Tech Grinding 800-4D
• Grinding Method：Dry and Wet Grind
• Certification：ISO, CE
• Condition：New
• Name：800-4D New Design Ride-on Concrete Floor Grinder
• Power：15kw,20HP
• Rotating Speed：450-1950rpm
• Weight：600kg,1323lbs
• Voltage Amperage：380-440V,30.7A Three Phase
• Working Width：800mm(256mm*4)
• Inverter：380V 18.5kw,25HP
• Disc Diameter：256mm
• Package Type：Standard Wooden Case
• Usage：Grinding on Concrete,Marble,Terrazzo,Epoxy Floor
• Transport Package：88*142*152cm
• Specification：88*142*152cm
• Trademark：HIGH TECH GRINDING
• Origin：China
• HS Code：84642090
• Production Capacity：1000

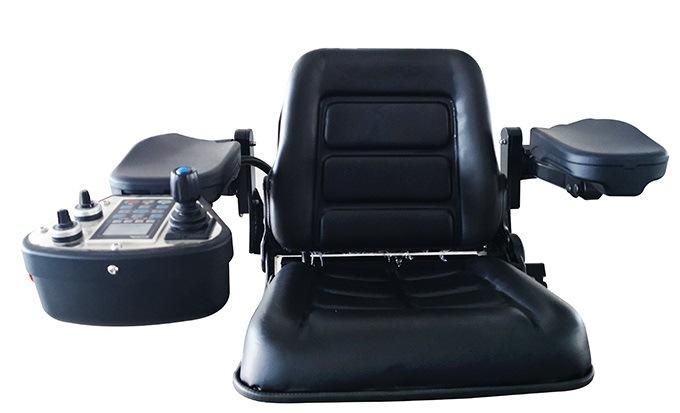

Equip with a seat which can be adjusted forward and backward, enable the global floor labors to work with happiness and easiness. Ride on 800-4D and have a wider field of view,helping you to know every details of the floor ground.

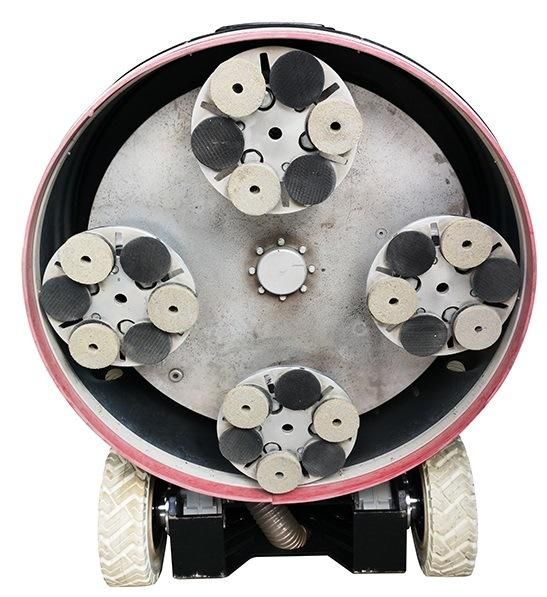

Four-head planetary rotating system produces a counter centrifugal force,which makes the machine work smoothly and stably.The counter centrifugal force and 600kg of grinding pressure make the machine work more efficiently.The stable driving system makes the grinding effect more evenly.

The multi-functional grinding pads holder can be  equip with different kinds of grinding pads,such as resin pads,metal pads,wheel cups.

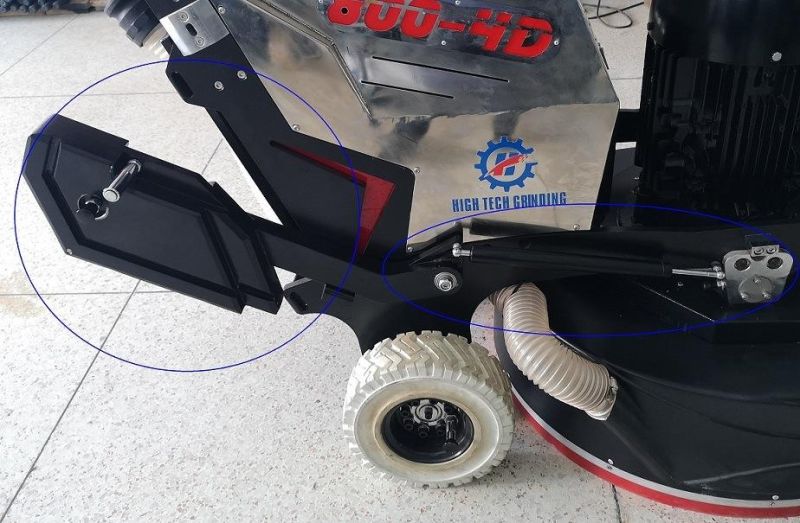

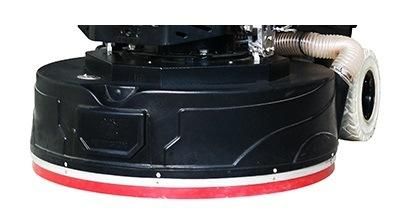

Floating dust cover prevents the grinding pads from flying out due to foreign matters on the floor ground and hurt people.Adjust automatically according to the condition of floor to prevent dust from overflowing.What's more,there is no need to re-install the dust cover when changing the grinding discs.Extra weight with auxiliary elastic rods to reduce the force of using extra weight.The extra weight can be setting in three levels:increasing,normal grinding and reducing grinding pressure.

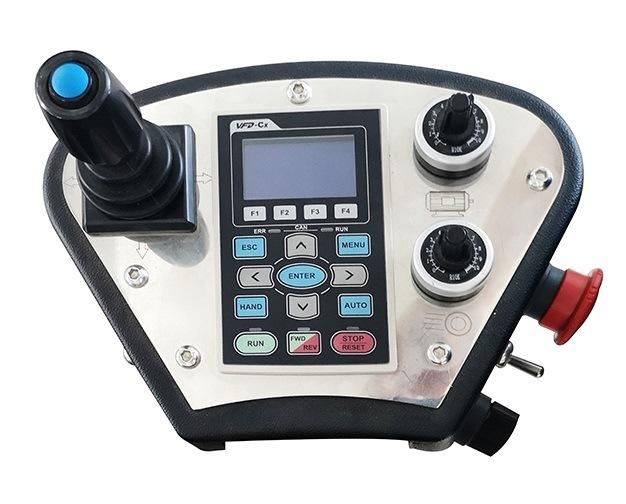

 The control penel is next to the armrest,which is easy to operate.And the operating status of the floor grinder can be grasped at anytime through the LCD screen on control panel.You can sit on the machine and operate with the control panel on your right side.

Package

1.Do Quality Testing Before Packing;
2.Pack Machine With Poly-wooden Box;
3.Reinforce the Wooden Case and Label the Mark;
4.Send Them to Empty Place for Loading;
5.Load the Container;
6.The Thickness of Crate is 1.57inch.

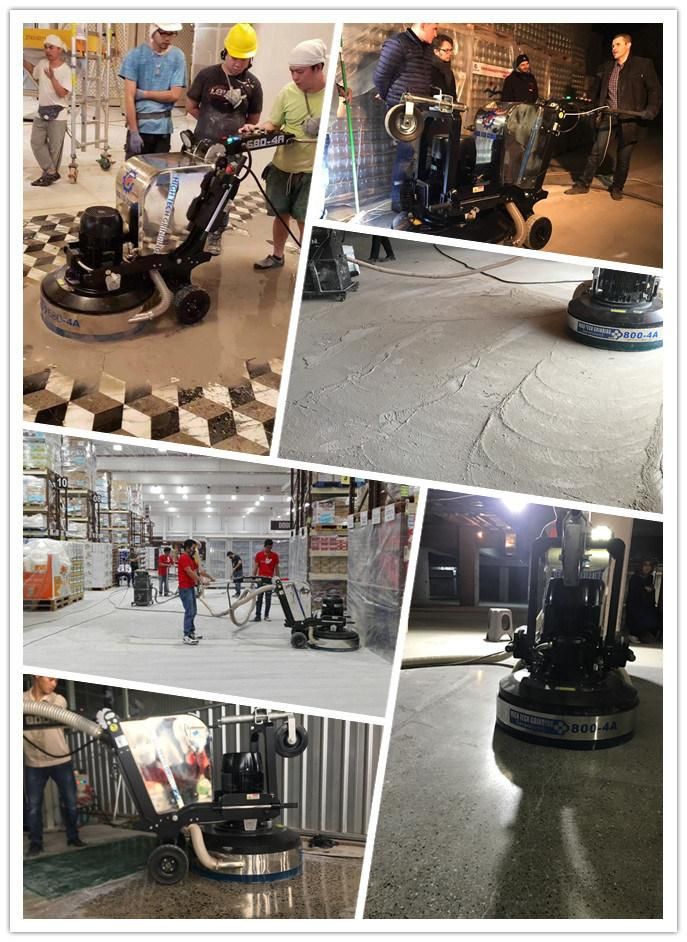

Demo

Our company doing manufacturing and projects, we have floor engineering company doing all kinds of floors around, and we fly to Egypt, Brunei, Malaysia, Thailand, Canada and Australia etc countries doing polishing and guilding clients, we can provide the system products for your flooring business with factory price and quality control advantages.

Our Certisfication

Owned many national certificates:CE,ISO9001,TUV,SGS,etc.
Awarded with more than 120 patents,sold to more than 120 countries.

Company Information



Xingyi Enterprise,one of the biggest system integrators who specialized in producing,developing and providing floor polishing products and services. From the research and development,production of floor grinding machine to the attempt and innovation of floor polishing and beautification, Xingyi has always been at the frontier of technology.
Xingyi's Mission:Enable the global floor labors to work with health,relax and happiness.
For this mission,we constantly try, innovate and change to meet your needs.

If you have any problems,please don't be hesitate to contact us,thank you!

Jane Ling - international sales Dept
Facebook: Floor Grinder
Website:xingyigroup.en.made-in-china.com
Tel:+86-15960788816

FAQ

Q: Are u the manufacturer ?
A: Yes of course, we are the manufacturer ! we welcome clients to visit our factory to inspect our
produce process at any time.Our factory is located in Jinjiang, China ( Xiamen airport, Xingyi pick up )

Q: How long your product's warranty ?
A: One year warranty .

Q: What is your MOQ ?
A: 1 set

Q: What is your packaging ?
A: We package in Plywood case.

Q: What is your payment method ?
A: 100%^Or 50% T/T advance, the balance should be pay off before shipment.

Q: Do your machine can be custom-made ?
A: Yes, we can design and produce according to client's requirements.

Q: What is your delivery time ?
A: 7~20 days ( according to the total quantity)
