Multi Spindle, Heavy Duty Stone CNC Router for Marble, Granite, Wood

Jinan Guanjiahong CNC Machinery Co., Ltd.
  • Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo
  • Application Material：Stone, Granite, Marble
  • Automation：Automatic
  • Control：CNC
  • Motor Power：High Power
  • Engraving Head Speed Adjustability：Non-Adjustable

Base Info

  • Model NO.：2018-4-4
  • Certification：CE, SGS
  • Application：Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
  • Customized：Customized
  • Running Mode：Servo
  • Control System：Nc Studio
  • Table：Channel Steel Countertop with PVC
  • Transport Package：Plywood Case
  • Specification：1825
  • Trademark：GJH
  • Origin：Shandong China
  • HS Code：84659900
  • Production Capacity：100 Sets Per Month

Description

Basic Info.

Model NO. 2018-4-4 Certification CE, SGS Application Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Running Mode Servo Control System Nc Studio Table Channel Steel Countertop with PVC Transport Package Plywood Case Specification 1825 Trademark GJH Origin Shandong China HS Code 84659900 Production Capacity 100 Sets Per Month

Product Description

Four Heads, Four Spindles, Heavy Duty Stone CNC Router
for Wood, Stone, Marble, Granite,cutting and engraving
from professional CNC router machine manufacturer in China.


Multi Spindle, Heavy Duty Stone CNC Router for Marble, Granite, Wood



Multi Spindle, Heavy Duty Stone CNC Router for Marble, Granite, Wood

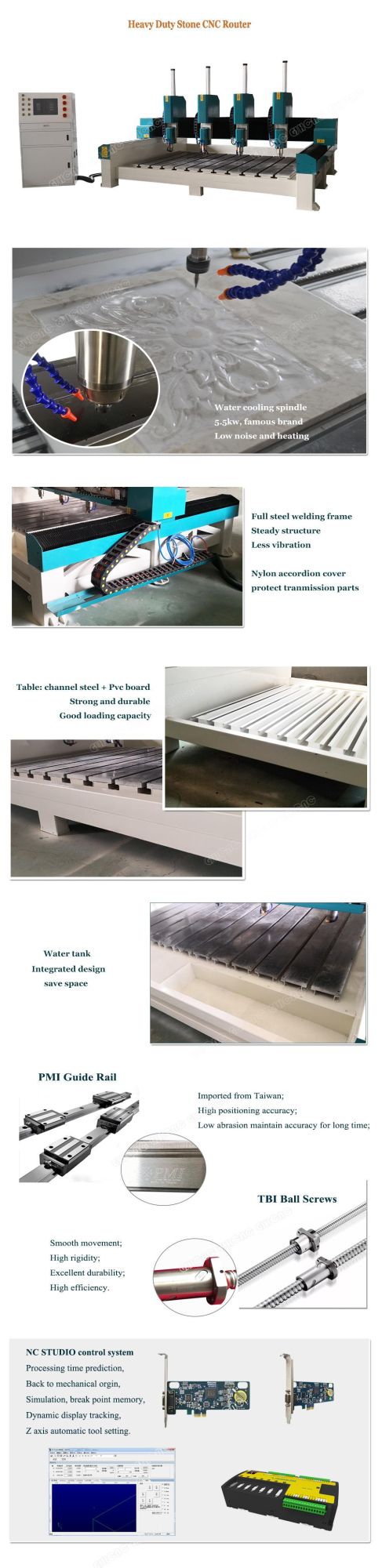

1.Four heads, four spindles, distance adjustable, separately controllable, work simutaneously or separately as required
2.Water cooling spindle with high speed, high efficiency and low noise.
3.All of the spindles can work together to save you more time and costs.
4.The lathe is founded by Thick-walled steel, provide user High load-bearing capacity, also ensures the high stability and longtime use.
5.Taiwan HIWIN square guide rails and Taiwan TBI ball screws with high precision, large load bearing and stable running.
6.High speed driver and motor enhance work efficiency.
7.DSP controller, easy to operate.
8.Equipped with professional Aluminum with PVC base with the high strength engineering plastics surface in order to ensure can bear large load and longtime working.

Multi Spindle, Heavy Duty Stone CNC Router for Marble, Granite, Wood

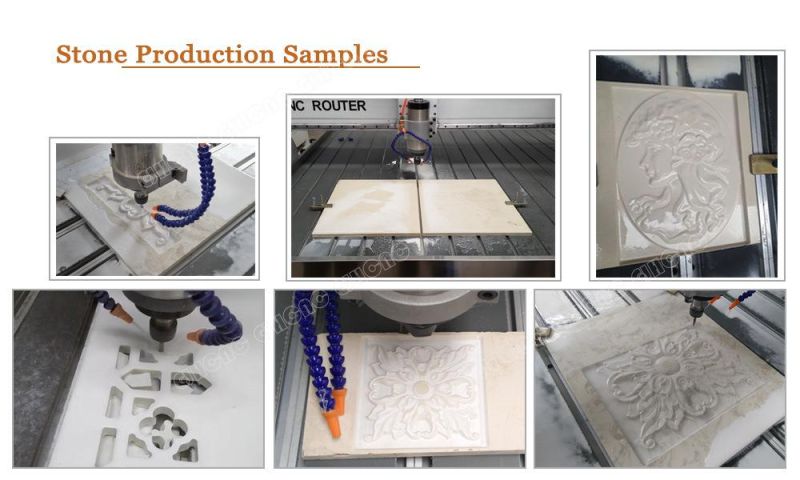

Tombstone carving, Building Decoration, large scale board engraving.
Advertising industry, Die industry, Relief sculpture, screen sculpture etc.
 Multi Spindle, Heavy Duty Stone CNC Router for Marble, Granite, Wood
NOPerformance indexPerformance indexParameter
1 Working area X area2800mm
   Y area1800mm
   Z area200mm
2 Table size 2800mm*1800mm
3 Accuracy Working precision0.05mm
   Repositioning precision0.05mm
4 Drive mode X axis Helical rack and pinion gear
   Y axis Helical rack and pinion gear
   Z axis Ball Screws
5 Speed Max traverse speed30000mm/min
   Max engraving speed12000mm/min
6 Spindle (water-cooling) Spindle power5.5KW
   Spindle speed0_24000r/min
7 Working mode Servo motor and driver
8 Operating voltage AC220V/50HZ ( as customer's request)
9 Command code G code
10 Operating system NC Studio
11 Net weight 3200KG
Configuration can be made as customer's request.


Multi Spindle, Heavy Duty Stone CNC Router for Marble, Granite, Wood



Multi Spindle, Heavy Duty Stone CNC Router for Marble, Granite, Wood


 Multi Spindle, Heavy Duty Stone CNC Router for Marble, Granite, Wood
1.Technical support by call, email or whats app
2. Friendly English version manual.
3. Engineer available to service machine overseas. Buyer should pay the fee.
4. Warranty period: 1 year for the whole machine and 6 months for spindle
5. Machine will be adjusted before dispatch.
6. Free training course in our factory.
7. Free suggestion and consulting, lifetime technical support

Customization is available.
When you have specific requirement about cnc router for Stone, Marble, Granite , please contact with us.
