• Model NO.：sand washer
• Finished Surface：Cleaning
• Certification：CE, ISO
• Condition：New
• Color：Customized
• Input Size：0-10mm
• Material：Granite, Marble, Basalt, Limestone, Quartz, Pebble
• Warranty：1 Year
• Transport Package：Transport Package
• Specification：15-200TPH
• Trademark：CHAENG
• Origin：Henan
• Production Capacity：15-200tph

Basic Info.

Model NO. sand washer Finished Surface Cleaning Certification CE, ISO Condition New Color Customized Input Size 0-10mm Material Granite, Marble, Basalt, Limestone, Quartz, Pebble Warranty 1 Year Transport Package Transport Package Specification 15-200TPH Trademark CHAENG Origin Henan Production Capacity 15-200tph

Product Description

Product Description

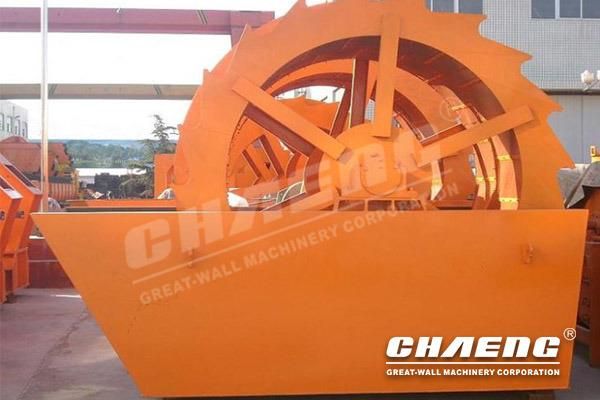

The sand washer is specially designed for washing, grading and dewatering of sandstone and river pebbles. Its novel sealing structure and adjustable overflow plate ensure high efficiency and durability, which is the best choice for upgrading domestic sand washing equipment.


Advantages of sand washer machine

1.The transmission device is separated from water and water material to avoid be damaged by submerging of water, sand and contaminants, which decreases the malfunction ratio;
2.The wheel impeller is well designed with high washing purity, big output, and less power consumption;
3.Simplified structure, stable operation

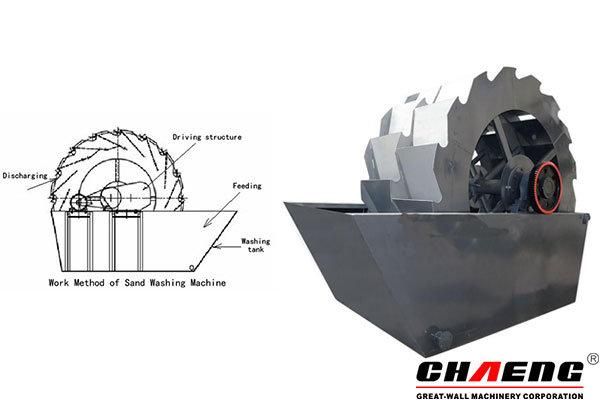

Working process of sand washer machine

During work, the motor drives the impeller to rotate slowly after deceleration through the V-belt, reducer, and gear. Sand and gravel enter the washing tank from the feed trough, tumbled under the impeller's drive, and grind each other to remove impurities covering the surface of the sand and gravel, while destroying the water vapor layer covering the sand grains to facilitate dehydration. At the same time, water is added to form a strong water flow, and impurities and small foreign matter with small specific gravity are taken away in time, and discharged from the overflow mouth washing tank to complete the cleaning effect. The clean sand and gravel are taken away by the blades, and finally the sand and gravel are poured into the discharge trough from the rotating impeller to complete the cleaning of the sand and gravel.


Specification of sand washer machine

Model	Wheel Diameter(mm)	Speed(r/min)	Max. Input Size(mm)	Washing Capacity(t/h)	Motor Power(kw)	Overall Dimension(mm)	Weight(kg)
XS2210	2200	2.5	≤10	15~30	4	3180×1955×2350	2260
XS2610	2600	2.5	≤10	20~50	5.5	3515×2070×2672	2500
XS2810	2800	1.2	≤10	50~80	11	3964×3014×2895	3200
XS2815	2800	1.17	≤10	60~100	11	3964×2137×2895	3580
XS3016	3000	1.2	≤10	70~110	11	4169×3456×3055	3850
XS3210	3200	1	≤10	80~120	15	4340×2760×3349	3950
XS3215	3200	1.17	≤10	95~130	15	4346×2198×3345	4185
XS3610	3600	1	≤10	110~200	15	4580×3218×3600	4600

CHAENG's Strength

1.Based on high-end and advanced equipment
With large casting base, machining and assembling workshop, CHAENG has strong casting and processing strength. All the main engines for the turnkey project are self-made, and other supporting auxiliary machines are bought from excellent brands at home and abroad, which means that we can control the whole quality and construction period of the project.
2.Multiple patents, controlling the core technologies
The company has a professional technical team in many fields with more than 100 people, such as technology, equipment, hydraulic, electrical and civil engineering. So we can design the whole sandstone aggregate production line independently. We stick to independent research and innovation all the time, continuously optimize product performance and improve the technological content of products. We have research center of aggregate, powder and high-performance concrete, so we can provide scientific and professional sandstone aggregate production system solutions for the customers.
CHAENG has won man honorary awards, such as "top 100 suppliers in China cement industry", "top 10 innovative enterprise in China cement industry", "high-growth private enterprise in Henan Province", "technological innovation demonstration enterprise of  energy conservation and emission reduction in Henan Province", "National high-tech enterprise" and so on.
