• Model NO.：vibrating screen
• Finished Surface：Vibrating Screen
• Certification：CE, ISO
• Condition：New
• Color：Customized
• Input Size：0-500mm
• Material：Granite, Marble, Basalt, Limestone, Quartz, Pebble
• Warranty：1 Year
• Application Industry：Sand Making Plant
• Transport Package：Transport Package
• Specification：40-1200TPH
• Trademark：CHAENG
• Origin：Henan
• Production Capacity：40-1200tph

Basic Info.

Model NO. vibrating screen Finished Surface Vibrating Screen Certification CE, ISO Condition New Color Customized Input Size 0-500mm Material Granite, Marble, Basalt, Limestone, Quartz, Pebble Warranty 1 Year Application Industry Sand Making Plant Transport Package Transport Package Specification 40-1200TPH Trademark CHAENG Origin Henan Production Capacity 40-1200tph

Product Description

Product Description

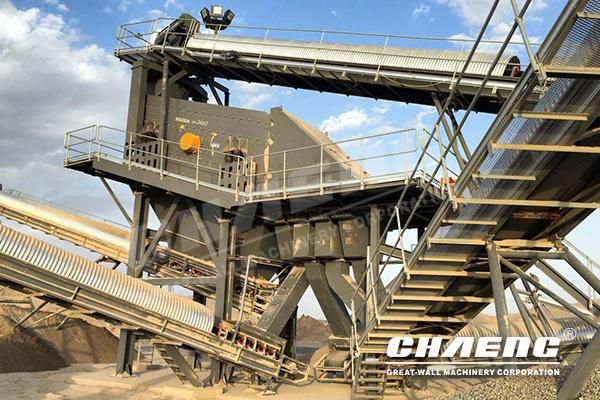

The vibrating screen adopts advanced design concept, with adjustable amplitude and long material screening flow line. Its Multi-layer screening, clear screening for various specifications at every level and high screening efficiency are especially suitable for screening sandstone in quarry.

Advantages of vibrating screen

1. Clear screening for various specifications at every level and high screening efficiency, suitable for screening sandstone in quarry.
2. Reliable work, adjustable vibration parameters and long life.
3. Simple structure, light weight and small size, easy for maintenance.
4. Low noise, low power consumption, good control flexibility, no material spilling phenomenon.



Working process of vibrating screen

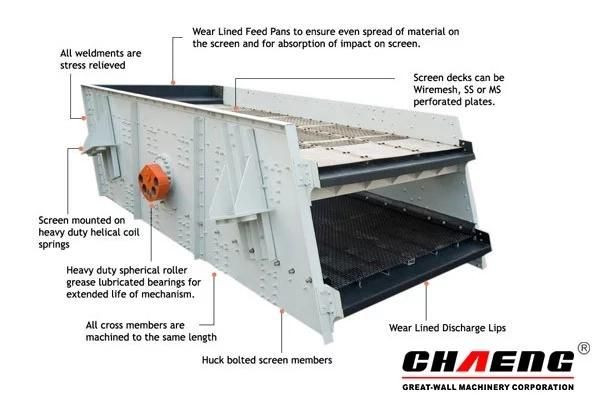

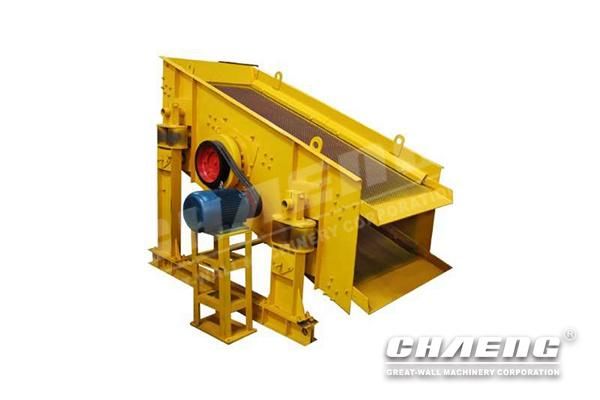

The vibrating screen machine uses the motor to drive the eccentric shaft to make the screen body periodically along with the direction of vibration force. The materials make circular movement on the screen to realize sieving. Circular vibrating screen consists of vibration source, screen body, screen mesh, shock absorbing device, base frame etc. It has the features of reasonable structure and long durability.
When the vibrating screen machine works, under the effect of vibrator, the screen box and screen surface will produce circular, elliptical or linear vibration, which will make the materials on the surface of screen disperse and move up and down. Thus, the fine particles can fall through the material layer and then are discharged from the screen aperture. And the bigger particles will continue to move forward under the effect of vibration.

Specification of vibrating screen

Model	Screen Area	Double Amplitude(mm)	Vibration Frequency(HZ)	Feed Size(mm)	Processing Capacity(t/h)	Screen Size(L×W)(mm)	Power(kw)
YK1245	5.4	6~8	16~17	0-25	40~150	1200×4500	11
2YK1245	5.4	6~8	16~17	0-200	40~150	1200×4500	11
3YK1245	5.4	6~8	16~17	0-150	40~120	1200×4500	15
YK1545	6.75	6~8	16~17	0-25	100~180	1500×4500	11
2YK1545	6.75	6~8	16~17	0-25	100~180	1500×4500	15
3YK1545	6.75	6~8	16~17	0-25	100~180	1500×4500	18.5
4YK1545	6.75	6~8	16~17	0-25	100~180	1500×4500	22
YK1848	8.64	6~8	16~17	300	100~250	1800×4800	18.5
2YK1848	8.64	6~8	16~17	150	100~500	1800×4800	22
3YK1848	8.64	6~8	16~17	300	100~200	1800×4800	22
YK1860	10.8	6~8	16~17	300	100~450	1800×6000	22
2YK1860	10.8	6~8	16~17	300	100~300	1800×6000	22
3YK1860	10.8	6~8	16~17	300	100~250	1800×6000	22
YK2160	12.6	6~10	13~15	300	100~864	2100×6000	22
2YK2160	12.6	6~10	13~15	300	150~800	2100×6000	30
3YK2160	12.6	6~10	13~15	300	150~800	2100×6000	30
4YK2160	12.6	6~10	13~15	300	150~800	2100×6000	30
YK2460	12.6	6~10	13~15	400	150~875	2400×6000	30
2YK2460	12.6	6~10	13~15	400	150~875	2400×6000	30
3YK2460	12.6	6~10	13~15	400	150~875	2400×6000	30
4YK2460	14.4	0~7	13~15	400	150~875	2400×6000	37
YK2865	18.2	0~7	13~15	400	150~875	2800×6500	37
2YK2865	18.2	0~7	13~15	400	150~875	2800×6500	37
3YK2865	18.2	0~7	13~15	400	150~875	2800×6500	45
4YK2865	18.2	0~7	16~17	500	200~875	2800×6500	45
YK3070	21	0~7	16~17	500	200~900	3000×7000	30
2YK3070	21	0~7	16~17	500	200~900	3000×7000	37
3YK3070	21	0~7	16~17	500	200~900	3000×7000	45
YK3270	22.4	0~7	16~17	500	200~950	3200×7000	37
2YK3270	22.4	0~7	16~17	500	200~950	3200×7000	45
3YK3270	22.4	0~7	16~17	500	200~950	3200×7000	2×37
YK3670	25.2	0~7	16~17	500	200~1100	3600×7000	45
2YK3670	25.2	0~7	16~17	500	200~1100	3600×7000	2×45
3YK3670	25.2	0~7	16~17	500	200~1200	3600×7000	2×45

CHAENG's Strength

1.Based on high-end and advanced equipment
With large casting base, machining and assembling workshop, CHAENG has strong casting and processing strength. All the main engines for the turnkey project are self-made, and other supporting auxiliary machines are bought from excellent brands at home and abroad, which means that we can control the whole quality and construction period of the project.

2.Multiple patents, controlling the core technologies
The company has a professional technical team in many fields with more than 100 people, such as technology, equipment, hydraulic, electrical and civil engineering. So we can design the whole sandstone aggregate production line independently. We stick to independent research and innovation all the time, continuously optimize product performance and improve the technological content of products. We have research center of aggregate, powder and high-performance concrete, so we can provide scientific and professional sandstone aggregate production system solutions for the customers.
CHAENG has won man honorary awards, such as "top 100 suppliers in China cement industry", "top 10 innovative enterprise in China cement industry", "high-growth private enterprise in Henan Province", "technological innovation demonstration enterprise of  energy conservation and emission reduction in Henan Province", "National high-tech enterprise" and so on.
