• Model NO.：JCS1530L
• Certification：CE, BV, TUV, SGS
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Type：Stone Granite Engraving CNC Router Machine
• Flat Working Size：1500mm*3000mm*500mm
• Rotary Working Size：800mm Diameter, 2000mm Length
• Spindle Power：5.5kw Water Cooling Spindle
• Control System：Ncstudio,Syntec
• Motor：Servo Motor
• Saw Blade Function：Yes
• Auto Oil System：Yes
• Option：Polishing Pad
• Transport Package：Protected by Film and Fastened with Metal Wires
• Specification：customized
• Trademark：CHAODA
• Origin：China

Basic Info.

Model NO. JCS1530L Certification CE, BV, TUV, SGS Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Type Stone Granite Engraving CNC Router Machine Flat Working Size 1500mm*3000mm*500mm Rotary Working Size 800mm Diameter, 2000mm Length Spindle Power 5.5kw Water Cooling Spindle Control System Ncstudio/Syntec Motor Servo Motor Saw Blade Function Yes Auto Oil System Yes Option Polishing Pad Transport Package Protected by Film and Fastened with Metal Wires Specification customized Trademark CHAODA Origin China

Product Description

stone granite engraving cnc router machine engraver price

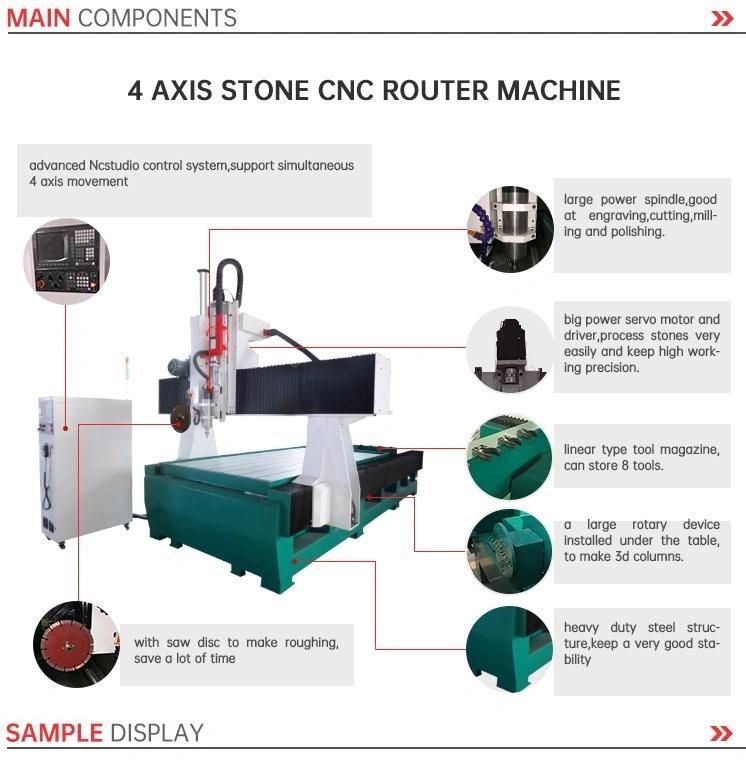

• Heavy duty steel structure, keep machine with very good stability.
• Adopt good quality machine parts,to make machine with high performance and durability.
• Multi-function, machine is with both rotary device and flat able,can process 3d columns,also can process plane materials.
• The big rotary device can process different kinds of 3d roman columns corbel pilasters cylinders pillars.
• With saw blade function,for fast rough machining,10 times saved working time.

Model No.	JCS1530L
Lathe bed	heavy duty steel structure
Table	Removable,T-slot with clamps
Flat Working size	1500*3000*500mm
Rotary Working size	800mm diameter, 2000mm length
Spindle power	5.5kw /7.5kw BT30 water cooling ATC spindle
Spindle rotating	18000 /24000rpm
Max.travelling speed	55m/min
Max.working speed	20m/min
Tool magazine	Linear type automatic tool changer, 8 tools ability
Control system	4 Axis Nsctudio /Syntec
Motor	Servo
Saw blade unit	yes
Auto oil system	yes
Voltage	AC380v,3 phase,50Hz

It can work on many materials like Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone,Travertine, Quartzite,
Slate, Grindstone ,Jade, Crystal, Glass, Acrylic, Wood, PVC, EPS Foam, Aluminum composite panel, Aluminum block, Copper and so on.

1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
