Stone Marble Cutting Engraving 5 Axis CNC Router Machine
Linyi Chaoda International CNC Technology Co., Ltd.- Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
- Application Material：Marble, Granite,Stone,Wood
- Automation：Semi-automatic
- Control：CNC
- Motor Power：Middle Power
- Engraving Head Speed Adjustability：Wide Adjustable Range
Base Info
- Model NO.：JCS1520R 5AXIS
- Certification：CE, BV, TUV, SGS
- Current：AC
- Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
- Customized：Customized
- Model：Stone Marble Cutting Engraving 5 Axis CNC Router
- Lathe Bed Structure：Heavy Duty Steel Structure
- Rotary Working Size：1500mm Diameter, 2000mm Length
- Spindle Power：11kw Water Cooling
- Driving System：Japan Servo Motor and Driver
- Control System：Syntec
- Auto Oil System：Yes
- Option 1：Double Rotary
- Option 2：4 Axis Rotary
- Option 3：3D Scanner
- Transport Package：Protected by Film and Fastened with Metal Wires
- Specification：4.1m * 3.3m * 4m
- Trademark：CHAODA
- Origin：China
Description
Basic Info.
Model NO. JCS1520R 5AXIS Certification CE, BV, TUV, SGS Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Model Stone Marble Cutting Engraving 5 Axis CNC Router Lathe Bed Structure Heavy Duty Steel Structure Rotary Working Size 1500mm Diameter, 2000mm Length Spindle Power 11kw Water Cooling Driving System Japan Servo Motor and Driver Control System Syntec Auto Oil System Yes Option 1 Double Rotary Option 2 4 Axis Rotary Option 3 3D Scanner Transport Package Protected by Film and Fastened with Metal Wires Specification 4.1m * 3.3m * 4m Trademark CHAODA Origin ChinaProduct Description

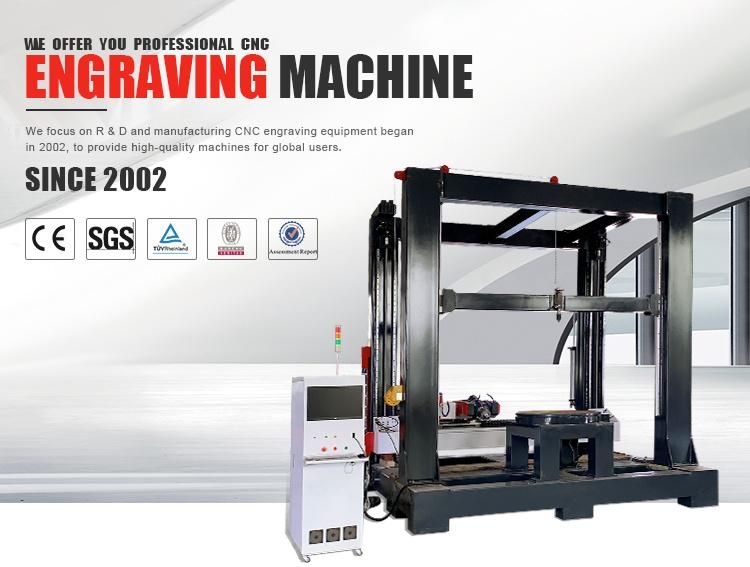

stone marble cutting engraving 5 axis cnc router machine

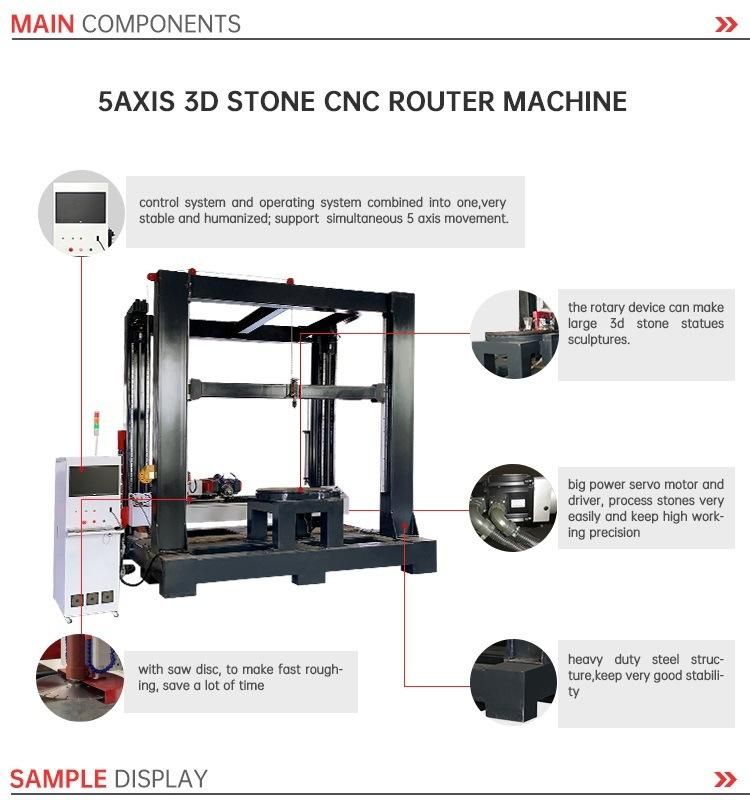

- Heavy duty steel structure, keep machine with very good stability.
- Adopt top quality machine parts,to make machine with high performance and durability.
- Machine is with a big 5 axis rotary device, can process different kinds of 3d stone statues sculptures roman columns corbel pilasters cylinders pillars...
- With saw blade function,for fast rough machining,10 times saved working time.
- Advanced Syntec control system,very stable and convenient to use.
| Model No. | JCS1520R 5AXIS |
| Lathe bed | heavy duty steel structure |
| Table | No |
| Rotary Working size | 1500mm diameter, 2000mm length |
| Spindle power | 11kw water cooling spindle |
| Spindle rotating | 12000rpm |
| Max.travelling speed | 55m/min |
| Max.working speed | 15m/min |
| Control system | 5 Axis Syntec |
| Motor | Servo |
| Saw blade function | yes |
| Auto oil system | yes |
| Voltage | AC380v,3 phase,50Hz |
It can work on many materials like Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone,Travertine, Quartzite,
Slate, Grindstone ,Jade, Crystal, Glass, Acrylic, Wood, PVC, EPS Foam, Aluminum composite panel, Aluminum block, Copper and so on.
1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
