• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max.Cut Size(L*W*H)：3200mm*2000mm*170mm
• Automatic Blade：Tilting 0-45 Degree for Miter Cuts
• Functional Table 1：Tilting 0-85 Degree for Materials Loading
• Functional Table 2：Rotating 0-360 Degree Stopped Any Position
• Spindle Motor：15kw 20HP
• Size(L*W*H)：6m*5m*3m
• Weight：7200kg
• Transport Package：Water-Proof Plastic Packing
• Specification：Dimention: 6M*5M*2.6M
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641090
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max.Cut Size(L*W*H) 3200mm*2000mm*170mm Automatic Blade Tilting 0-45 Degree for Miter Cuts Functional Table 1 Tilting 0-85 Degree for Materials Loading Functional Table 2 Rotating 0-360 Degree Stopped Any Position Spindle Motor 15kw 20HP Size(L*W*H) 6m*5m*3m Weight 7200kg Transport Package Water-Proof Plastic Packing Specification Dimention: 6M*5M*2.6M Trademark AGA Origin Xiamen, China HS Code 84641090 Production Capacity 200 Sets/Month

Product Description

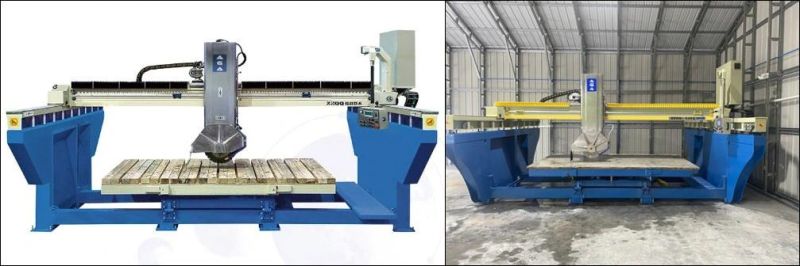

China Good Price CNC Machine Auto Stone Bridge Saw Cutting Granite Marble Quartz
Product No.XZQQ625A
Bridge saw XZQQ625A is monoblock made with full functions, preferable for granite marble quartz cutting. We sent it quite a lot to granite marble fabricators, customers paid and they got the machines and very happy.
If you are looking for a reliable robust saw for countertops, slabs or tiles cutting, this is exactly what you need.

CNC machine granite bridge saw marble bridge saw specification:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

CNC machine granite bridge saw marble bridge saw advantages:
Y axis side walking group and X axis cutting movement group, control racks, pinions, linear rails and ball-bearings are working in oil pool. All moving parts are protected from water and dust by covering.
The design of the machine provides the user safe and easy exploitation, high performance and productivity.
All comandulli machines are manufactured not only to perform consistently at the highest level for many years, but also to enable longevity of the machine.
The machine structure goes through a metallization process, and is finished with a special cataphoresis painting treatment allowing both a long rust free life, and great looks.


CNC machineg bridge saw marble bridge saw introduction:

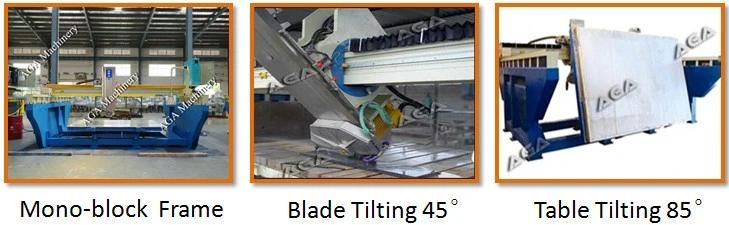

Bridge saw is monobloc structural fram, it is easy for loading, transportation and installation.

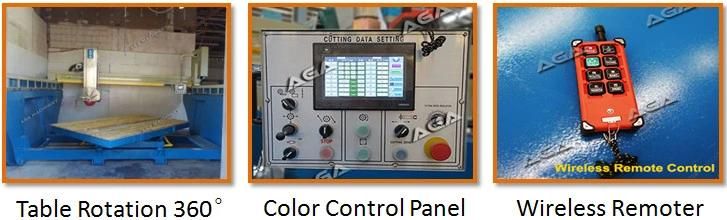

Worktable can rotate 0-360° and tilt 0-85°, easy for cutting direction changing and slab loading.
Blade provides autoamtic power tilting of 0-45° for miter cutting.

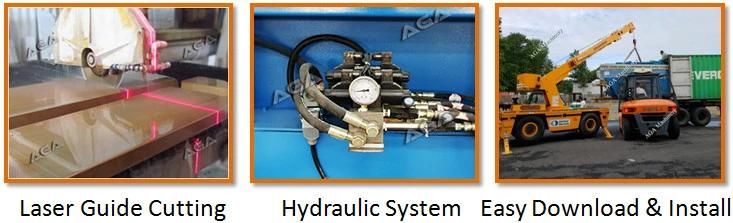

Equipped with infrared device, precise cutting location reachable.
PLC control system, programmable, fully automatic & smooth feeding.
Automatic water control saves every drop.
Touch-sensitive operating system, friendly human-machine interface design.
Wireless remote provides easy control of this bridge saw.
Movements of bridge rails are in covered oil bath ensuring smooth movements and reduced wear.
Electric parts of good international brand adopted, reliability guaranteed.
Wide bridge structure with crossbeam, large size of slab cutting available.


Why Choose AGA Machienry:
1) AGA is professional:
AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.
2) AGA is experienced:
The equipment have been successfully exported to world market in U.S.A, Canada, Europe, Mid East, Egypt, India,etc. Customers are happy with our machines.
3) AGA is passionate:
We care about customers because by choosing us you are giving a chance make your machine more productive that also mackes your products unrivaled in the competitive market. We supply pre-sell service and after-sell service.

Key words:
Stone bridge saw, granite bridge saw, marble bridge saw, stone saw, granite saw, bridge saw, slab saw, slab cutting, slab sizing, slab sawing, cnc machine, cnc cutting machine, stone cnc machine, bridge cutting machine, marble cutting machine, tile cutter, etc.


FAQ:
1) Payment:
T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.


Any questions please feel free to inform us, we're more than happy to serve you!
