• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max.Length of Cutting (Table Size)：3200*2000mm
• Max Cut Thick：170mm
• Table Tilts for Materials Loading：0-85 Degree
• Table Rotaion：0-360 Degree Stopped Any Postion
• Blade Tilts for Miter Cuts：0-45 Degree
• Blade Size：400-625mm
• Power of Spindle Motor：15 Kw 20HP
• Dimention(L*W*H)：6*5*2.6m
• Repeat Cutting：99 Repeat Cutting by Program
• Transport Package：Water-Proof Package
• Specification：Weight: 1500kg
• Trademark：AGA
• Origin：China
• HS Code：84641010
• Production Capacity：200sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max.Length of Cutting (Table Size) 3200*2000mm Max Cut Thick 170mm Table Tilts for Materials Loading 0-85 Degree Table Rotaion 0-360 Degree Stopped Any Postion Blade Tilts for Miter Cuts 0-45 Degree Blade Size 400-625mm Power of Spindle Motor 15 Kw 20HP Dimention(L*W*H) 6*5*2.6m Repeat Cutting 99 Repeat Cutting by Program Transport Package Water-Proof Package Specification Weight: 1500kg Trademark AGA Origin China HS Code 84641010 Production Capacity 200sets/Month

Product Description

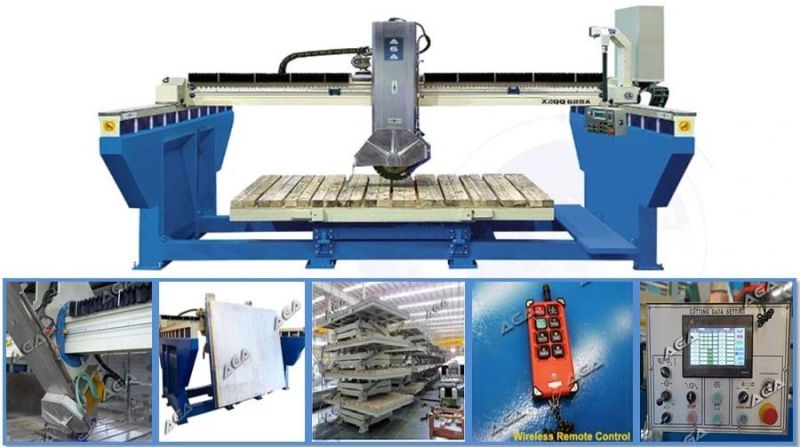

Robust Monoblock CNC Machine Granite Bridge Saw Cutting Countertops Fast and Easy
Product No. XZQQ625A

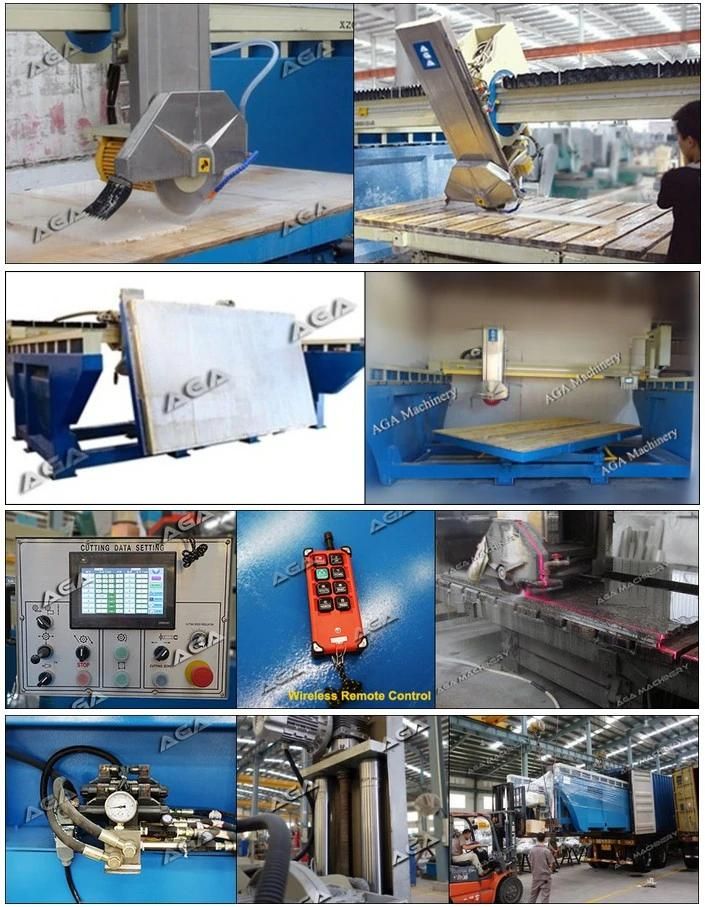

Bridge saw XZQQ625A is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble and quartz stones.  This saw is monoblock made with full functions, including strong steel frame, pendant control panel, color touch screen, wireless remote, laser guide, tilting blade, tilting and rotation table, blade tilting, hydraulic pump, etc.

Stone cnc machine/ granite bridge saw:
Automatic bridge saw prefarble for cutting granite, marble, quartz and engineered stones. Applicable for cutting and fabricating slab, counter tops, vanity top, etc.


CNC machine granite bridge saw technical parameters:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

CNC machine granite bridge saw introduction:

The tilting head of the bridge saw machine provides 0°-45°for miter cut very excellent performance in cutting and fabricating stones. The max.cut size of stone can be 3200 × 2000mm×170mm in Length× Width×Thickness.
Bridge saw main structures are made of very strong cast iron and stainless steel for protection. Powered table tilts 0-85 degree hydraulic for easy load of material. It rotates 0°-360° stopping automatically at 45°, 90° and any angle for changing cutting position.
Automated programming, it is PLC control, electric system is very simple and easy to operate. All functions are operated on the color touch screen control panel with live data. Besides, wireless remote provides easy control of the saw making its users very friendly.
This bridge saw is an full automatic laser cutting machine. Laser guide shows precision cutting every time in +/-0.2mm making beautiful slabs, tiles, counter tops, etc. Automatic water control saving every drop.


FAQ:1) Payment:
T/T in advance, we accept 30% deposit and 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.


Key words:
Stone bridge saw, granite bridge saw, stone cutting machine, granite cutting machine, bridge saw, slab cutting machine, stone saw, granite saw, slab sawing machine, granite sawing machine, cnc machine, cnc cutting machine, etc.


AGA Machinery:

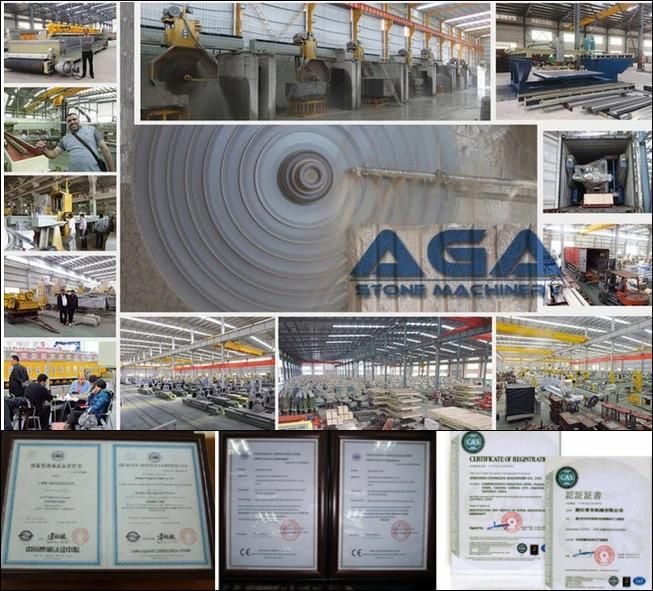

AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.



If you have any questions please feel free to inform us, we're more than happy to serve you!
