• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, Co
• Product Name：High Frequency Electric Wire Saw
• Model：Yg-300
• Min Output Power：33HP
• Shaft Output Speed：350,940,1300r,Min
• Max Wire Length：18m
• Unit Weight of Cutting Machine：64kg
• Main Motor Weight：14kg
• Weight：98kg
• Output Power：22,25kw
• Main Motor Flow：40-100L,Min
• Electric Wire Saw：Electric Wire Saw
• High Frequency Wire Saw：High Frequency Wire Saw
• Wire Saw：Wire Saw
• Wire Saw Cutting Machine：Wire Saw Cutting Machine
• Wire Saw Machine：Wire Saw Machine
• Transport Package：Wooden Case.
• Specification：Hydraulic Diamond Wire Saw Machine
• Trademark：YUGONG
• Origin：China
• HS Code：8464102000
• Production Capacity：1000 Sets,Week

Basic Info.

Automation Automatic Cutting Ability High Speed Control CNC Certification API, CCC, UL, SONCAP, GOST, ISO, CE, Co Product Name High Frequency Electric Wire Saw Model Yg-300 Min Output Power 33HP Shaft Output Speed 350/940/1300r/Min Max Wire Length 18m Unit Weight of Cutting Machine 64kg Main Motor Weight 14kg Weight 98kg Output Power 22/25kw Main Motor Flow 40-100L/Min Electric Wire Saw Electric Wire Saw High Frequency Wire Saw High Frequency Wire Saw Wire Saw Wire Saw Wire Saw Cutting Machine Wire Saw Cutting Machine Wire Saw Machine Wire Saw Machine Transport Package Wooden Case. Specification Hydraulic Diamond Wire Saw Machine Trademark YUGONG Origin China HS Code 8464102000 Production Capacity 1000 Sets/Week

Product Description

Diamond Cutting Equipment High Frequency Electric Wire Saw

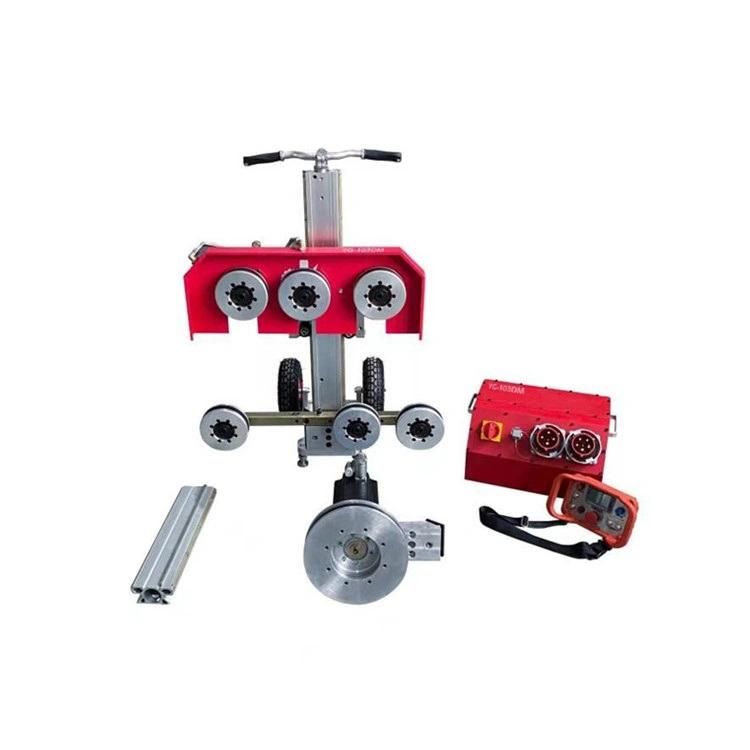

High frequency wire saw, 17kw high frequency motor, wireless remote control unit, tool box

Introduction

Diamond Wire Saw Machine is a leading advanced cutting construction equipment, which is widely used in the construction of buildings, bridges, tunnels etc. for thick concrete, irregular concrete and so on.In order to ensure that all walls are demolished quickly, environmentally, and safely, our company adopts the most advanced static cutting technology in China. Static cutting process features:

1. Static cutting without vibration.

Since the cutting is done during the grinding of the reinforced concrete by the diamond tool, there is no vibration problem, no impact on the original retaining structure, no micro cracks will occur, and the structural stress and service life will not be affected which the traditional demolition cannot do.

2, Low noise.

Only the sound of grinding reinforced concrete was used in the diamond tool cutting process. The electrohydraulic motor operated smoothly and there was no harsh sound throughout the construction. The volume generated could be controlled within 44dBA.

3, No pollution.
During construction, water is used to cool and lubricate high-speed diamond tools. The scrap iron and concrete debris are carried away. The cooling water produced is free from harmful substances. The cooling water can be reused after being recycled on site and closed. The system controls the splash of water.

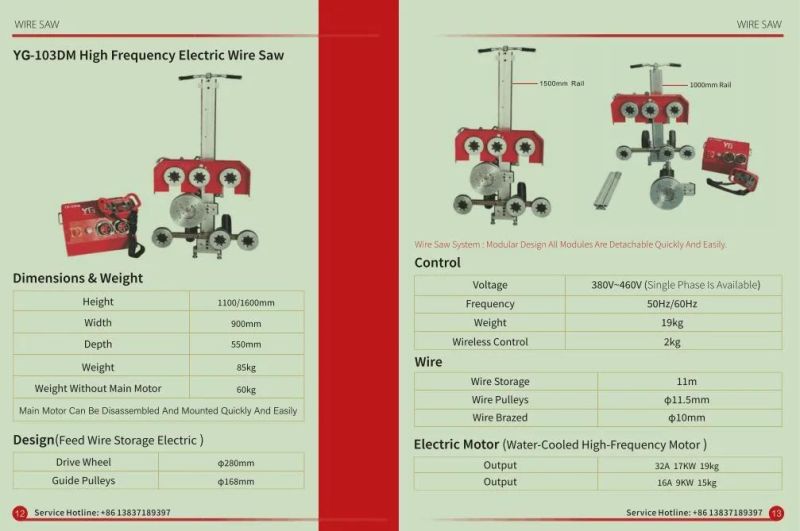

Parameters




Features
1. It can cut and dismantle large-scale reinforced concrete structures without being restricted by the size and shape of the volume to be cut;
2, Can achieve any direction of cutting, such as horizontal, vertical, diagonal direction;
3, Rapid cutting can shorten the duration. Cutting efficiency: about 2m2/h;
4. Solved the problems of vibration, noise, dust and other environmental pollution in the process of conventional demolition construction;
5, Long-distance operation control can achieve underwater, hazardous work areas and other specific circumstances, where general equipment / technology is difficult to complete the cutting.

We also have hydraulic wire saw and common electric wire saw for your reference.

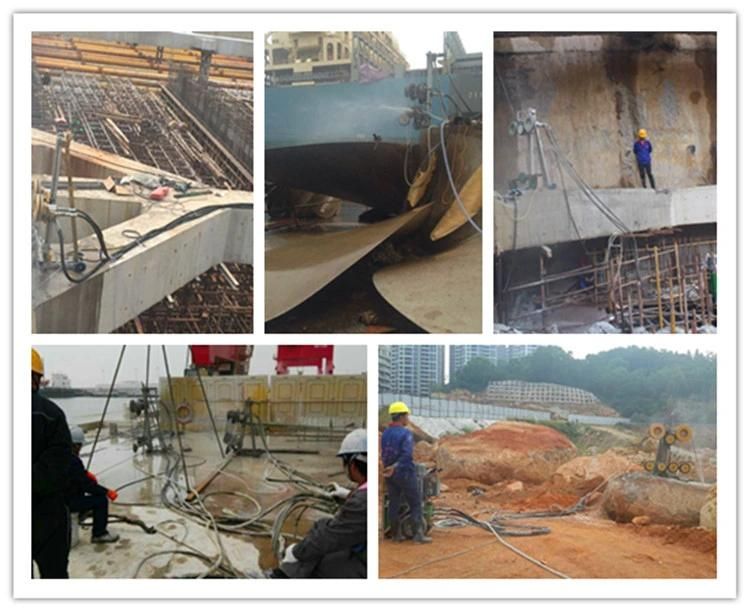

Working Sites

Wire saws are cutting and dismantling equipment for thick concrete and irregular concrete. For example: girders, supports, high-speed rail piers, equipment foundations, and other concrete structures.
If it needs to be partially dismantled, it can only be cut with a wire saw. The method of use is flexible, horizontal cutting and vertical cutting are all possible.
