• Model NO.：BD1630
• Motor Power：High Power
• Engraving Head Speed Adjustability：Wide Adjustable Range
• Certification：CE, ISO, GOST, SONCAP, UL, CCC, API
• Current：AC
• Application：Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Max Working Size：1600*3000mm
• Feed Height：240mm
• Maximum Running Speed (Xyz)：10,10,3,M
• Spindle Motor Power：5.5kw
• Spindle Speed：1000r,Min
• Cutting Tool Cooling Method：Circulating Water
• Total Power：16kw
• Voltage：380V,50Hz
• Machine Dimension：4000*3200*2100mm
• Transport Package：Wooden Case Package
• Specification：1600*3000mm
• Trademark：Boiro
• Origin：China
• HS Code：84659900
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. BD1630 Motor Power High Power Engraving Head Speed Adjustability Wide Adjustable Range Certification CE, ISO, GOST, SONCAP, UL, CCC, API Current AC Application Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Max Working Size 1600*3000mm Feed Height 240mm Maximum Running Speed (Xyz) 10/10/3/M Spindle Motor Power 5.5kw Spindle Speed 1000r/Min Cutting Tool Cooling Method Circulating Water Total Power 16kw Voltage 380V/50Hz Machine Dimension 4000*3200*2100mm Transport Package Wooden Case Package Specification 1600*3000mm Trademark Boiro Origin China HS Code 84659900 Production Capacity 300 Sets/Month

Product Description

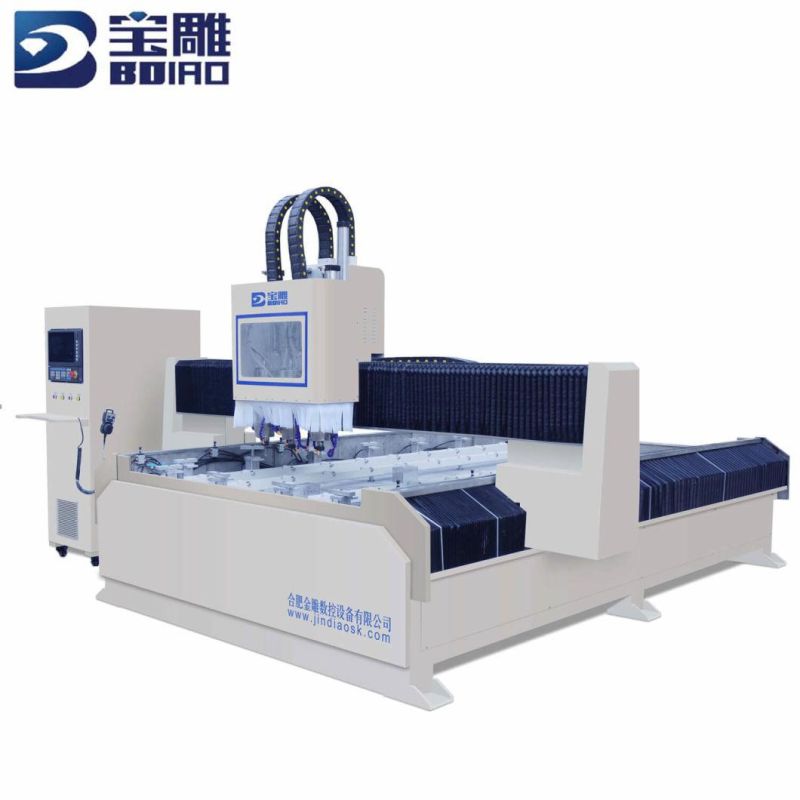

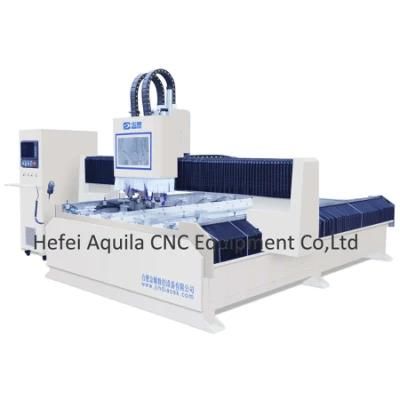

Stone Tools Change CNC Router Machine/CNC Cutting Machine/CNC Engraving Machine
Keywords: 15 years experience of production
                  ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                 Three Brands: Mars, Golden Eagle, Boiro
                 Technicist who go abroad to offer after-sale service






Technical Paramters:


Model	BD1630 Double Processes Stone CNC Router
Working area	1600mm*3000mm*240mm
Machine size	4000mm* 3200mm*2100
Working accuracy	±0.08mm
Re-positioning accuracy	±0.05mm
Spindle Motor Power	5.5KW water cooled
Spindle Rotational Speed	8000-10000r/min
Oil System	Automatic Oil system
Suction Cup	6 pcs
Table	Aviation aluminum plate + engineering plastic table top
Vacuum Pump	7.5kw
Electric Appliance	Germany Schneider
Reducer	Planetary reducer
Hand Wheel	Electronics Hand Wheel
Guide Rail	Taiwan imported linear guide rail PMI
Drive System	X/Y axis helical rack & pinion, Z axis Taiwan ball screw
Drive Motor	Stepper motor (Servo motor is optional)
Inverter	Fuling/ Zoncn
Dictate Format	G-Code / HPGL
Working Voltage	AC380V 3PH 50HZ

Applicable Scope:

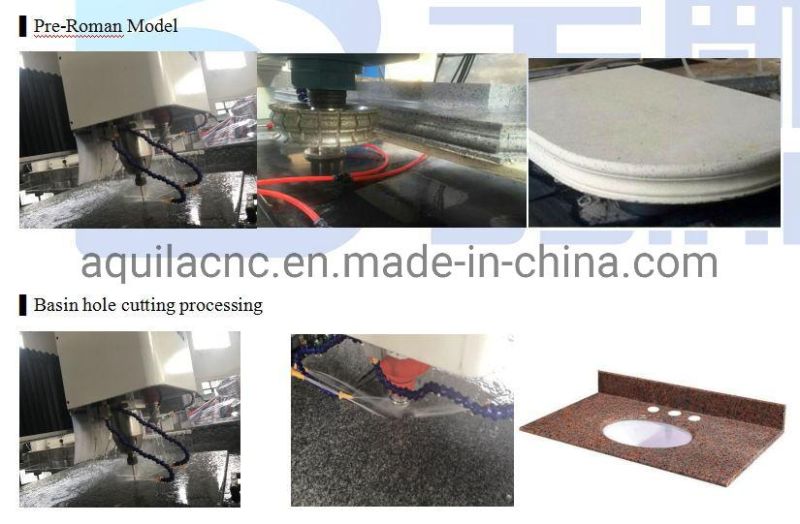

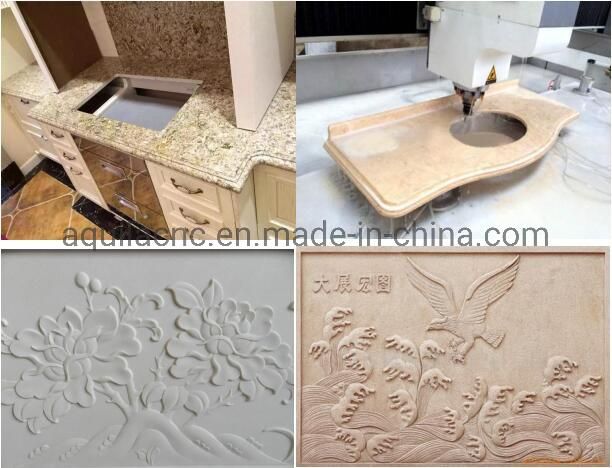

Suitable for artificial stone, quartz stone, marble countertops and wash basins, tea tray carvings, European style edging, and other heterosexual stone, ceramic, glass and microcrystalline stone drilling, sanding, chamfering, engraving and so on.
