• Model NO.：HLSQ-650
• Usage：Ceramics, Granite, Marble
• Application：Machinery & Hardware, Art & Craft, Stone Industry
• Source Voltage：380V
• Automation：Automatic
• Cutting Ability：High Speed
• Control：Siemens PLC
• Certification：ISO, CE
• Head Rotate 4 Positions：0,90,180,270degree
• Head Tilting Position：45 Degree
• Table Rotate：0-360 Degree
• Table Tilt：0-85 Degree
• Guide Rail：Linear Guide
• Gearing：Rack Gear
• Color：Red and Ivory
• Diamensions of Working Platform：3300*2000mm
• Gross Weight：5800kg
• Transport Package：Plastics Packing
• Specification：5750(L)*3600(W)*3400(H)mm
• Trademark：Hualong
• Origin：Putian, Fujian, China
• HS Code：84641010
• Production Capacity：50PCS,Month
• Package size per unit product：5750.00cm * 3600.00cm * 3400.00cm
• Gross weight per unit product：5800.000kg

Basic Info.

Model NO. HLSQ-650 Usage Ceramics, Granite, Marble Application Machinery & Hardware, Art & Craft, Stone Industry Source Voltage 380V Automation Automatic Cutting Ability High Speed Control Siemens PLC Certification ISO, CE Head Rotate 4 Positions 0/90/180/270degree Head Tilting Position 45 Degree Table Rotate 0-360 Degree Table Tilt 0-85 Degree Guide Rail Linear Guide Gearing Rack Gear Color Red and Ivory Diamensions of Working Platform 3300*2000mm Gross Weight 5800kg Transport Package Plastics Packing Specification 5750(L)*3600(W)*3400(H)mm Trademark Hualong Origin Putian, Fujian, China HS Code 84641010 Production Capacity 50PCS/Month

Packaging & Delivery

Package size per unit product 5750.00cm * 3600.00cm * 3400.00cm Gross weight per unit product 5800.000kg

Product Description

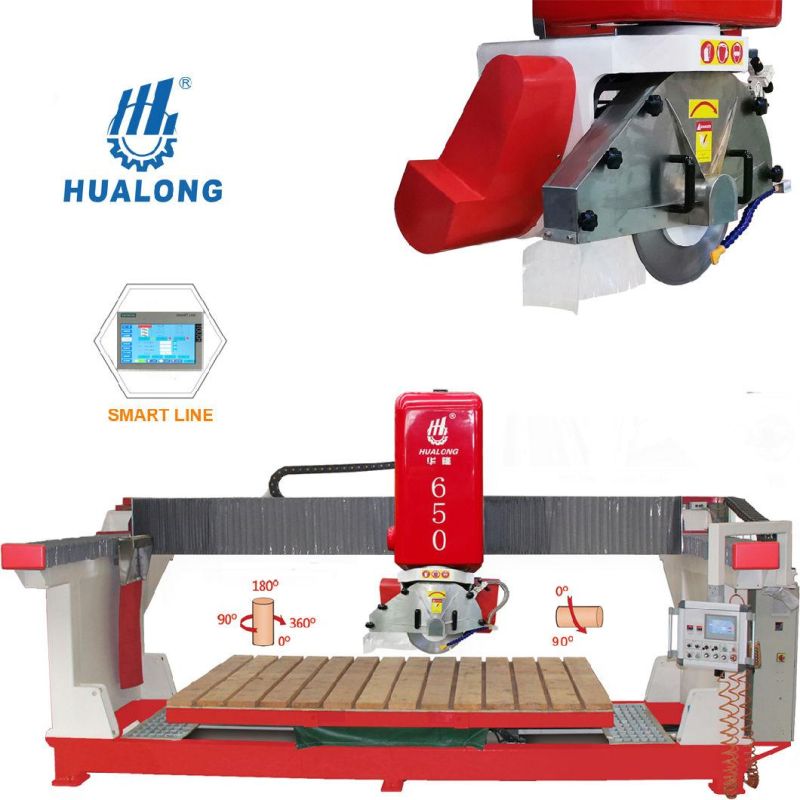

Full Automatic Bridge Stone Cutting Machine HLSQ-650 with function of 0°-90°-180°-270° full automatic positioning, chamfering and cutting,  is suitable for  processing stone slab cut to size, tombstone, skirtboard etc.



Main Features

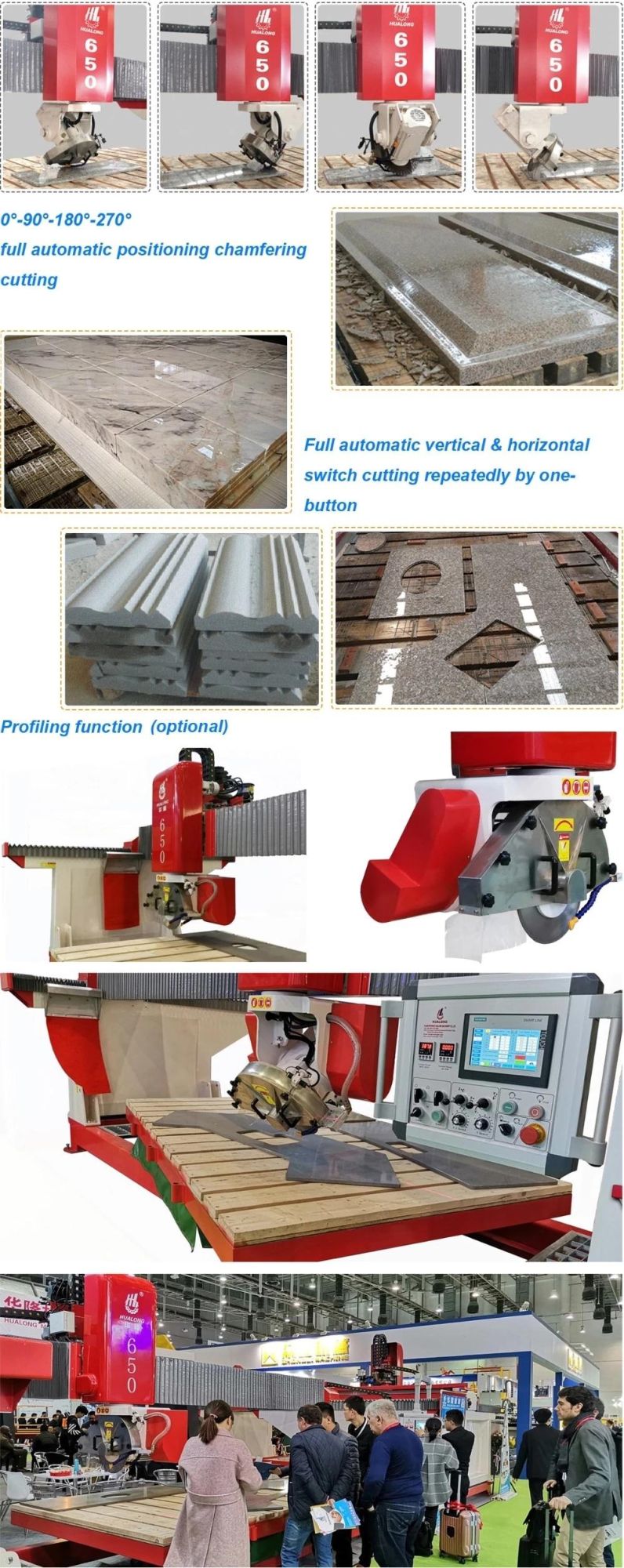

1.Blade can tilt 0-90° ,full automatic vertical and horizontal switch cutting repeatedly by one-button, 0°-90°-180°-270° automatic positioning chamfering cutting.

2.Worktable can rotate 0-360° and tilt 0-85°, easy for cutting direction changing and slab loading.

3. Crossbeam and carling adopt Taiwan's Hiwin linear guide to move, which ensure high precision of cutting and long life.

4. Using Siemens PLC control system with and touch-sensitive screen offer friendly and inteligent control.

5. Electric components adopts Siemens or Schneider brand

6. Laser checking and calibration instrument to aid in lining up the cut.

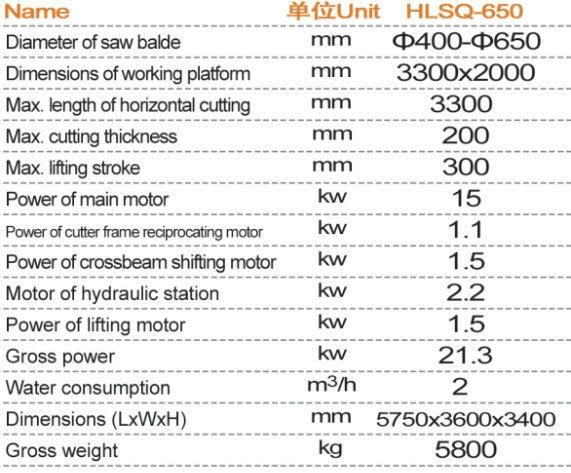

Technical Data


Detailed Images

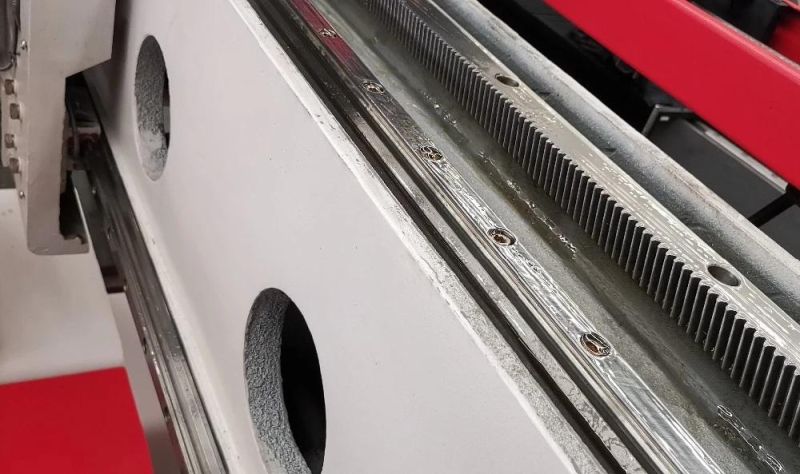

Linear Guide

Brand: Hiwin

Original: Taiwan, China


Famous products, top quality use on crossbeam and carling for good performance and long lifespan.

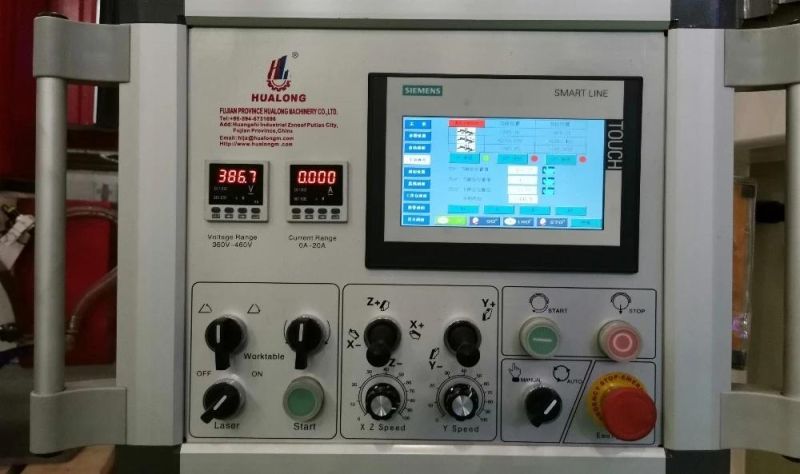

Control system


Brand: Siemens

Use advanced PLC control system with touch screen to achieve multi programming methods, including manual programming or PC processing operation for powerful functions.

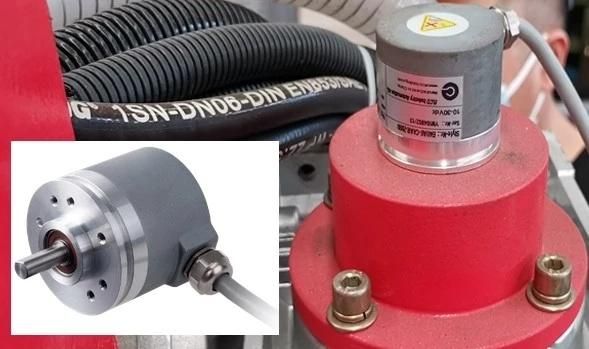

Machine Part

Name: Incremental Encoder

Brand: ELCO from Germany


For the determination of head movement in  X, Y, Z direction and worktable rotation to ensure position precision without the slightest deviation.

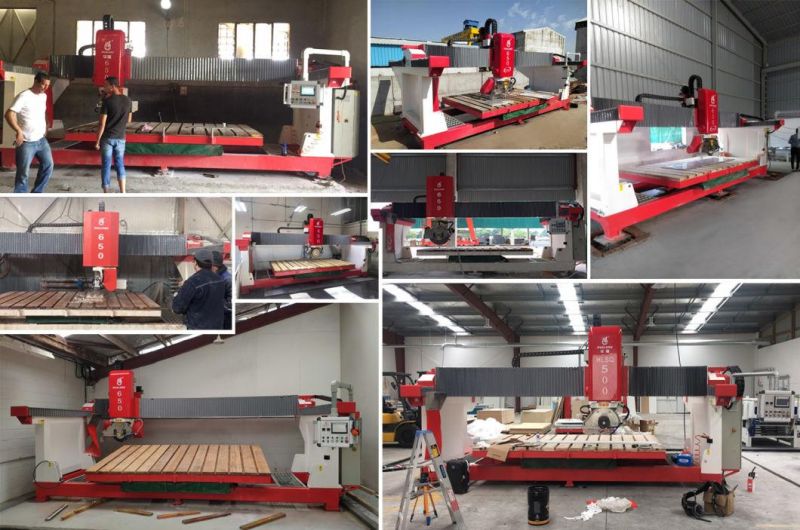

Customer Factory
