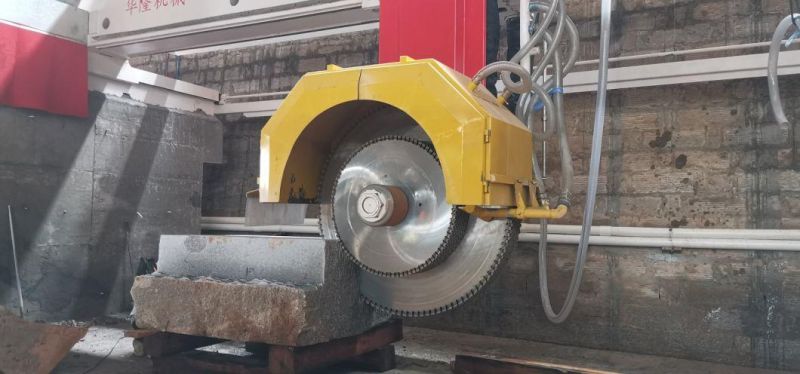

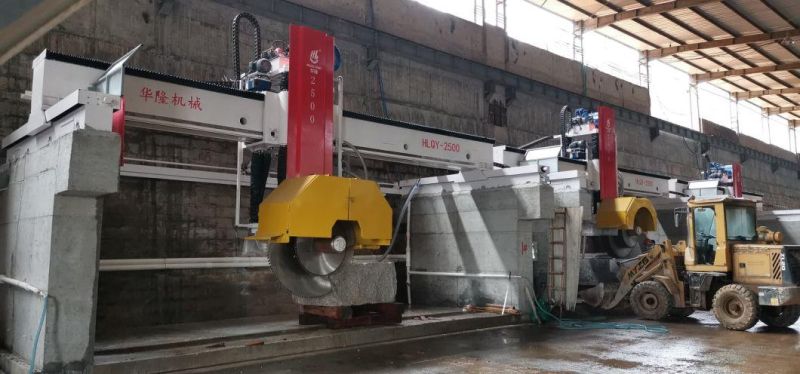

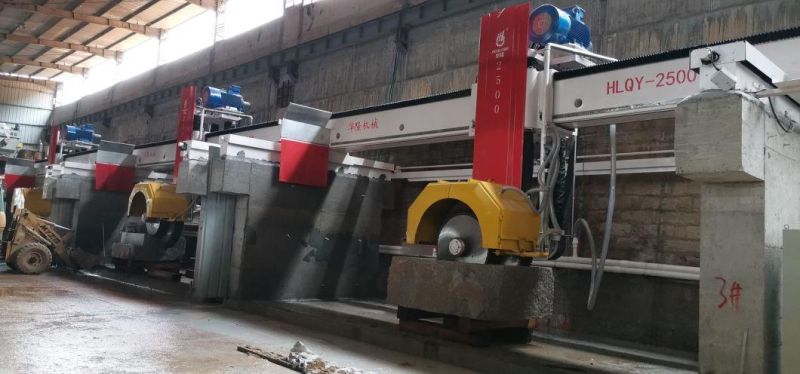

Bridge Type Hydraulic up and Down Multi Disc Marble Granite Stone Cutting Machine for Slabs Cutting Stone Saw Hlqy-2500
Fujian Province Hualong Machinery Co., Ltd.- Warranty：1 Year
- Type：Hydraulic Cutting Machine
Base Info
- Model NO.：HLQY-2500
- Usage：Ceramics, Granite, Marble
- Application：Machinery & Hardware, Art & Craft, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed
- Control：PLC
- Certification：ISO, CE
- Stone Can Cut：Marble and Granite
- Drive：Lead Screw Drive
- Guide：Linear Guide Rail
- Main Motor Power：55(4p)Kw
- Gross Power：62.3kw
- Mx. Blade Diameter：φ2500mm
- Cutting Length：3500mm
- Cutting Width：2000mm

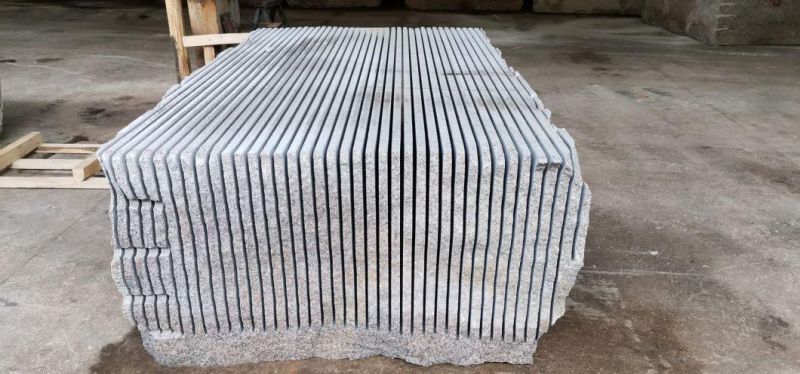

- Slab′s Thickness Can Cut：17,20,30mm,etc.
- X Axis Maximum Stroke：13m,MIM
- Transport Package：Plastic Film Packing
- Specification：7800x5000x4500mm
- Trademark：Hualong
- Origin：Putian, Fujian, China
- HS Code：84641090
- Production Capacity：50PCS,Month
- Package size per unit product：7800.00cm * 5000.00cm * 4500.00cm
- Gross weight per unit product：13000.000kg
Description
780x500x450
2) Adopts 4 pillars for spindle sliding, which ensure the structure of the machine is steady and the lifting is stable.
3) Two-slider frame structure driven synchronized by screw with high stiffness and stability.

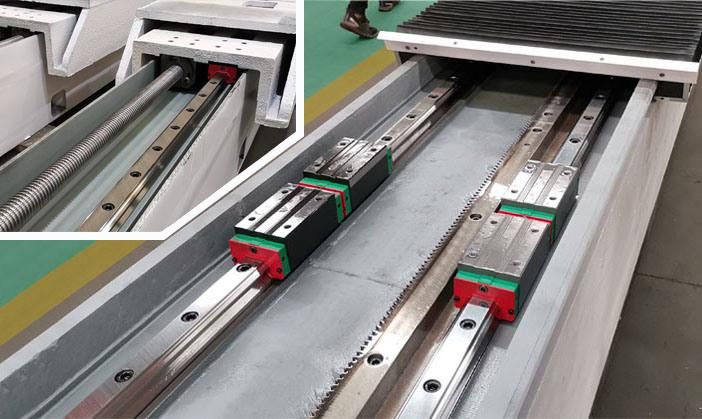

4) Sliding system of X and Y axes on linear guides and racks both in oil bath lubrication grants smooth and high production.
Main Features

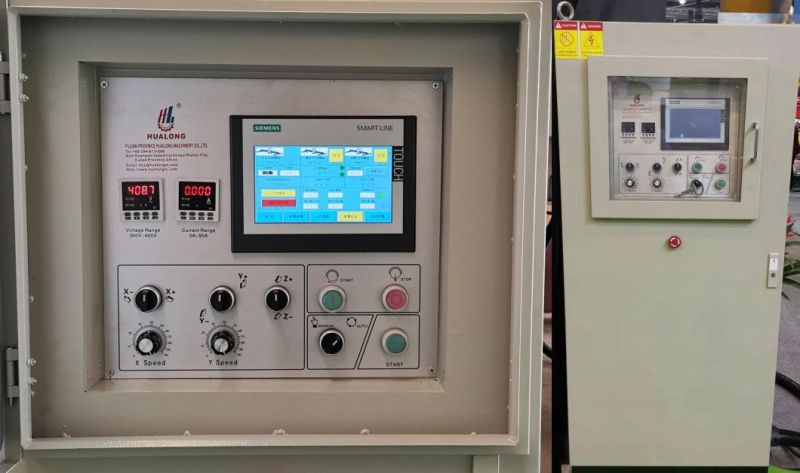

1) Siemens smart PLC control system makeshigh automation performance and easy.2) Adopts 4 pillars for spindle sliding, which ensure the structure of the machine is steady and the lifting is stable.
3) Two-slider frame structure driven synchronized by screw with high stiffness and stability.
4) Sliding system of X and Y axes on linear guides and racks both in oil bath lubrication grants smooth and high production.
