• Model NO.：Stone Crusher Plant
• Finished Surface：Outer Surface Process
• Certification：CE, ISO
• Condition：New
• Color：According to Customer Needs
• Transport Package：Standard Packaging
• Specification：>300t,h
• Trademark：CHAENG
• Origin：Xinxiang City, Henan Province, China
• Production Capacity：5000 PCS , Year

Basic Info.

Model NO. Stone Crusher Plant Finished Surface Outer Surface Process Certification CE, ISO Condition New Color According to Customer Needs Transport Package Standard Packaging Specification >300t/h Trademark CHAENG Origin Xinxiang City, Henan Province, China Production Capacity 5000 PCS / Year

Product Description

Stone Crushing Plant description

stone crusher produce line is applied to crush a variety of mid-hard and above mid-hard ores and rocks, which is generally used as a secondary crusher in a crushing circuit. stone crusher produce lines are designated in size either by the gape and mantle diameter or by the size of the receiving opening.

stone crusher produce lines can be used for primary or secondary crushing, which are used extensively throughout the aggregate and mineral processing industry.

stone crusher produce line lifts or drops dynamic cone through each single hydraulic cylinder to realize a variety of functions such as overload protection and cleaning chamber.

Configured with electronic intelligent throat control system, hydraulic cone crusher realizes process control and operation optimization. It has been widely used for the crushing of medium or above medium hardness ores and rocks in metallurgical industry, building materials industry, road construction, chemical and silicate industries.
 Stone Crushing Plant Working principle

Marble crushing plant stone crusher produce line made in china working principle:

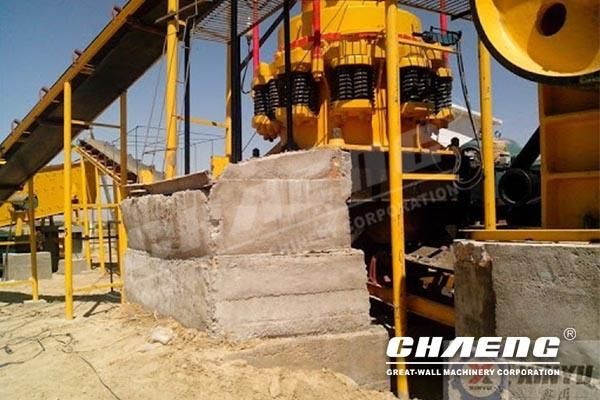

When Cone Crusher works, driven by the motor, the eccentric sleeve rotates under the combined action of the triangular belt, big belt pulley, transmission shaft, bevel pinion and bevel gear wheel. Then, under the action of the eccentric sleeve, axis starts to rotate, too. During which, the crushing wall would be sometimes close to or sometimes away from the rolling wall. This motion forces materials to be shocked, squeezed and broken continuously in the crushing cavity between the crushing wall and the rolling wall. Finally, materials are discharged out of the machine when their fineness reaches the discharging standard. Stone Crushing Plant (Price) System introduction
Crushing system

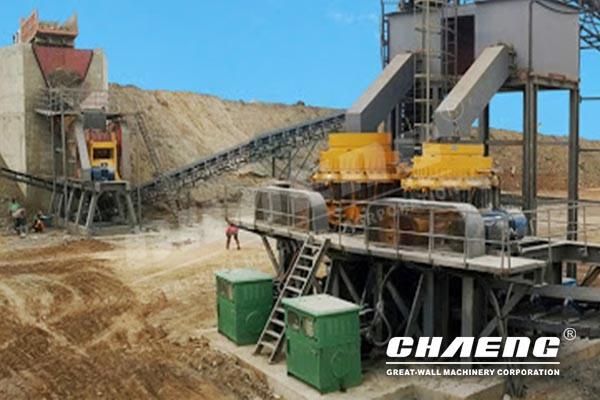

In the whole production line, the crushing system is divided into three parts: primary crushing, medium & fine crushing and sand-making crushing.
Primary crushing: 140mm < material fineness≤800mm
Medium & fine crushing: 30mm sand-making crushing: 5~30mm

Screening system
After the crushing of each part, the material will enter the corresponding material fineness screening system, and is distributed to the corresponding crushing system according to the fineness.

Washing system
The material of 0-5mm separated by the screening systems is firstly cleaned by their respective sand washing systems, then dewatered by the dewatering screen, and finally stored in the finished product shed.

Wastewater utilization system
After the sludge-containing wastewater is dewatered by the cyclone and the dewatering screen, the slurry flows into the lifting tank and is transported by the lift pump to the horizontal sedimentation tank. The bottom flow is sent to the sludge tank through the plunger pump, and the upper clear liquid flows into the clear water tank for production use. The slurry in sludge tank is sent to the filter press by the filter press feed pump. After the pressure filtration, the mud cake is transported by the belt conveyor to the yard of the plant, and the filtered water is discharged into the clear water tank for recycling.

Storage system
Fully enclosed finished product shed without dust leakage can meet the storage requirements of natural sandstone, machine-made sand and finished aggregate.

One-card-controlled loading system
Intelligently controlling the entire process of vehicle from weighing to loading and delivery can simplify the process and integrate the corresponding information system and automatic system, so as to reduce manual operations and comprehensively improve delivery efficiency and customer satisfaction.

Features and Advantages of the Stone Crushing Plant

1. High reliability, good stability

2. Convenient maintenance, easy operation

3. Low operation costs, wide application range

4. Laminating crushing makes good discharging grain shape

5. Cost effective

6. Long life
CHAENG's Strength

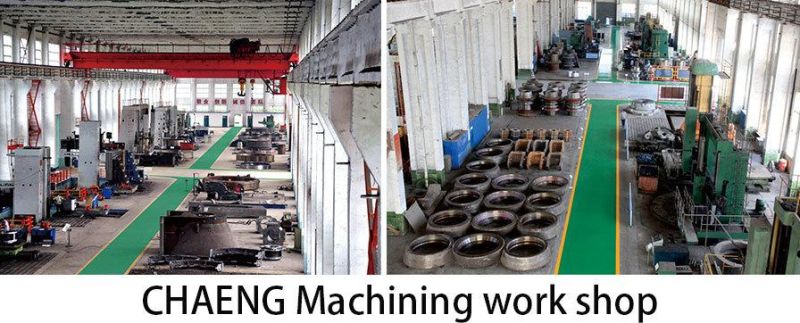

1.Based on high-end and advanced equipment
With large casting base, machining and assembling workshop, CHAENG has strong casting and processing strength. All the main engines for the turnkey project are self-made, and other supporting auxiliary machines are bought from excellent brands at home and abroad, which means that we can control the whole quality and construction period of the project.
 2.Multiple patents, controlling the core technologies
The company has a professional technical team in many fields with more than 100 people, such as technology, equipment, hydraulic, electrical and civil engineering. So we can design the whole sandstone aggregate production line independently. We stick to independent research and innovation all the time, continuously optimize product performance and improve the technological content of products. We have research center of aggregate, powder and high-performance concrete, so we can provide scientific and professional sandstone aggregate production system solutions for the customers.
CHAENG has won man honorary awards, such as "top 100 suppliers in China cement industry", "top 10 innovative enterprise in China cement industry", "high-growth private enterprise in Henan Province", "technological innovation demonstration enterprise of  energy conservation and emission reduction in Henan Province", "National high-tech enterprise" and so on.
