• Model NO.：wheel-type mobile crusher
• Finished Surface：Thread Process
• Certification：CE, ISO
• Condition：New
• Color：Customized
• Input Size：0-930mm
• Material：Granite, Marble, Basalt, Limestone, Quartz, Pebble
• Transport Package：Transport Package
• Specification：0-650TPH
• Trademark：CHAENG
• Origin：Henan
• Production Capacity：0-650tph

Basic Info.

Model NO. wheel-type mobile crusher Finished Surface Thread Process Certification CE, ISO Condition New Color Customized Input Size 0-930mm Material Granite, Marble, Basalt, Limestone, Quartz, Pebble Transport Package Transport Package Specification 0-650TPH Trademark CHAENG Origin Henan Production Capacity 0-650tph

Product Description

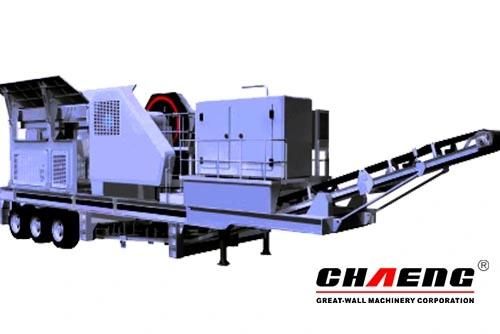

Production introduction of wheel-type mobile crusher

Wheel-type Mobile Crusher is, also known as mobile crushing station, developed based on years of independent research and manufacturing experience of mobile crushers. In combination with user demands, Wheel-type Mobile crusher is optimized and innovated on structural design, equipment configuration and combined application, so as to realize more flexible combinations, greatly widening the application fields and truly realizing the approaching treatment of materials.

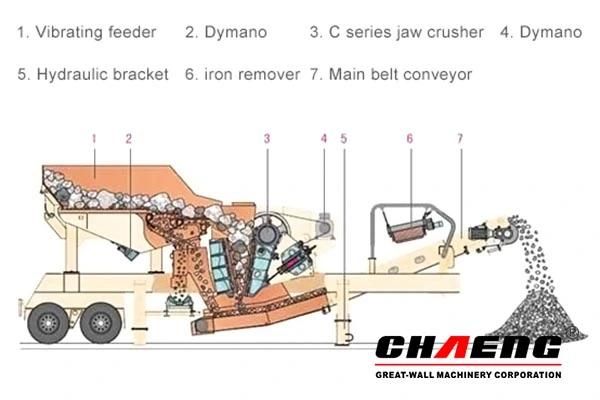

Working Principle of wheel-type mobile crusherWheel-type Mobile Crusher is composed of the frame assembly, automobile components, hosts & accessory equipment, power system and hydraulic electronic control system. When moving, the mobile crusher is hooked on a trailer and then move by virtue of its wheels. During installation, with the external power, the hydraulic cylinder can get controlled by the electronic control system to finish equipment installation. During operation, with external power, motors of hosts and accessories work to drive the equipment to work. Usually, materials are sent from the hopper or by belt conveyors to the hosts for crushing and screening. After being processed, finished products are transported by belt conveyors, too.

 Specification of wheel-type mobile crusher

Model	Screening equipment	Crushing equipment	Main belt conveyor	Hopper volume (m³)	Max.feeding size (mm)	Transportation dimension (mm)
GW600-1	GW0936	GE600×900	B800×8.3m	5.3	500	12150×2600×3950
GW750-1	GW1139	GE750×1060	B1000×8.5m	7	630	13000×2850×4400
GW760-1	GW1139	GEW760	B1000×8.5m	7	640	13000×2800×4200
GE860-1	GW1345	GEW860	B1200×9.5m	8	720	14600×3000×4500
GE1100-1	GW1548	GEW1100	B1400×9.5m	11	930	14050×2900×4000
GJ98-1	GW1139	GJ98	B800×8.3m	5.9	560	12150×2600×3950
GJ110-1	GW1345	GJ110	B1000×8.5m	8.5	660	13200×3000×4400
GJ125-1	GW1345	GJ125	B1400×9.5m	8	800	14600×3000×4500

About CHAENG

1.Based on high-end and advanced equipment
With large casting base, machining and assembling workshop, CHAENG has strong casting and processing strength. All the main engines for the turnkey project are self-made, and other supporting auxiliary machines are bought from excellent brands at home and abroad, which means that we can control the whole quality and construction period of the project.

2.Multiple patents, controlling the core technologies
The company has a professional technical team in many fields with more than 100 people, such as technology, equipment, hydraulic, electrical and civil engineering. So we can design the whole sandstone aggregate production line independently. We stick to independent research and innovation all the time, continuously optimize product performance and improve the technological content of products. We have research center of aggregate, powder and high-performance concrete, so we can provide scientific and professional sandstone aggregate production system solutions for the customers.
CHAENG has won man honorary awards, such as "top 100 suppliers in China cement industry", "top 10 innovative enterprise in China cement industry", "high-growth private enterprise in Henan Province", "technological innovation demonstration enterprise of  energy conservation and emission reduction in Henan Province", "National high-tech enterprise" and so on.
