Infrared Automatic Granite Marble Bridge Cutting Machine (ZDH600) with Rotate Worktable

Zhejiang Haigong Machinery Co., Ltd.
  • Type：Stone Cutting Machine
  • Usage：Ceramics, Granite, Marble
  • Application：Construction, Stone Industry, Porcelane
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：High Speed

Base Info

  • Model NO.：ZDH-600
  • Control：PLC
  • Certification：ISO, CE
  • Working Size：3200*2000*150mm
  • Transport Package：Suitable Packaging for Ship by Sea
  • Specification：ZDH600
  • Trademark：ZHENGDA, HAKON
  • Origin：China
  • HS Code：8464909000
  • Production Capacity：500 Sets ,Month

Description

Basic Info.

Model NO. ZDH-600 Control PLC Certification ISO, CE Working Size 3200*2000*150mm Transport Package Suitable Packaging for Ship by Sea Specification ZDH600 Trademark ZHENGDA/ HAKON Origin China HS Code 8464909000 Production Capacity 500 Sets /Month

Product Description

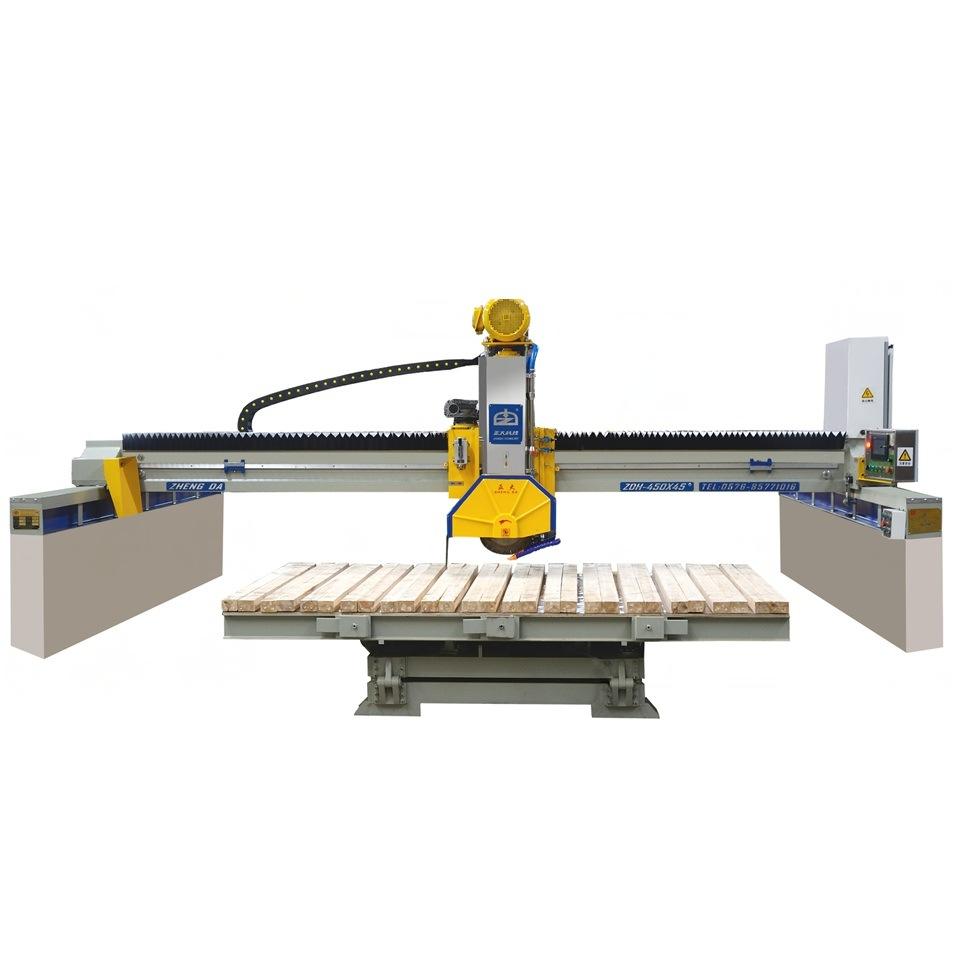

Infrared Automatic Granite Marble Bridge Cutting Machine (ZDH600) with Rotate Worktable
Stone Edge Cutting Machine Granite Bridge Saw

Laser Bridge Cutting Machine(Assemble Line) is easily used in assemble line processing work. Infrared Bridge Cutting Machine (Assemble Line) can improve work efficiency, reduce the labor force and processing cost. Laser stone cutter is suitable for production line users to save time and energy.

  • STRUCTURE AND FEATURES:
  1. It is the improved one with high efficiency and mature technology.It is suitable for assemble processing line to achieve the plate does not fall to the group.
  2. It is suitable for mass production for the large size plate, saving the transport time with highly efficiency,reduce the labor force and processing cost.
  3. It is suitable for production line users to save the time and energy, it is the most useful cutting equipment in the deep processing of the quartz stone industry.
  • MAJOR TECHNICAL PARAMETERS:
  • Max. Processing dimension 3200×2000×150 mm
    Workstation rotation size90 degree or 360 degree
    Saw blade diameter350-600 mm
    Main engine power18.5 kw
    Total power23.7kw
    Outline dimension6000×4500×3050MM
    Weight 5500 kgs
    Water consumption4 m³/h
 Infrared Automatic Granite Marble Bridge Cutting Machine (ZDH600) with Rotate WorktableInfrared Automatic Granite Marble Bridge Cutting Machine (ZDH600) with Rotate WorktableInfrared Automatic Granite Marble Bridge Cutting Machine (ZDH600) with Rotate Worktable



Infrared Automatic Granite Marble Bridge Cutting Machine (ZDH600) with Rotate WorktableInfrared Automatic Granite Marble Bridge Cutting Machine (ZDH600) with Rotate Worktable
  • FAQ:
  • 1. Do you have more stone machines?
    Yes, we can produce all series of stone processing machines with competitive price and high quality.
    Bridge Saw is one of our machines.
  • 2. Where is your factory?
    Our factory locates in Linhai City, it is 1 hours Taizhou airport, 30 minitues form Linhai or Taizhou train station.
  • 3. How much is this machine?
    Please tell me your stone is granite or marble, the size, your destination port, so that I can quote you best price
  • 4. How long can I get my product?
    Normally it takes 15 days to produce our products
