• Model NO.：many models
• Finished Surface：Outer Surface Process
• Certification：ISO
• Condition：New
• Color：as Customer Request
• Product Name：Impact Fine Crusher
• Feed Size：Below 200mm
• Output Size：Below 5mm
• Capacity：5-400t,H
• Transport Package：Loaded Into Container
• Specification：according to the model
• Trademark：Yuhui
• Origin：China
• HS Code：8474
• Production Capacity：40 Sets Per Month

Basic Info.

Model NO. many models Finished Surface Outer Surface Process Certification ISO Condition New Color as Customer Request Product Name Impact Fine Crusher Feed Size Below 200mm Output Size Below 5mm Capacity 5-400t/H Transport Package Loaded Into Container Specification according to the model Trademark Yuhui Origin China HS Code 8474 Production Capacity 40 Sets Per Month

Product Description

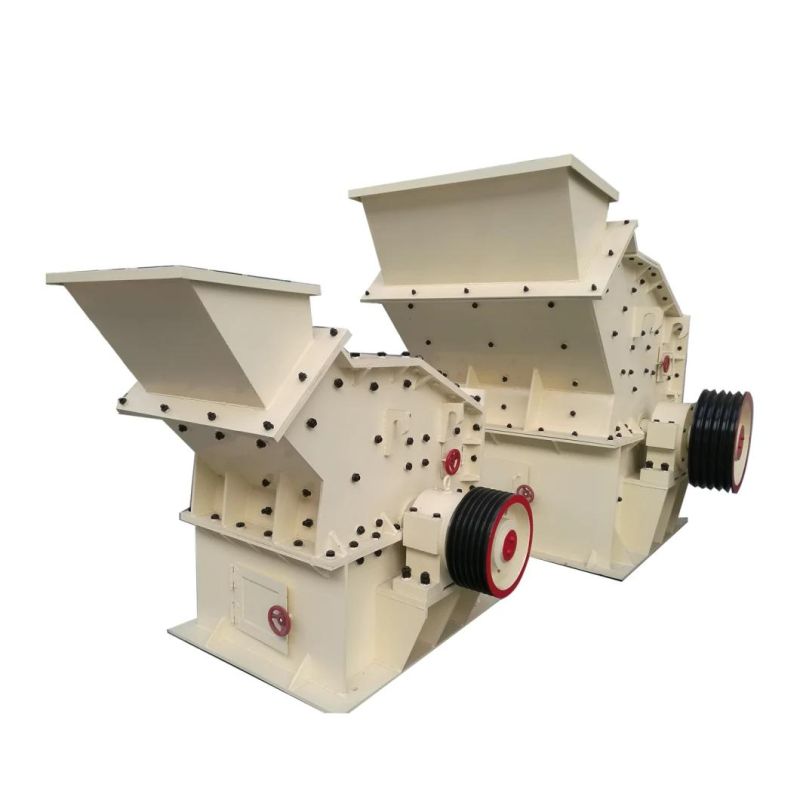

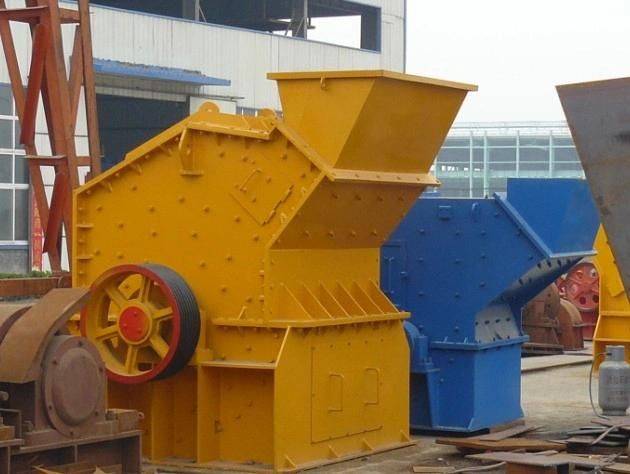

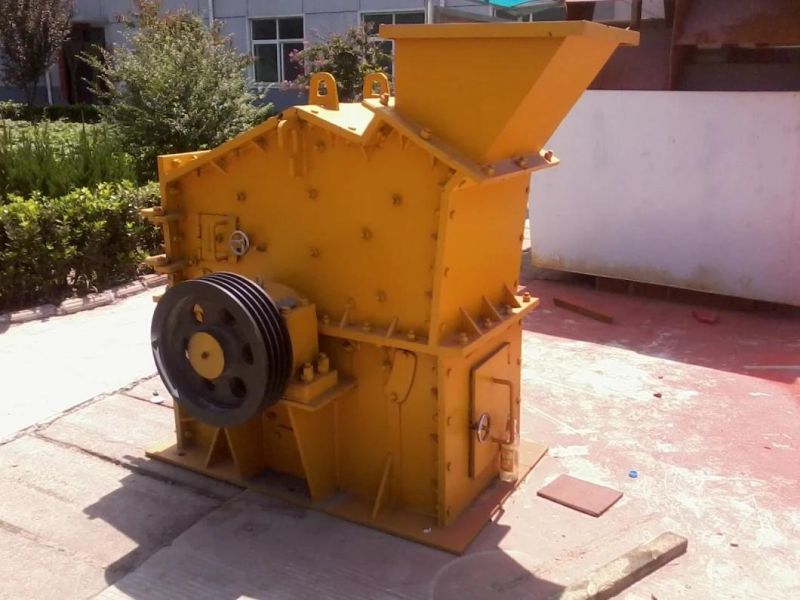

                 Stone crusher crushing machine for gold mining use



Application of high efficienct impact fine crusher:
High efficiency impact fine crusher is used for fine crushing medium hard materials in concrete industry, such as limestone, plaster, clinker, mixed material, calcium phosphide, dolomite, and pearl ore, etc. It is also applicable to building material, fertilizer, mine and fireproofing material industries.

Working Principle of high efficienct impact fine crusher:
The material is crushed primarily in the first crushing chamber by the high speed moving rotator against the hammer, and then screwed into the secondary chamber for fine crushing hereafter material being discharged.

Features and Advantages of high efficienct impact fine crusher:
1. Super-fineness crushing capability: The new particle size adjusting mechanism guarantees 85% of the particles controlled within 3mm;
2. High-efficient and energy-saving: 40% power consumption reduced at equivalent output;
3. Extra long life: hammer heads are made of new type of high quality alloy materials with multiple elements and can be turned for use thus to prolong the service life by 4 times.
4. Great crushing ratio
5. Easy Maintenance: The rear cover of the upper machine frame can be hydraulically (hand)-opened to make the maintenance much easier.

Main Technical Parameters:

Model	feeding size(mm)	discharging size(mm)	Capacity (t/h)	Power (kw)	Weight (t)
PCX800×300	≤60	≤5(96%)	20-25	37	2.5
PCX800×600	≤60	≤5(94%)	35-50	45	4.7
PCX800×800	≤70	≤5(92%)	40-60	75	6.5
PCX1000×1000	≤80	≤5(91%)	60-90	90	8.8
PCX1000×1200	≤90	≤5(88%)	75-110	110	13.6
PCX1300×1200	≤100	≤5(86%)	120-145	160	19.5
PCX1300×1400	≤120	≤5(85%)	145-180	180	26

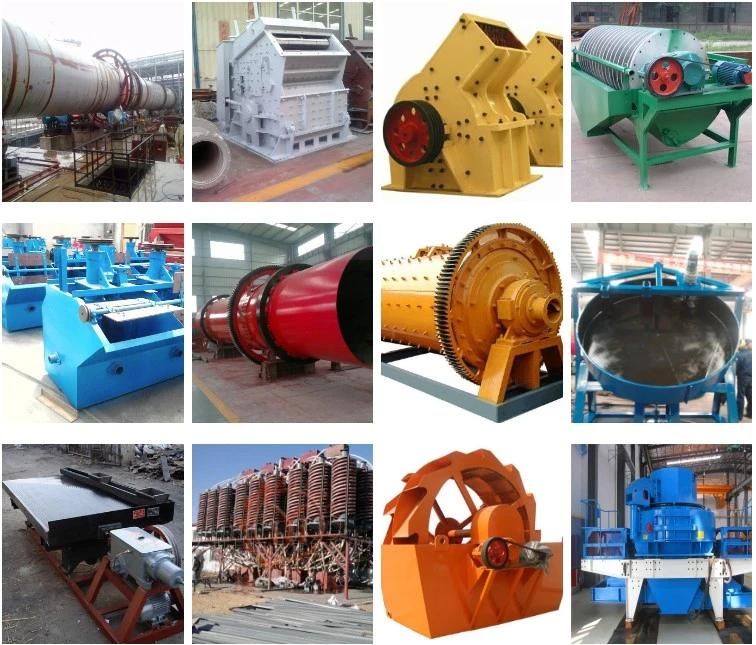

Our other related products:


Our company:

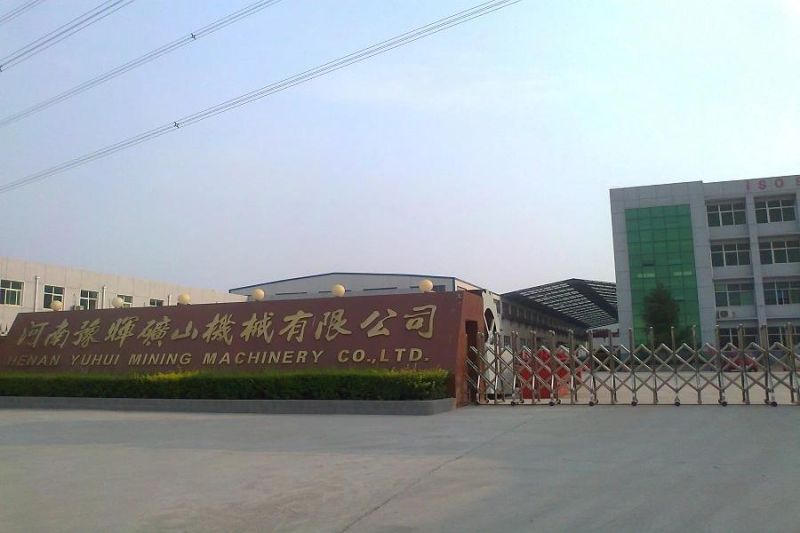

Henan Yuhui Mining Machinery Co, Ltd. is located in Zhengzhou city in central plains, which adjoins to ancient millennium Shaolin Temple (Kung fu Origin) to the south, and Yellow River to the north. With Kailuo highway and Longhai railway, it owns convenient transportation and pleasant scenery.

Established in the 1970s, Henan Yuhui Mining Machinery Co.,Ltd. has developed into a famous manufacturer through 20 years struggling and progressing, specialized in producing mineral dressing equipment, compound fertilizer equipment, cement equipment,  as well as sand making equipment.

YuHui provides a connected sequence service with designing process flow, on-site civil engineering guidance, installing and debugging the equipment, training technical and operating people for clients. The company guarantees repair, replacement and refund and is warrantable to the complete machine for one year. It supplies accessories for a long period. Welcome inquiries and purchase from both new and old customers as well as worldwide friends.

Our customers:

Each year we have the customers from world wide to our company for visit, like America, Malaysia, Indonesia, Philiphine, Sudan, Namibia, Zimbabwe, Zambia, Ethiopia, india, peru and so on.
Welcome to our company for visit.
