• Model NO.：KXJ1500,KXJ1800,KXJ2200.
• Control：PLC
• Certification：ISO, CE
• Conditiaon：New
• Container Type：40hq(Hc)
• Transport Package：by Film Package
• Specification：Max cutting size: 3600× 2000× 2100mm
• Trademark：XINDA
• Origin：Yunfu City, China
• HS Code：84641090
• Production Capacity：1000

Basic Info.

Model NO. KXJ1500/KXJ1800/KXJ2200. Control PLC Certification ISO, CE Conditiaon New Container Type 40hq(Hc) Transport Package by Film Package Specification Max cutting size: 3600× 2000× 2100mm Trademark XINDA Origin Yunfu City, China HS Code 84641090 Production Capacity 1000

Product Description

Function: The machine is used for cutting slabs and squaring block.



Brief introduction of wire saw machine:
1, The machine has steady structure, including top beam, two upright column, square box, hydraulic station tensioning unit, two big flywheel. Left side install a driven big flywheel and hydraulic station tensioning unit. Tensioning device controls diamond wire tension or loosen, meanwhile keep the diamond wire pressure. Right side install a driving flywheel and main motor, it can control the speed of wire between 0-35m/s via inverter. The machine can cut different kind of stone material.
2, In order to reduce the diamond wire wear and keep the diamond wire steady, the machine are equiped with two guide wheels (Diameter: 300mm).
3. Trolley move by Screw rod. Screw rod is soaked with oil in the protective cover of screw rod(Patent product).
4. The machine will stop automatically and display failures on the screen if wire broken.
5. The machine has a water spray system. If no water or not enough water, the machine will automatically stop.


Technical parameters:

Model Parameters	KXJ1500	KXJ1800	KXJ2200
Diameter of Wire	Φ8-Φ11	Φ8-Φ11	Φ8-Φ11
Length of Wire	17300mm	19300mm	21350mm
Speed of Wire	0-40m/s	0-40m/s	0-40m/s
Worktable Size	1360×2000mm	1800×2000mm	3000×2000mm
Worktable Whether Revolve	NO(Optional)	NO(Optional)	YES
Worktable Load Capacity	20T	30T	50T
Range of Cutter Movement	1600mm	1900mm	2200mm
Max Cutting Size(L×W×H)	3500×2000×1500mm	3600×2000×1800mm	3600×2000×2100mm
Production Efficiency	1-2m²/h(marble) 0.5-2m²/h(granite)	1-2m²/h(marble) 0.5-2m²/h(granite)	1-2m²/h(marble) 0.5-2m²/h(granite)
Main Motor Power	11KW	11KW	15KW
Water Consumption	3m³/hour	3m³/hour	3m³/hour
Overall Dimension	8200×5700×4300mm	8800×6800×4500mm	9800×6800×5400mm
Diameter of Guide Wheel	Φ300mm	Φ300mm	Φ300mm
Total Power	19.94KW	19.94KW	23.94KW
Total Weight	7T	9T	12T

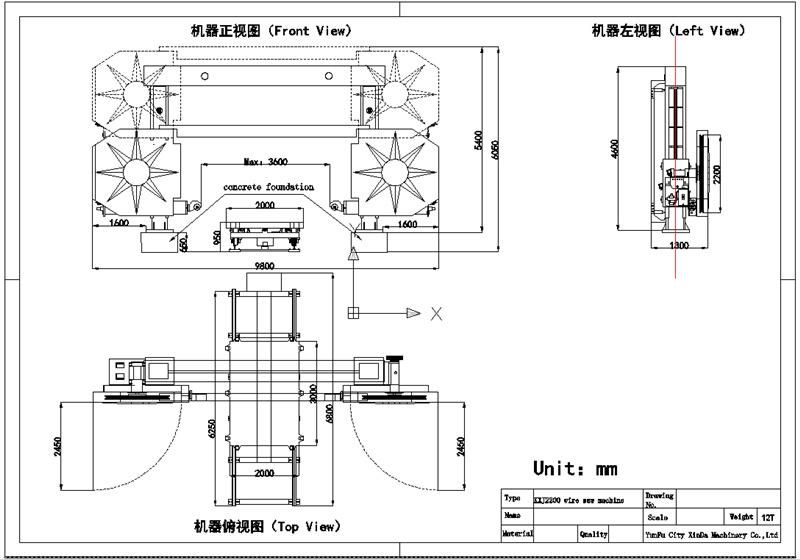

Schematic Drawing:

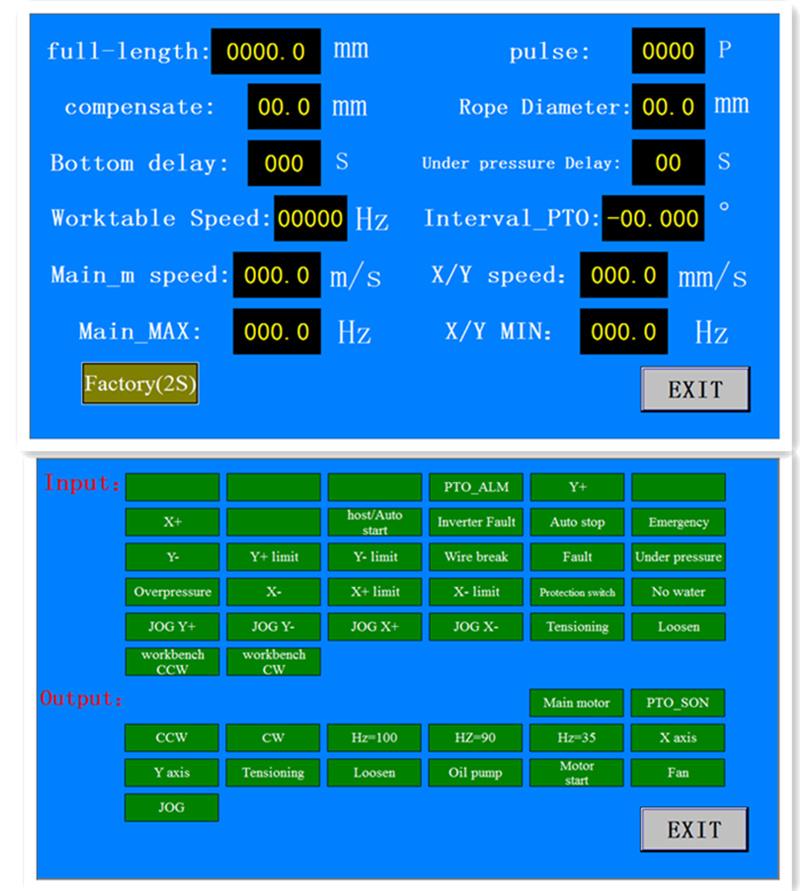

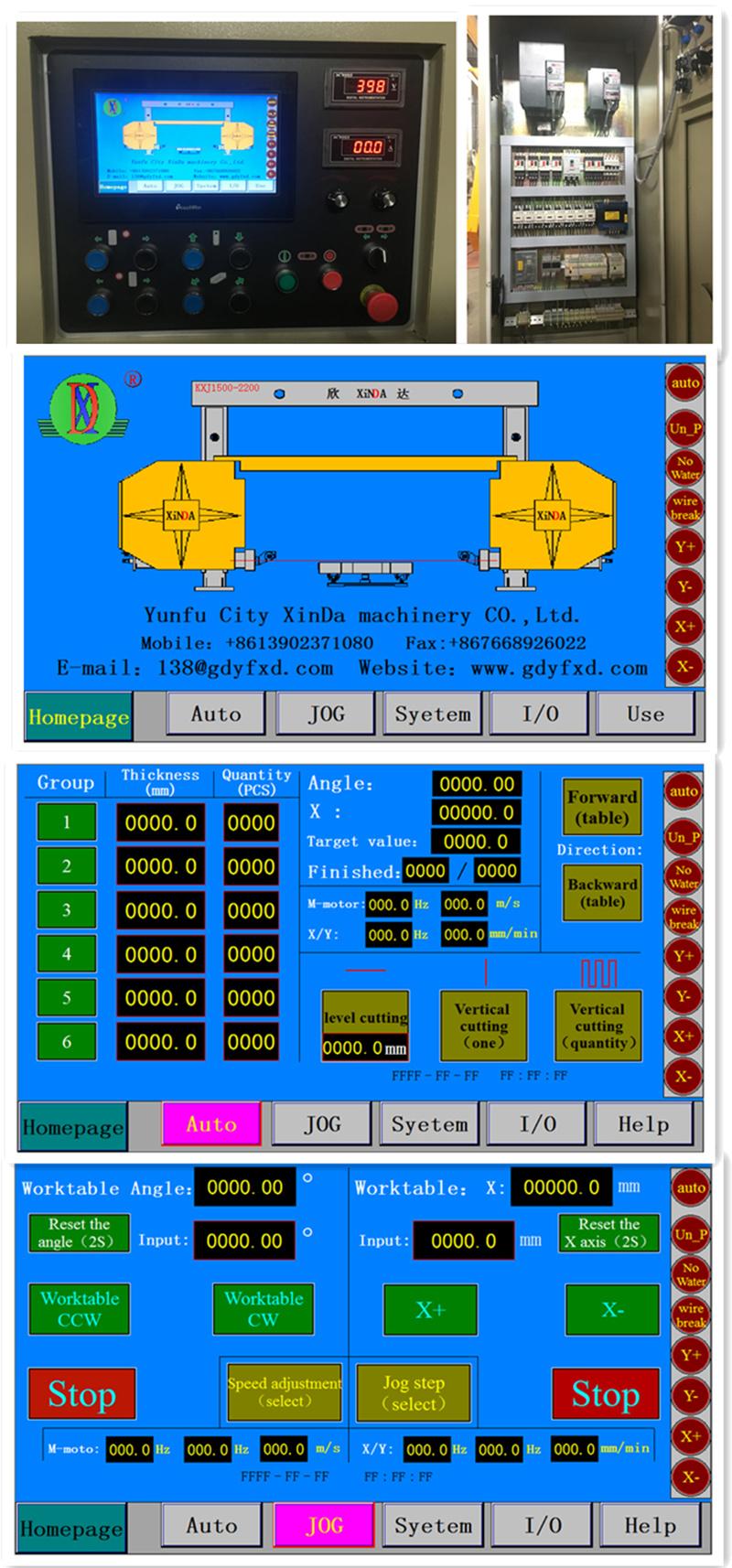

Electric Cabinet& Operation Panel Photos:











Exhibition:

FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before shipment
2) Delivery time:
The wire saw machine can be shipped within 15 working days when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and the Lightning, Flood, earthquake, wrong voltage are not covered by the warranty.
4)How about our service?
1. Six engineers are special for installation service for oversea customer. If customer needs our installation service, we are available to dispatch any time.
2. Technical Support 24 hour on line.
