Stone Processing Machinery

Home > Product > Stone Cutting Machine

Infrared Bridge Type Stone Cutting Machine Marble Cutting Machine Tile Cutter (HQ400-600-700)

Xiamen Aga Import and Export Co., Ltd.
  • After-sales Service：24 Hours on Line Services
  • Warranty：1 Year Warranty
  • Type：CNC Cutting Machine
  • Usage：Granite, Marble, Quartz Sandstone Limestone Other Engineered Stones
  • Application：Machinery & Hardware, Construction, Stone Industry
  • Source Voltage：380V

Base Info

  • Model NO.：HQ400-600-700
  • Automation：Automatic
  • Cutting Ability：High Speed
  • Control：CNC
  • Certification：ISO, CE
  • Blade Size：300-700mm
  • Blade Tilting：45 Degrees
  • Table Size：3200*2000mm
  • Table Tilting：0-85 Degrees
  • Table Rotation：0-360 Degrees
  • Spindle Motor：18.5kw 25HP
  • Total Power：26.5kw
  • Max. Cut Size：3200*2000*230mm
  • Weight：7500kg
  • Transport Package：Plastic Packing
  • Specification：6*5.7*3.5m
  • Trademark：AGA
  • Origin：Xiamen, China
  • HS Code：84641010
  • Production Capacity：200 Sets,Month

Description

3200×2000 mm 126"×79"Max. Cut Depth110 mm 4"180 mm 7"230 mm 9"Spindle Motor15 Kw  20HP15 Kw  20HP18.5 Kw  25HP

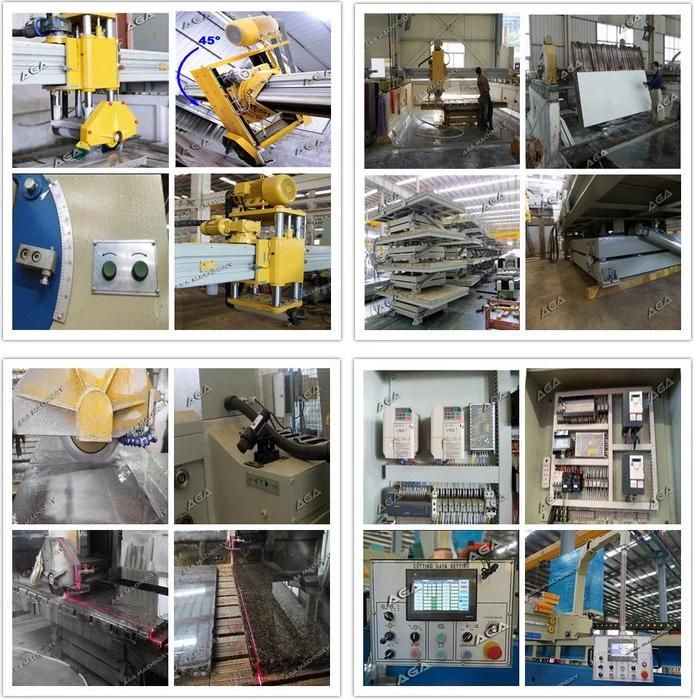

Stone Cutting Machine Introduction:
Infrared Bridge Type Stone Cutting Machine Marble Cutting Machine Tile Cutter (HQ400-600-700)The main structure of this stone cutting machine is made strong cast iron and stainless for protection. It is with laser guide for precision cuts, the machine is microcomputer control and works automatically by program providing fast and easy cuts.
The blade goes left and right, up and down, the bridge beam moves forward and backward, it can tilt 0-45 degrees for auto miter cuts. (Optional for model HQ700)
Machine table tilts 0-85 degrees for easy load of big slabs easily, it can also rotate 0-90 degrees to change the cutting position, rotation 0-360 degrees is also optional.
This stone cutting machine comes with touch screen operation which provides simple operation.
Flexible movements in X, Y, Z axis by screw.
Four pistons head optional.

FAQ:1) Payment:
T/T 30% deposit, 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.


AGA Machinery:
Infrared Bridge Type Stone Cutting Machine Marble Cutting Machine Tile Cutter (HQ400-600-700)AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.


Key words:
Stone cutting mahcine, granite cutting machine, bridge cutter machine, bridge cutting machine, marble cutting machine, bridge sawing machine, slab cutting machine, slab sizing machine, tile cutter, bridge cutter, cnc cutting machine, cnc machine,  5 axis cutting machine, china cnc machine, etc.
