• Model NO.：MS-2600,3000
• Application：Granite, Marble
• Type for Grinding Machine：Disc Grinding Machine
• Grinding Machine Type：Vibration Polishing Machine
• Grinding Method：Wet Grind
• Certification：ISO, CE
• Condition：New
• Output：25-30 Sqmt,8h for Midium Hard Granite
• Voltage：380V,50Hz (Others Are Available)
• Overall Dimensions：3800*650*1700mm
• Weight：900kg
• Main Motor Power：4.5,5.5kw
• Feature：Grinding Efficiency
• Transport Package：10set in a 20FT Container
• Trademark：WANLONG
• Origin：Qanzhou, China
• HS Code：8464209000
• Production Capacity：50set Per Month

Basic Info.

Model NO. MS-2600/3000 Application Granite, Marble Type for Grinding Machine Disc Grinding Machine Grinding Machine Type Vibration Polishing Machine Grinding Method Wet Grind Certification ISO, CE Condition New Output 25-30 Sqmt/8h for Midium Hard Granite Voltage 380V/50Hz (Others Are Available) Overall Dimensions 3800*650*1700mm Weight 900kg Main Motor Power 4.5/5.5kw Feature Grinding Efficiency Transport Package 10set in a 20FT Container Trademark WANLONG Origin Qanzhou, China HS Code 8464209000 Production Capacity 50set Per Month

Product Description

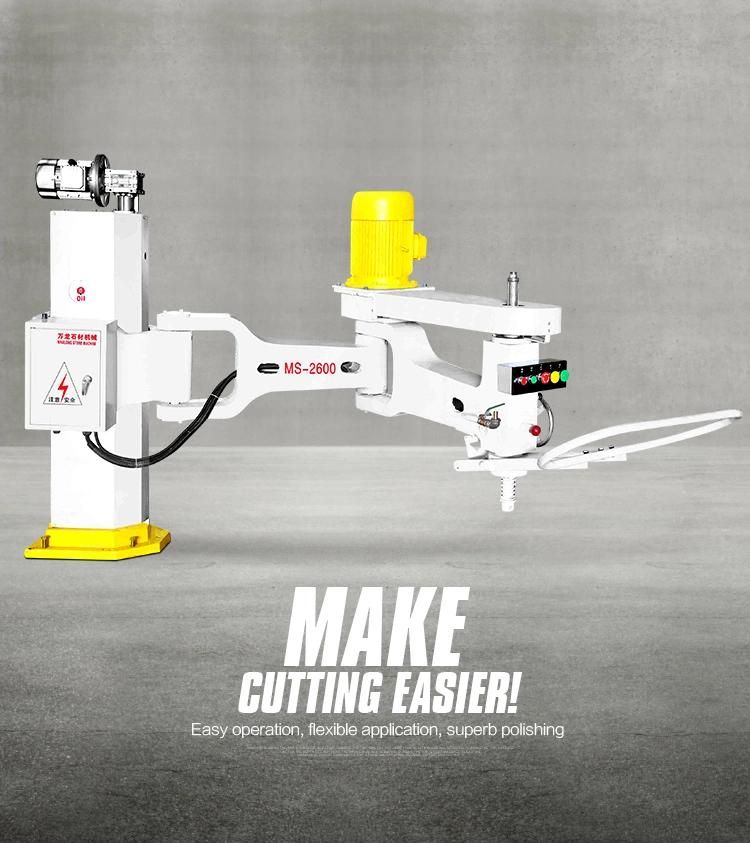

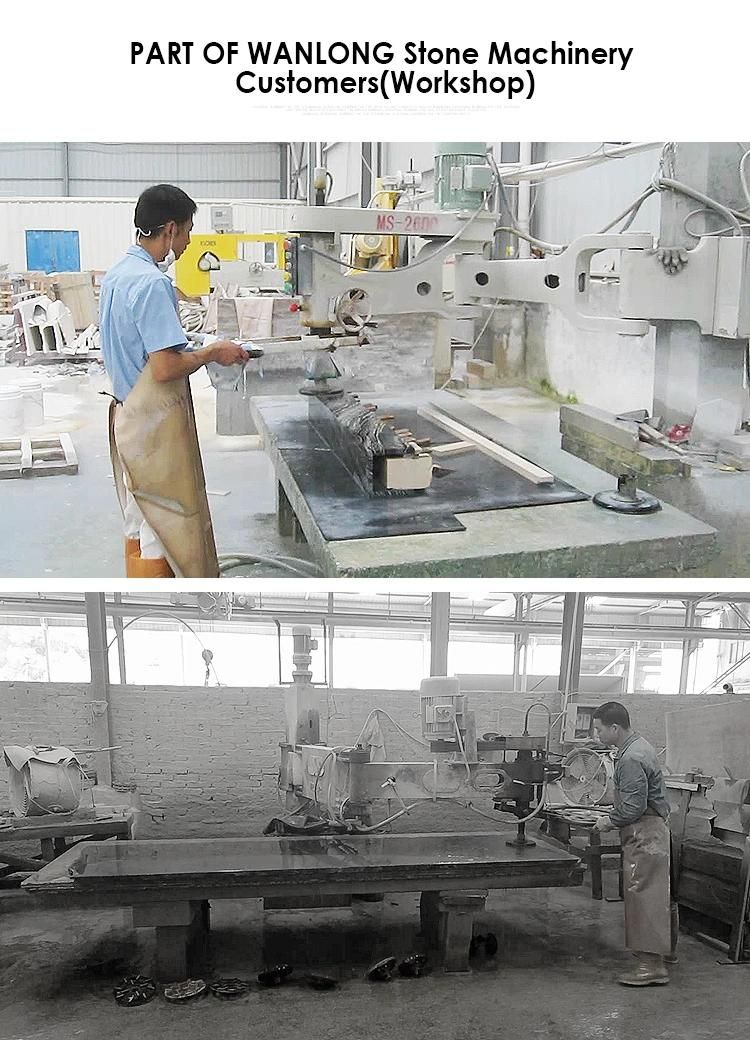

Wanlong MS-2600/3000 Manual Polishing Machine For Tombstone Slab and Mosaic

This machine uses round column as its guide slip surface for steady automatic ups and downs. Two optional main drive    motors (single speed and dual speeds) are upon the client's choice. It is applicable to surface grinding and polishing of  granite and marble. especially for tombstones, slabs and mosaic. Available for Arc slab polishing as well if assorted with table.

Features

1. Guide surface on round column, no tiny vibration when ups and downs

2. Vertical rocker arm structure & turning joint, wide working range available

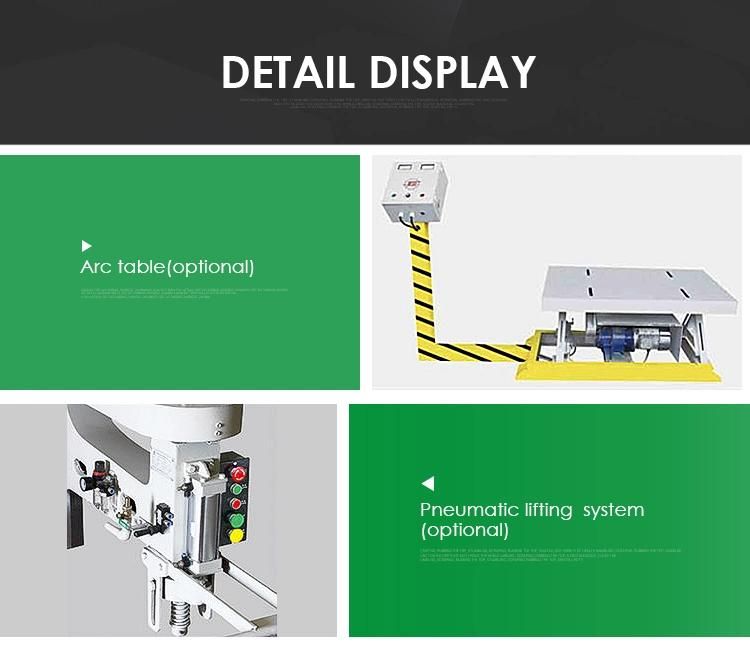

3. Automatic & Manual elevating devices for customer's choice

4. Single or Dual speed of main drive motor available

5. Worktable for grinding interior/exterior arcs available upon request

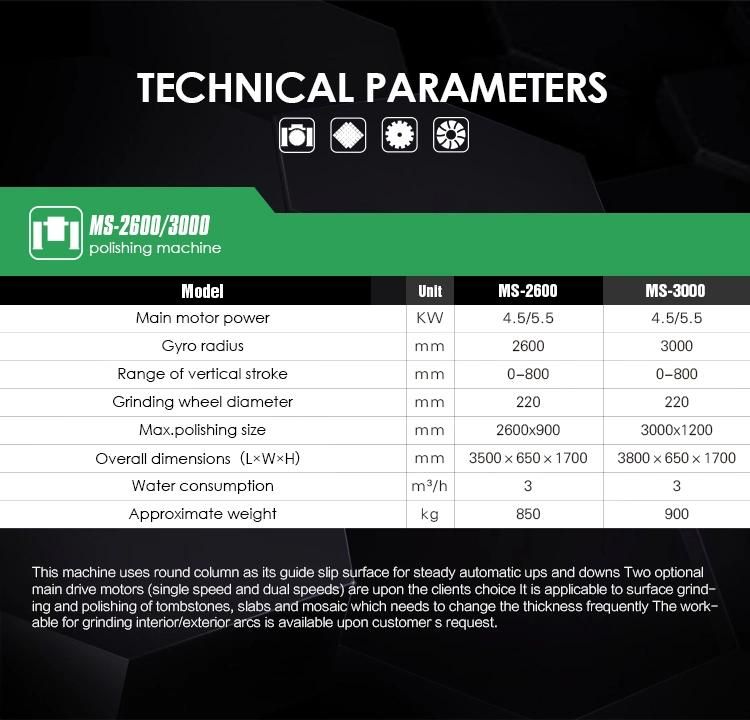

Technical Parameter

Model	Unit	MS-2600	MS-3000
Main motor power	kw	4.5/5.5	4.5/5.5
Gyro radius	mm	2600	3000
Range of vertical stroke	m/min	0-800	0-800
Grinding wheel diameter	mm	220	220
Max. polishing size	mm	2600×900	3000×1200
Overall dimensions	mm	3500×650×1700	3800×650×1700
Approximate weight	kg	850	900

Company Information

Diamond tools: Wanlong's mission is to make no stone hard to cut in the world, to help customer save production costs. More than 20 years in the line of diamond tools industry, Wanlong's technological innovation improves the cutting efficiency, and save the cost for end-users.
Stone Industry: Wanlong developed Aluminum Plastic Laminated Panel, Honeycomb Laminated Panel, Ceramic Thin Marble Panel, Fiberglass Thin Granite Panel, Fire Proof Thin Granite Panel and other new stone products. Not only save stone (3-5mm super thin stone, the original 1-3cm reduced to 3-5mm), but also let stone products have properties (impact resistance, high-temperature resistant, fire resistant, light weight, large single size 140x280cm ), expanding the application of the stone (high-rise building interior wall decoration, airplane and yacht interiors).
Machinery: Wanlong mechanical's mission is to provide customers with advanced technology solutions for efficient tools production. 26 years' practical experience in stone machinery industry contributes to rich experience and Technological advantage of diamond tools. Wanlong machinery will fit the needs of customers with more sophisticated services to fulfill the mission.
