Stone Machine Vertical 4 Axis CNC Stone Carving Machine with Vertical Rotary to Make 3D Sculptures Statues
Jinan Sea Eagle Cnc Machinery Co., Ltd.- After-sales Service：Yes
- Warranty：24months
- Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
- Application Material：Blue Stone and Marble
- Automation：Semi-automatic
- Control：CNC
Base Info
- Model NO.：8015,1325
- Motor Power：High Power
- Engraving Head Speed Adjustability：Wide Adjustable Range
- Certification：CE, ISO, GOST, SONCAP, UL, CCC, API
- Current：AC
- Application：Advertising, Art & Craft, Stela & Gravestone, Stone Industry
- Customized：Customized
- Spindle Power：7.5kw
- Motor：AC Servo
- Machine Body：Heavy Duty
- Transport Package：Plywood Box
- Specification：3200*1600*1000mm
- Trademark：sea eagle CNC
- Origin：Jinan China
- HS Code：84649090
- Production Capacity：5000sets,Year
Description
Basic Info.
Model NO. 8015/1325 Motor Power High Power Engraving Head Speed Adjustability Wide Adjustable Range Certification CE, ISO, GOST, SONCAP, UL, CCC, API Current AC Application Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Spindle Power 7.5kw Motor AC Servo Machine Body Heavy Duty Transport Package Plywood Box Specification 3200*1600*1000mm Trademark sea eagle CNC Origin Jinan China HS Code 84649090 Production Capacity 5000sets/YearProduct Description

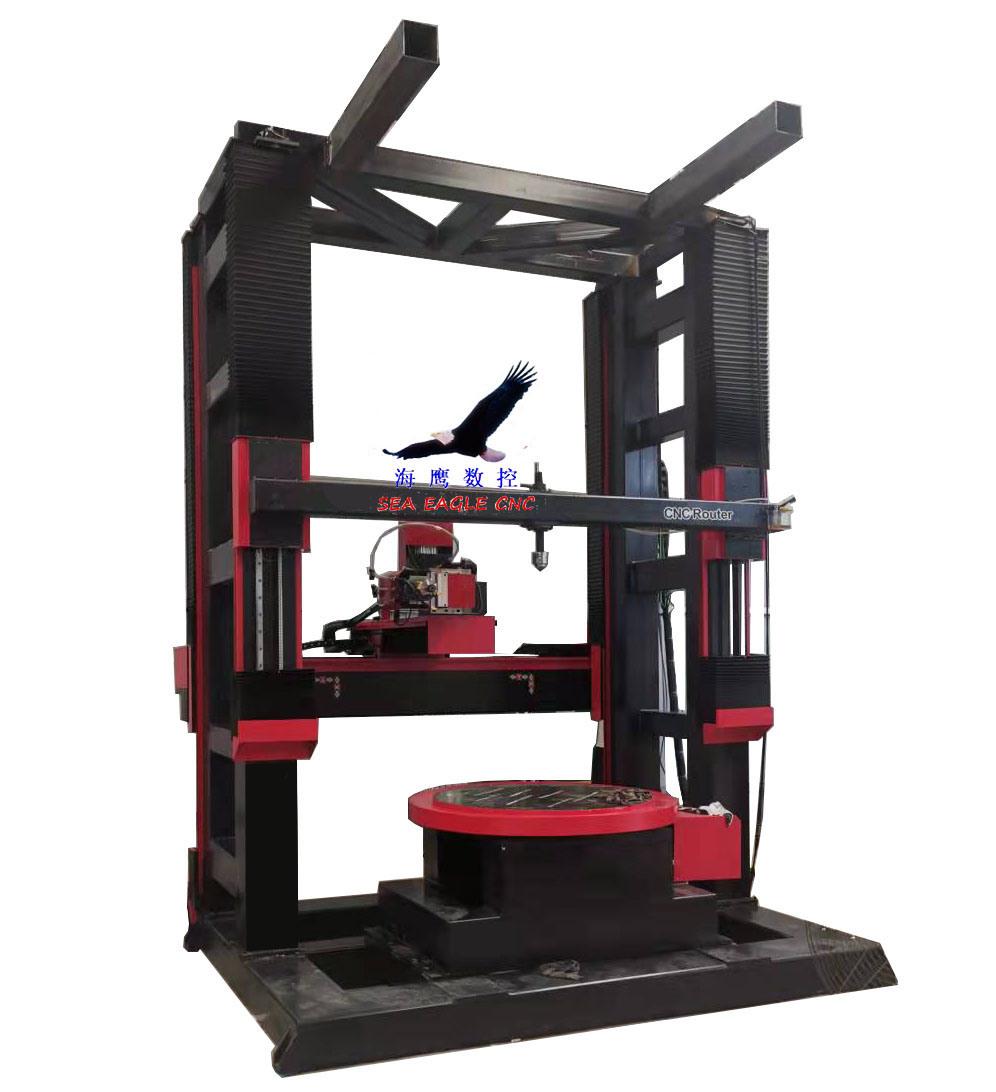

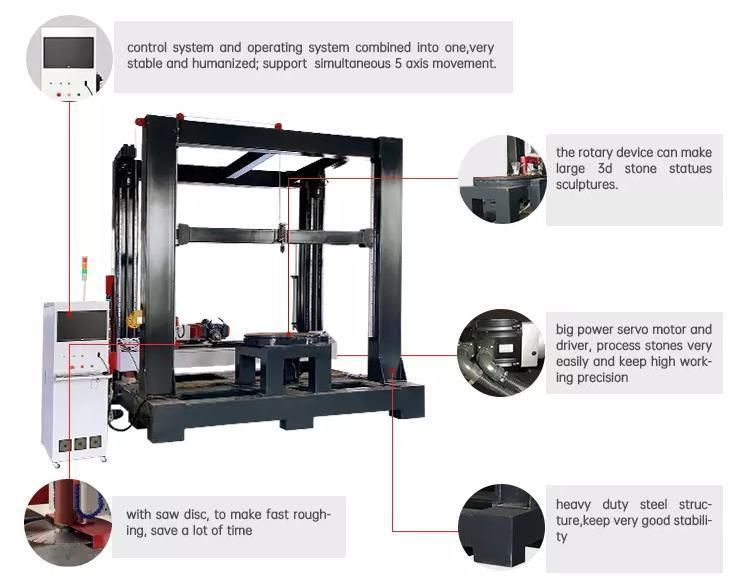

| Model | SE-8015 vertica stone CNC router |
| Spindle power | 7.5kw high-speed water cooling stonespindle |
| Machine travel | Max.diameter is 800~1500mm Max.height is 1500~2400mm |
| Transmission mode | X,Y,Z use 3210 and 4510 ball screw Double rows 4 lines 30mm rail, slide block with flange |
| Work power | AC380V |
| Idling speed | 15m/min |
| Safe system | Mechanical travel limit protection system |
| Lubrication system | Automatic oil filling protection system |
| Machine body | 6~8mm Thickened bed support, machining center milling table face |
| Repositioning Accuracy | 0.02mm |
| Installation type | machine head adopts the form of longitudinal flat hanging and is fixed with steel hanging plate |
| Software | JD paint, PM Customized saw blade roughening software |
| Control system | DSP A18 |
| metal plate | Whole machine plastic spraying |
| Motor and driver | X=750w Y=1.3kw Z=750w rotary =2.3kw AC servo motor and driver |
| inverter | BEST |
| Machine table | The customized rotary platform adopts steel platform, and the reducer adopts 110 cast iron reducer |
| Power Distribution Box | Standard |
| Spindle cable | National standard special high flexible shielded wire |
| dustproof | yes |
| Rough machining | Saw Blade Diameter |
| Machine size | Width=1600mm,length=2700mm,height=3000mm(following order) |
| Machine weight | 3500kgs |
