• Model NO.：GTG250D
• Grinding Method：Dry and Wet Grind
• Certification：ISO, CE
• Condition：New
• Rated Voltage：220V
• Power：2.2kw,3HP
• Speed：1410rpm
• Weight：70kg
• Transport Package：Wooden Case, Pallet
• Specification：750mmx500mmx800mm
• Trademark：Corediam
• Origin：China
• HS Code：8479109000
• Production Capacity：5000 Pieces,Year

Basic Info.

Model NO. GTG250D Grinding Method Dry and Wet Grind Certification ISO, CE Condition New Rated Voltage 220V Power 2.2kw/3HP Speed 1410rpm Weight 70kg Transport Package Wooden Case, Pallet Specification 750mmx500mmx800mm Trademark Corediam Origin China HS Code 8479109000 Production Capacity 5000 Pieces/Year

Product Description

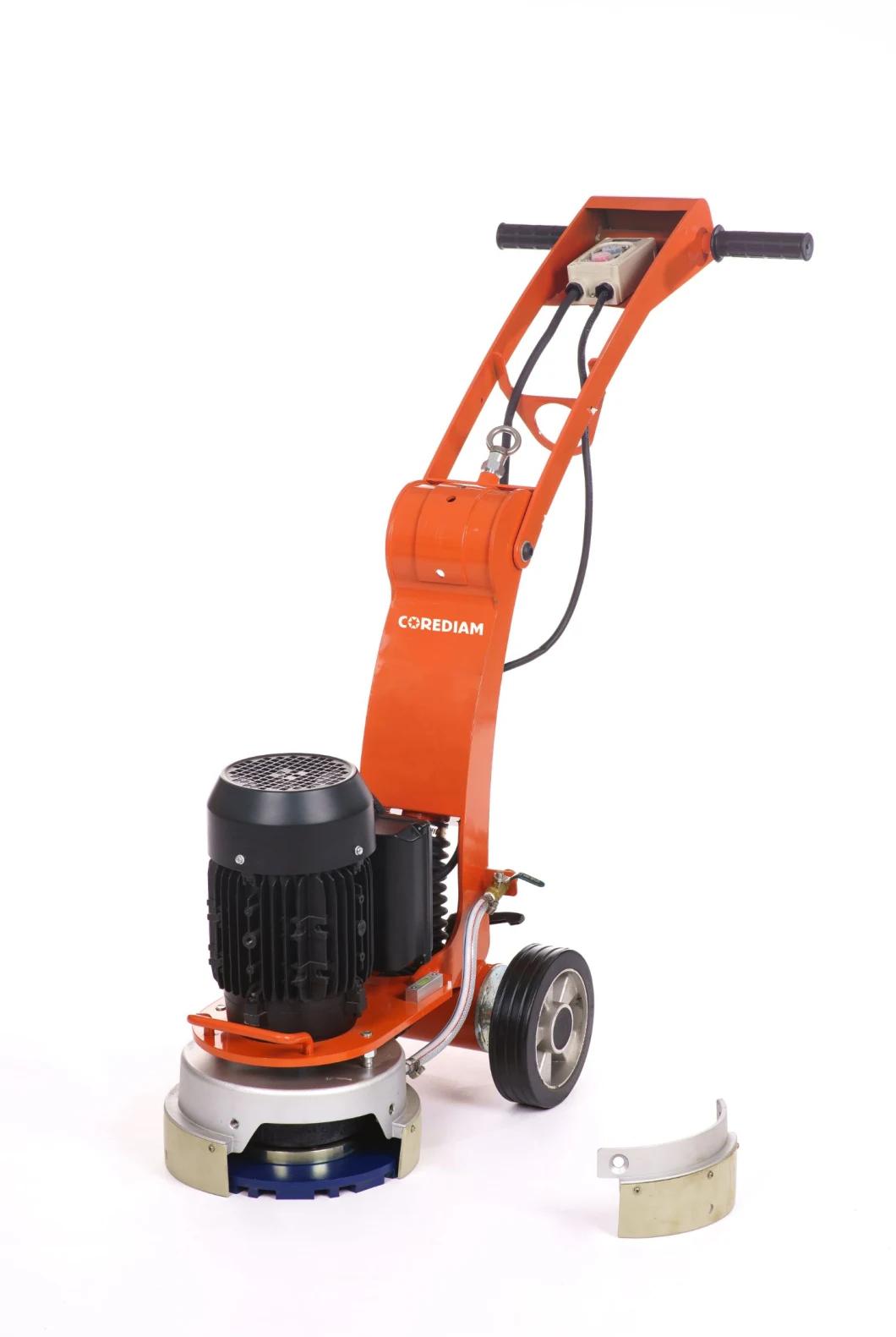

1. CGM250 Floor Grinder introduction

The Floor Grinder is a sturdy, reliable, and easy to use the machine.
The Floor Grinder is fitted 2.2kw single phase motor. This motor offers a direct drive to the grinding plate with the incorporation of a flexible coupling between the motor and the plate.

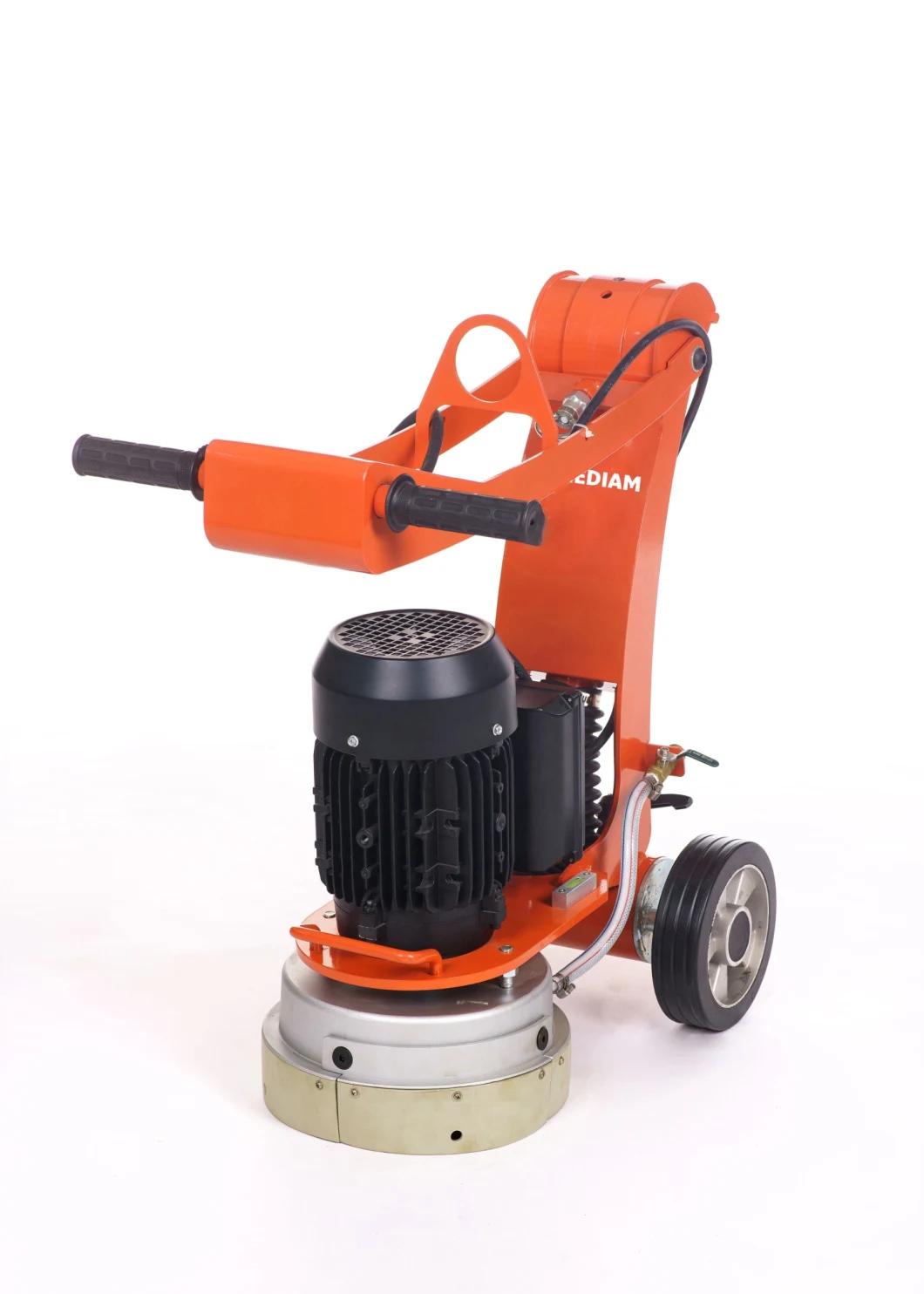

The Floor Grinder has a foldable handle which enables it to be easily transported in the trunk of most small vehicles, the below picture for your review:




Other Instruction during working:
(1)The machine is designed to operate with the wheels in contact with the floor at all times. Do not operate with wheels off the floor.
(2)Do not attempt to make any adjustments while the machine is in operation. Any adjustments must only be performed when the machine is stopped and power disconnected.
(3)In the event of the machine pulling to one side all the time; adjust the axle height to obtain the best result.
(4)After a few minutes of grinding, check the wear out of the diamond tool due to soft concrete/abrasive concrete. We have a wide range of diamonds to suit every need.
(5)CAUTION-Line terminals may be alive when the main switch is in the off position. Disconnect all power at source before performing any maintenance or repairs.
(6)WARNING- Do not operate the machine with any electrical panels open.
(7)WARNING- The CGM250 has an overload switch and will trip when under excessive load and will not allow the machine to be switched on if it is overloaded.
(8)Never use equipment that has not been tested and tagged (including cords).
(9)Before connecting the machine to power, check the condition of all power leads and cables on, or used in conjunction with the machine. Do not use it if any faults cuts; wear marks, bare wires out of plugs or sockets.

2.Specification


Model Spec.	GTG250D
Rated Voltage	220V
Power	2.2KW/3HP
Speed	1500rpm

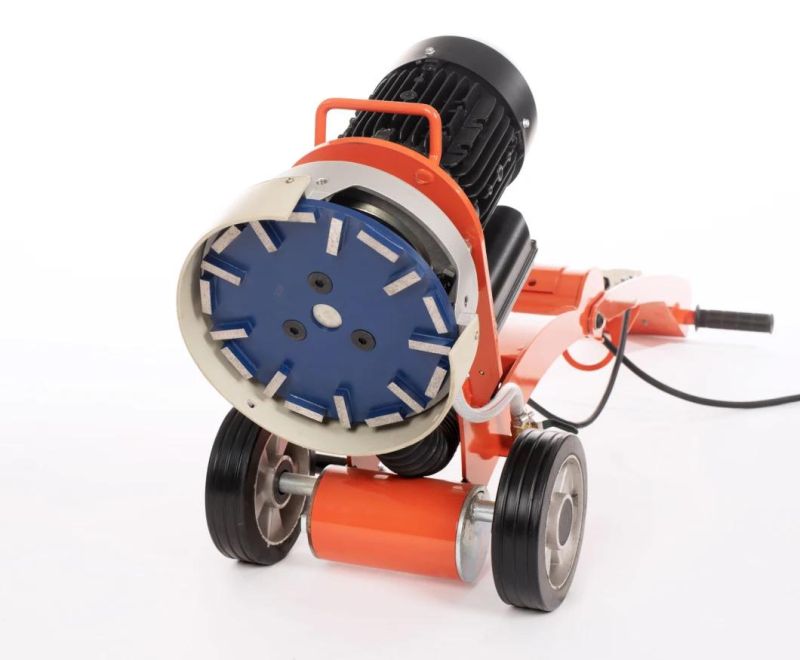

Plate Type	Standard 250mm Grinding Disc or Grinding Plate
Plate Bolt Types	M12x25 Countersunk socket head
Packing Size	500mmx410mmx410mm
Weight	70kg
Quantity	145pcs./40 container                 70pcs./20container

3.Operation Instructions

The Floor Grinder is designed to be used either wet or dry. If the floor is being ground dry, ensure a suitable industrial vacuum is connected and that operator is wearing suitable breathing respiratory equipment.

Starting the Grinder
Check the grinding plate being used is suitable for the material being ground and that they are correctly balanced.
Check that the grinding plate being used are in good order and properly attached, with all countersunk bolts firmly in place. Check this occasionally during use, as they can work loose during operation.
Check that the grinding plate is adjusted so that it sits level on the ground.
Check that all nuts and bolts on the folding handle latch are tight and firm.
Raise the grinding plates from the floor.
Start the motor by pressing the black switch on the starter box.
Lower the grinding plate and commence grinding.

Stopping the Grinder
De-press the red stop button on the starter box.


4.Application

Rough surface grinding different kinds of concrete and masonry materials with superior efficiency.



5. Delivery time

2 week for sample order, and  2-3 weeks for batch orders.



6.Corediam introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing the manufacturing and marketing diamond tools industry. We have the most extensive, innovative, and powerful range of diamond tools for construction, stone, and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
