• Model NO.：ATC Stone CNC Router
• Certification：CE, ISO
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stone Industry
• Customized：Customized
• Keyword：Kitchen Counter CNC Machine
• Power：4000W
• Working Voltage：380V,50Hz
• Y-Axis Working Stroke：2000mm
• Z-Axis Working Stroke：260mm
• a-Axis Working Stroke：360 Degree Rotation
• X/Y-Axis Cutting Speed：1-2000mm,Min
• Motors：Servo System
• Warranty：2 Years
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Power(W)：11kw
• Transport Package：Wooden Case
• Specification：3000*1500mm
• Trademark：iGoldencnc
• Origin：China
• Production Capacity：500

Basic Info.

Model NO. ATC Stone CNC Router Certification CE, ISO Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stone Industry Customized Customized Keyword Kitchen Counter CNC Machine Power 4000W Working Voltage 380V/50Hz Y-Axis Working Stroke 2000mm Z-Axis Working Stroke 260mm a-Axis Working Stroke 360 Degree Rotation X/Y-Axis Cutting Speed 1-2000mm/Min Motors Servo System Warranty 2 Years After-Sales Service Provided Engineers Available to Service Machinery Overseas Power(W) 11kw Transport Package Wooden Case Specification 3000*1500mm Trademark iGoldencnc Origin China Production Capacity 500

Product Description

3015 Stone Cnc Router Quarry Block Cutting Machine Table Stone Cnc with ATC

3000*1500*500mm size atc stone processing center
1) machine body:Heavy duty big square tube steel bed structure
2) function:ATC function
3) transmitting system:XY axis is rack and pinion,Z axis TBI Ball Screw
4) guide rail:XYZ all from Famous Taiwan Hiwin Line 30mm Square guide way
5) Spindle:ATC 5.5KW/7.5KW water cooled spindle
6) inverter:Fuling 7.5kw inverter

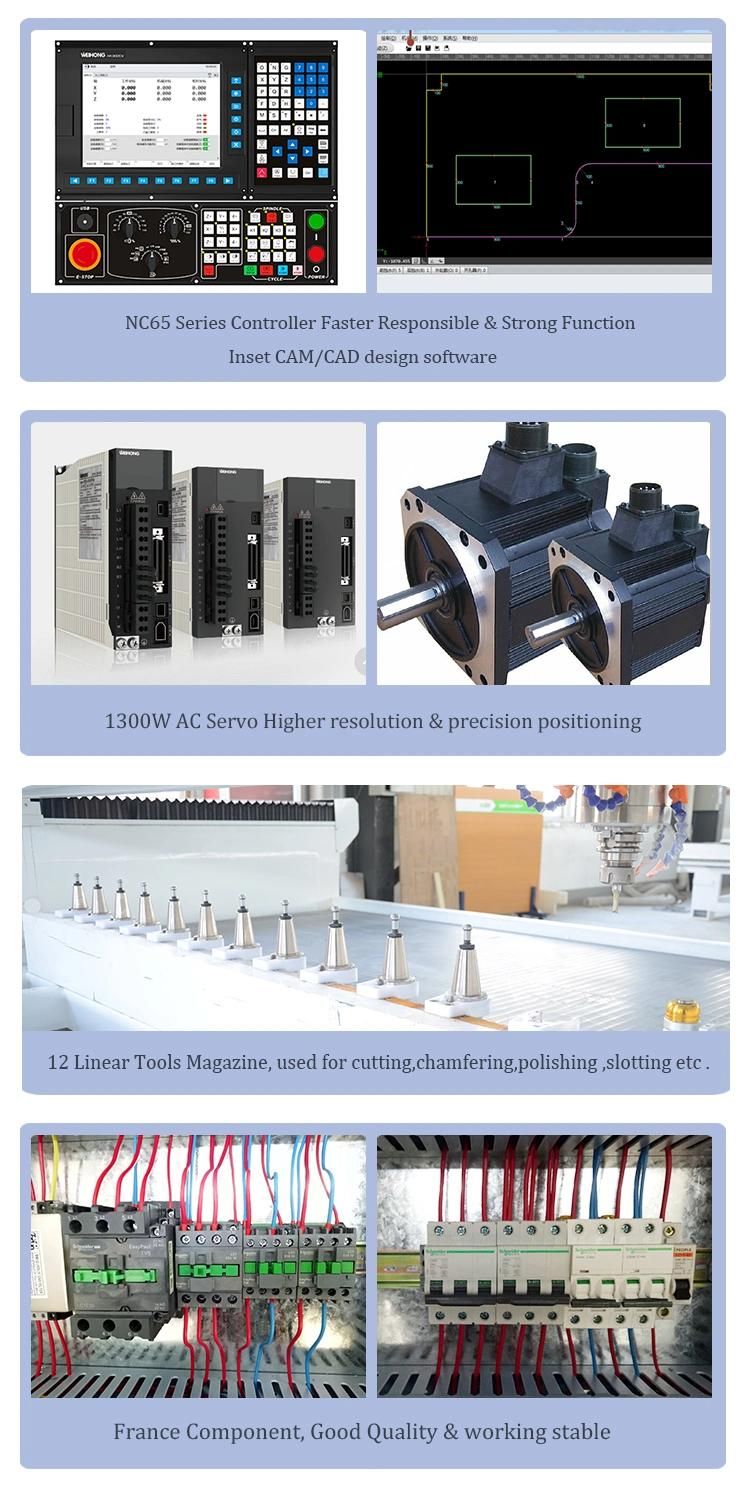

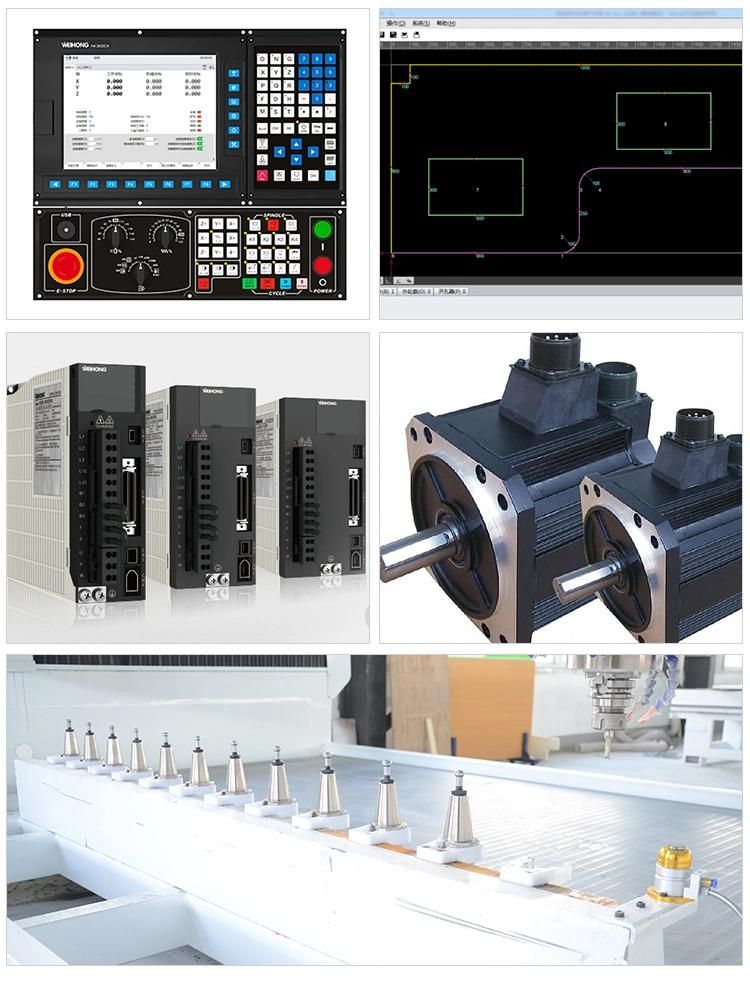

7) motor: Servo motors and drivers
8) Controller system: Germany Siemens controller system
9)Voltage:380v three phase
10)software:Artcam software
11)others:automatic Lubrication system

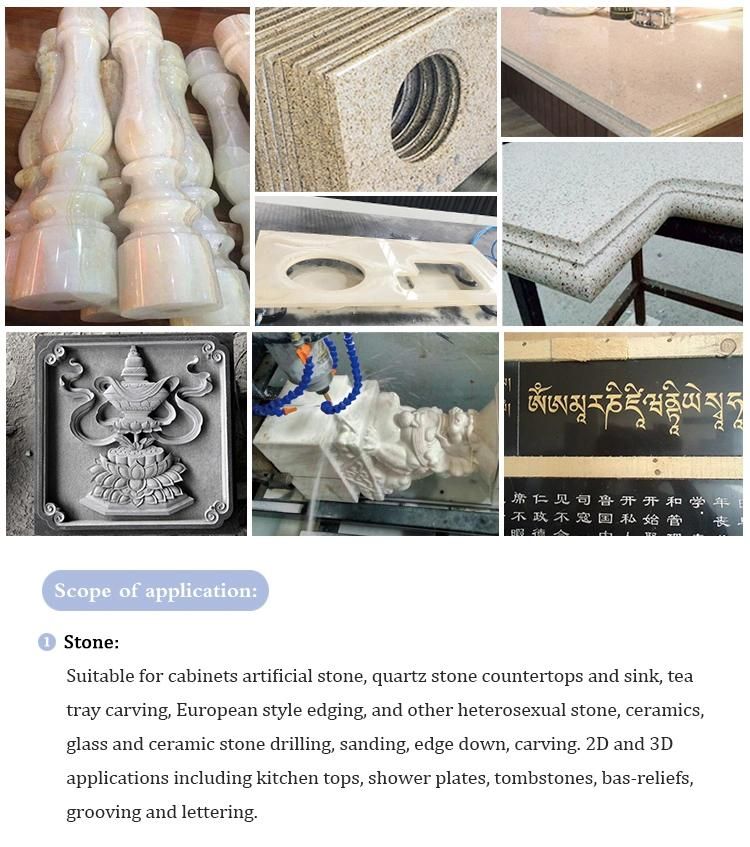

Application:
Marble, granite, China black, bluestone, jade, ceramic, crystal, glass, plastic, plexiglass, PVC board, bamboo, aluminum panels, metal etc. material.
Applicable industry
Stone, tombstone processing, advertising, decoration, crafts etc. 2D,3D carving, three-dimensional relief, cutting, drilling, industries.

Packing & shipping:

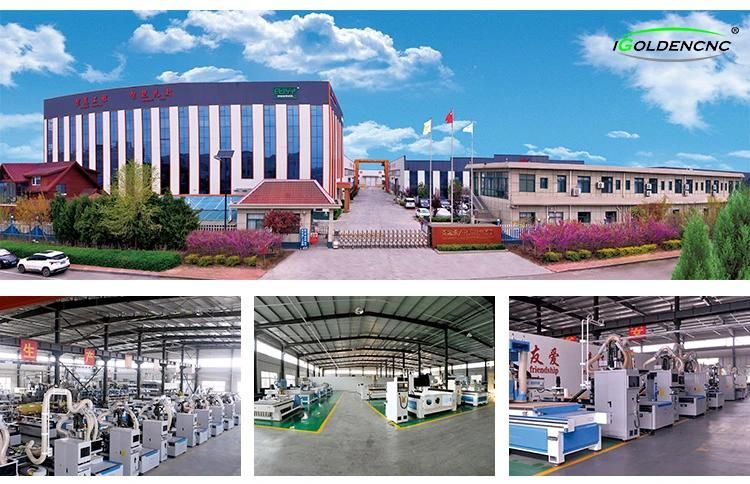

Company information:

Jinan iGolden Cnc Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc. The main configuration all adopt top parts which imported from Italy, Japan, Germany, etc.

We adopt international advanced producing technologies to improve our products.Our products are widely used in advertising,woodworking, artworks, model, electric, CAD/CAM Industry Model, Clothing, Package Printing, Marking, Laser Sealing and so on.
