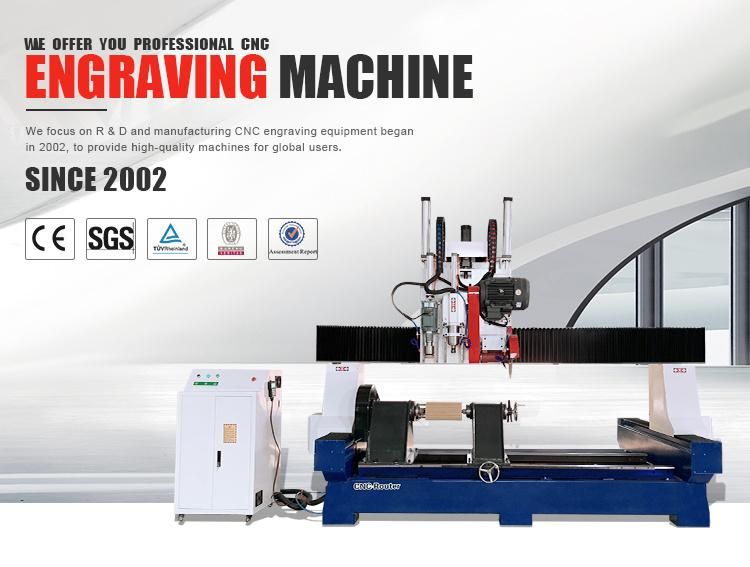

Stone 3D Sculpture Buddha CNC Engraving Machine with Rotary Axis
Linyi Chaoda International CNC Technology Co., Ltd.- Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
- Application Material：Marble, Granite,Stone,Wood
- Automation：Semi-automatic
- Control：CNC
- Motor Power：Middle Power
- Engraving Head Speed Adjustability：Wide Adjustable Range
Base Info
- Model NO.：JCS8017R
- Certification：CE, BV, TUV, SGS
- Current：AC
- Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
- Customized：Customized
- Type：Stone 3D Sculpture Buddha CNC Engraving Machine
- Working Size：800mm Diameter, 1700mm Length
- One Head with Spindle：for Engraving
- One Head with Saw Disc：for Rough Machining
- Control System：DSP,Ncstudio,Syntec
- Motor：Stepper,Servo Motor
- Cooling System：Double Water Cooling
- Oil System：Yes
- Option：Polishing Pad
- Transport Package：Protected by Film and Fastened with Metal Wires
- Specification：customized
- Trademark：CHAODA
- Origin：China
Description
Basic Info.
Model NO. JCS8017R Certification CE, BV, TUV, SGS Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Type Stone 3D Sculpture Buddha CNC Engraving Machine Working Size 800mm Diameter, 1700mm Length One Head with Spindle for Engraving One Head with Saw Disc for Rough Machining Control System DSP/Ncstudio/Syntec Motor Stepper/Servo Motor Cooling System Double Water Cooling Oil System Yes Option Polishing Pad Transport Package Protected by Film and Fastened with Metal Wires Specification customized Trademark CHAODA Origin ChinaProduct Description
stone 3d sculpture buddha cnc engraving machine with rotary axis

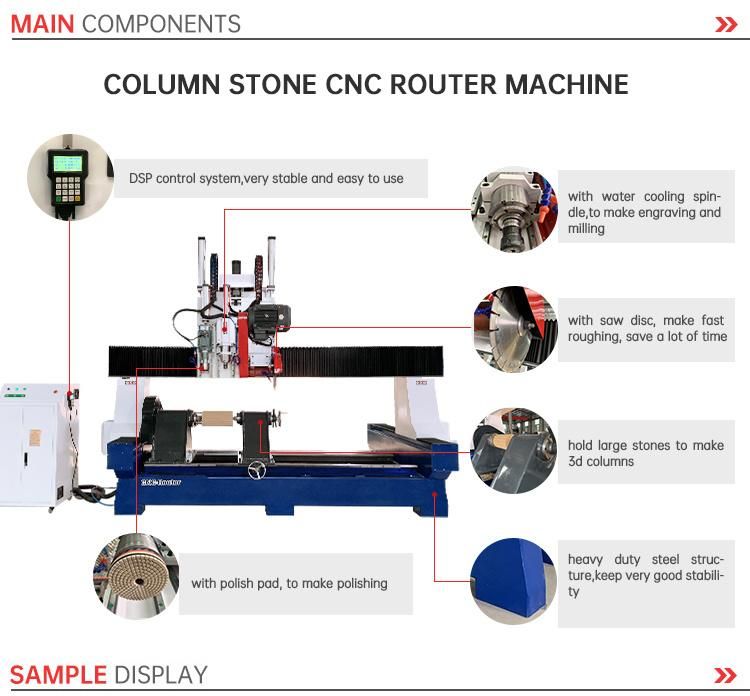

- Heavy duty steel structure, keep machine with very good stability.
- Adopt good quality machine parts,to make machine with high performance and durability.
- With electrical spindle, to make engraving.
- With saw blade unit, to make fast roughing/grooving.
- The big rotary device can process different kinds of 3d roman columns corbel pilasters cylinders pillars.
- The working size can be customized according to customers' specific requirements.
- There are 3 axis/5 axis same machines for choosing.
| Model No. | JCS8017R |
| Lathe bed | heavy duty steel structure |
| Working size | 800mm diameter, 1700mm length |
| Spindle power | 5.5 /7.5 /11KW |
| Spindle rotating | 12000 /18000 /24000rpm |
| Max.travelling speed | 30m/min |
| Max.working speed | 15m/min |
| Control system | DSP/Nsctudio |
| Motor | Stepper /Servo |
| Saw blade unit | yes |
| Polishing pad unit | yes |
| Auto oil system | yes |
| Voltage | AC380v,3 phase,50Hz |
It can work on many materials like Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone,Travertine,
Quartzite, Slate, Grindstone ,Jade, Crystal, Glass, Acrylic, Wood, PVC, EPS Foam,
Aluminum composite panel, Aluminum block, Copper and so on.
Application: Marble Granite Stone Roman Columns Corbel Pilasters Cylinders Pillars...
1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
