• Model NO.：YGM
• Grinding Machine Type：Barrel Polishing Machine
• Grinding Method：Dry Grind
• Certification：ISO, CE, SGS
• Condition：New
• Installation：Under The Guidance of Engineer
• Warrenty：1 Year
• After-Sale Service：Training, Technical Support, etc.
• Mining Object：Mining Machinery
• Delivery：7-15 Working Days
• Price Advantage：Own Factory Can Offer Best Price
• Brand Name：Tym
• Transport Package：International Packing Standard
• Specification：YGM65, YGM75, YGM85, YGM85B, YGM95, YGM130, YGM160
• Trademark：TYM
• Origin：China Mainland
• HS Code：8474201000
• Production Capacity：60 Sets,Month

Basic Info.

Model NO. YGM Grinding Machine Type Barrel Polishing Machine Grinding Method Dry Grind Certification ISO, CE, SGS Condition New Installation Under The Guidance of Engineer Warrenty 1 Year After-Sale Service Training, Technical Support, etc. Mining Object Mining Machinery Delivery 7-15 Working Days Price Advantage Own Factory Can Offer Best Price Brand Name Tym Transport Package International Packing Standard Specification YGM65, YGM75, YGM85, YGM85B, YGM95, YGM130, YGM160 Trademark TYM Origin China Mainland HS Code 8474201000 Production Capacity 60 Sets/Month

Product Description

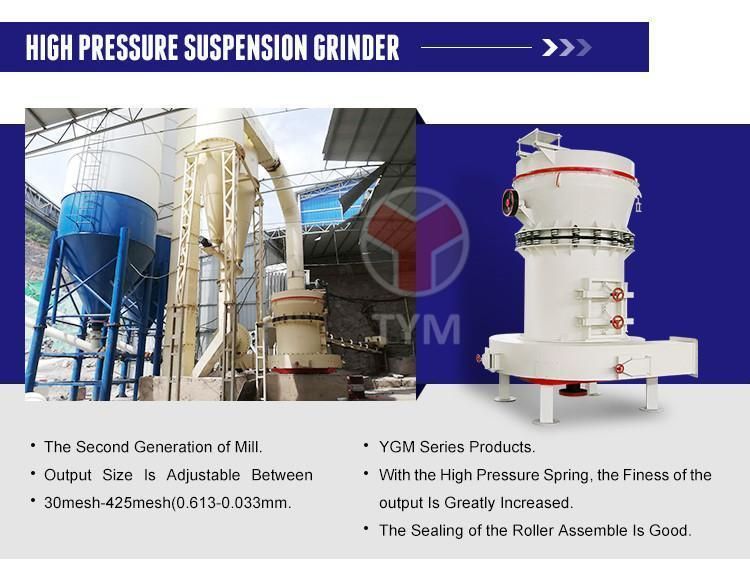

High Pressure Suspension Grinding Mill
Application:
High-pressure suspension grinding mill is mainly used to the powder processing of mineral products in the industries of metallurgy, construction materials, chemical and mining. Etc. It can produce powder from various non-flammable and non-explosive mineral materials with mohs hardness below 9.3 and humidity below 6%, such as quartz, feldspar, calcite, talcum, barite, fluoride, Xircom, cinder, white lime, cement clinker, activated carbon, and so on.
Features (compared with Raymond mill):
1. Special designed, above the plum flower frame, setting a pressure device weighted 1500kg-2000kg. The capacity increased by 10-30% under same power, the grinding pressure from grinding device to the material increased by 800-1500kgf, the fineness of final product can be up to 1000 mesh.
2. The machine is applicable to various kinds of materials, can be used for grinding all kinds of materials less than 9.3 mohs hardness.
3. The dedusting effect is completely up to national standards.
4. The grinding device adopts the high quality and efficient processing technology, multilevel seal guarantee the good sealing effect.
5. The change cycle of grinding roll and grinding rill is long; Eliminating the disadvantages of centrifugal crusher that change cycle of vulnerable parts is short.
6. The grinding device use multilevel seal, the seal effect is good.


Model	Maximum Feed size(mm)	Output size(mm)	Capacity(T)	Power of main frame(kw)
YGM65	< 15	0.613-0.033	0.4-1.8	15
YGM75	< 15	0.613-0.033	1-3	18.5
YGM85	< 20	0.613-0.033	1.2-4.6	22
YGM85B	< 20	0.613-0.033	1.2-4.6	22
YGM95	< 25	0.613-0.033	2.1-5.6	37
YGM130	< 30	0.95-0.033	3-9.5	75
YGM160	< 60	0.95-0.033	5-22	185

 About us

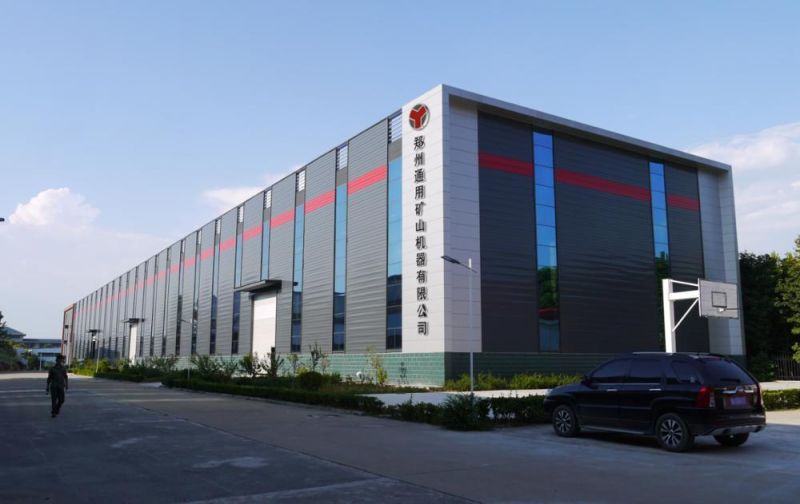

Zhengzhou General Mining Machinery Co., Ltd was founded in 2004, aiming to serve the need in mining, metallurgy, construction, chemical industry etc. We manufacture TYM brand Mining Machinery which are 100% of our own design, production detection and marketing.

What distinguishes our machine from other 's worldwide is our invention and innovation on practical and easy crushing, milling system. We believe that quality should be integrated into every part of our machine.

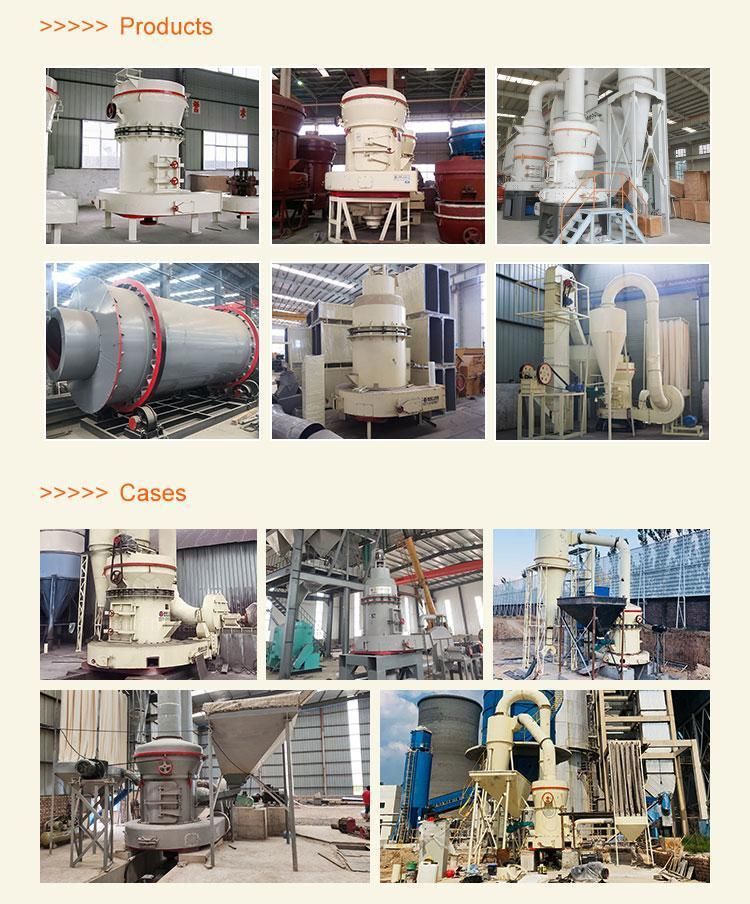

Our main products are Powder Grinder, Raymond Grinders, High Pressure Suspention Grinders, High Pressure Micro-powder Grinders, Vertical Shaft Impact Crushers, Impact Crushers, Jaw Crushers, Cone Crushers, Vibrating Screens, Sand Washing Machines, nine series of products with more than 30 kinds of specifications.

They are all designed, produced, manufactured and tested in accordance with the standard of ISO9001: 2000 international quality system standard. Our products are recognized as quality products by technical supervision departments.

Every year, we export our grinders and crushers to South Asia, Africa, South America, middle East and other regions in quantity. And our Machines enjoy a high reputation in the foreign market. We welcome you visit our company, and hope we have chance to cooperate with you. Thank you.
 Contact us

If you are interested with our products, please don't hesitate to contact us. We will provide you the most satisfying product and service. You can tell me the following questions, then I can send you accurate quotation soon, including additional discount!

1. Which machine do you need? like stone crusher, grinding mill or ball mill , etc.

2. what is your raw material plan to process? like limestone, granite or marble  ore, etc.

3. The capacity you need. Like 100 tones per hour or 2000 tones per day.

4. Your contact information. Both Email and phone number are essential, we can contact you easier.
