• Model NO.：1325
• Certification：CE, ISO, API
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Control System：Aluminum CNC Router
• Service：Offering Oversea Service
• Voltage：220,380V
• Motor Driver：Delta Servo Motor
• Machine Name：Linear Atc Tools Changer
• Working Area：1530 1325 Customized
• Automatic Tool Hange CNC Router：Rotated Spindle CNC Router
• OEM ODM：Servo Motor,Stepper Motor
• Spindle Rotation：0-18000rpm
• Spindle：Tool Change Spindle 9kw
• Tool Change：8, 10, 12PCS
• Customize Size：as Per Customer Request
• Table：Vacuum Suction Table
• Feeding Height：Customize
• Tool Change Type：Linear or Carousel
• Transport Package：Woodencase
• Specification：1300x2500x400
• Trademark：ALLWIN
• Origin：Jinan, Shandong
• HS Code：8465990000
• Production Capacity：500,Month

Basic Info.

Model NO. 1325 Certification CE, ISO, API Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Control System Aluminum CNC Router Service Offering Oversea Service Voltage 220/380V Motor Driver Delta Servo Motor Machine Name Linear Atc Tools Changer Working Area 1530 1325 Customized Automatic Tool Hange CNC Router Rotated Spindle CNC Router OEM ODM Servo Motor/Stepper Motor Spindle Rotation 0-18000rpm Spindle Tool Change Spindle 9kw Tool Change 8, 10, 12PCS Customize Size as Per Customer Request Table Vacuum Suction Table Feeding Height Customize Tool Change Type Linear or Carousel Transport Package Woodencase Specification 1300x2500x400 Trademark ALLWIN Origin Jinan, Shandong HS Code 8465990000 Production Capacity 500/Month

Product Description

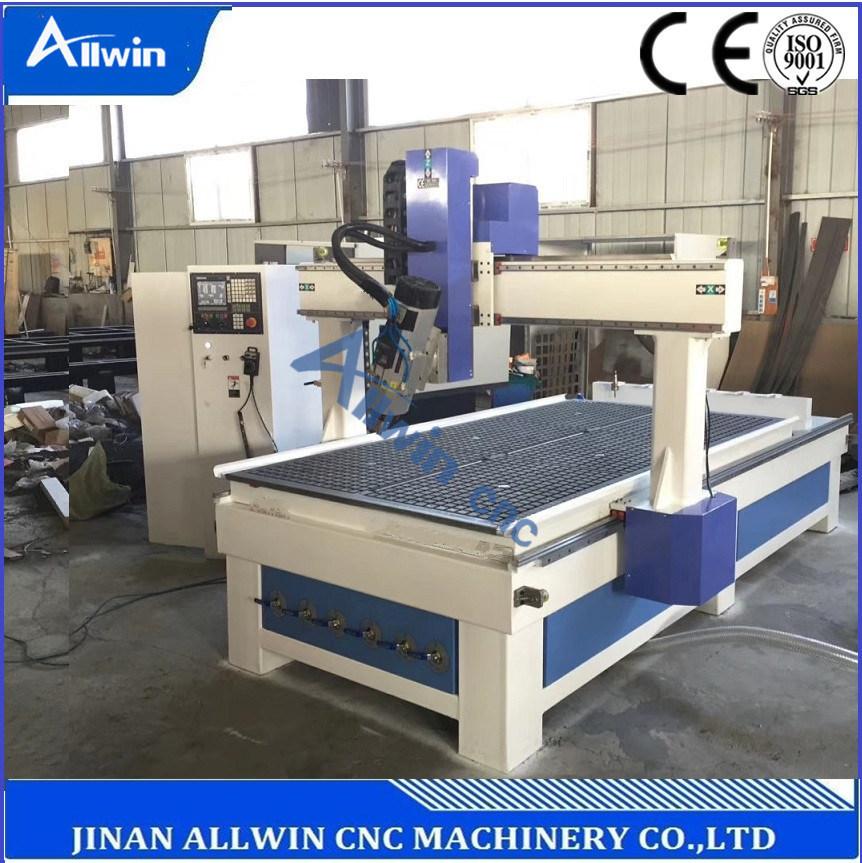

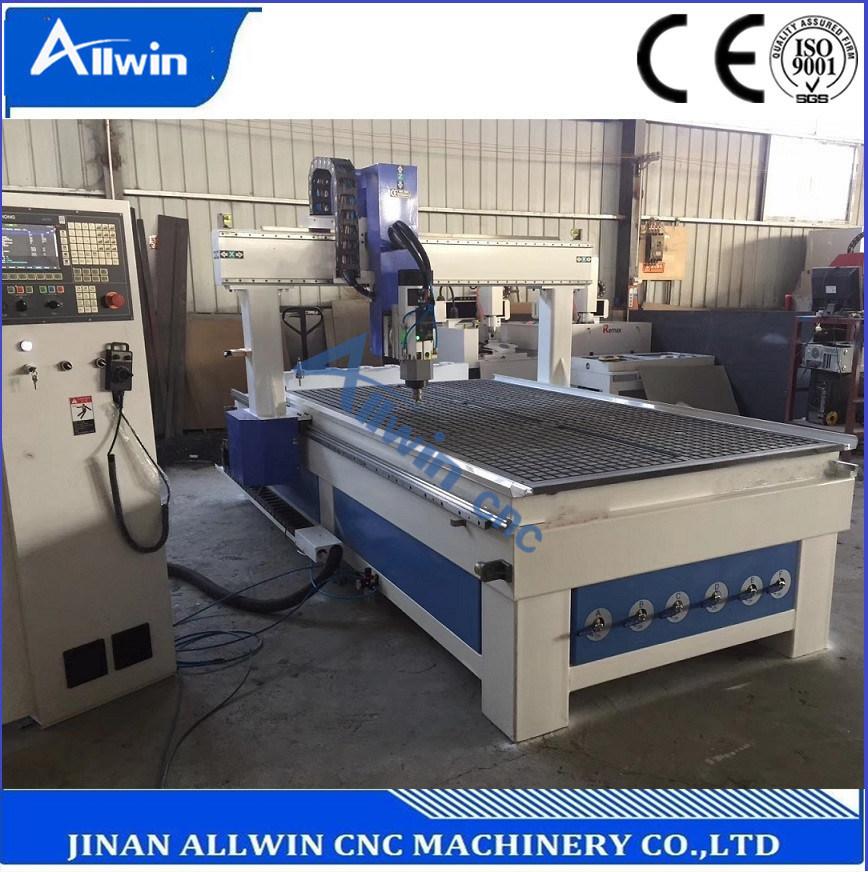

1325 Wood engraving cnc router with Linear tool change
Technical Features:
* Linear automatic tool change cnc router
*Welded,No assembly required
*Spindle with water cooling, which keeps the spindle at a constant temperature and maintains longevity
*Computer displaying the tool path and the G-code during design
*Breakpoint memory, can continue to work afte power off & breaking knife
*Compatibility software:Type 3,Artcarm,UG,Proe,CorelDraw
 *working size:we can build any working size according to customer requested.from small size to big size
1200mmx1200mm 600mmx900mm 1300mmx1300mm 1500x3000mm and 2000mmx4000mm
driving and motor:Stepper motor and Yaskawa servo
Service. We have 10 experienced engineers and 1 technical online customer service to supply 18-hour online service. If you have any problems, we can solve them online via skype and whatsapp
B. Also, remote control service via the software Team Viewer is provided for the customer to install the software and adjust the program.
Kindly Tips:
Quality is life ,Service is soul…For us Completing delivery is not the end but the beginning of the business.
recently we have been receiving some complaints from potential customers because they bought machine from their suppliers but they lost contacts with their suppliers.

          Cheap price 3 axis 1325 Wood Cnc Router Machine with linear tool change

NO.	Description	Parameter
1	X,Y,Z Working Area	1300x2500x400mm
2	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
3	X,Y,Z Repositioning Accuracy	±0.03mm
4	Table Surface	Vacuum table with T-slot
5	Frame	Welded Structure
6	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Guide
7	Z Structure	Hiwin Rail Linear Guide and TBI Ball Screw
8	Max. Power Consumption	(Without Spindle)  2.5kw~3Kw
9	Max. Rapid Travel Rate	25000mm/min
10	Max. Working Speed	18000mm/min
11	Spindle Power	9.0KW Air cooled spindle
12	Spindle Speed	0-24000RPM
13	Drive Motors	Delta servo
14	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V)
15	Command Language	G Code
16	Operating System	DSP System (Options: Ncstudio/Mach3 PC Software)
17	Computer Interface	USB
18	Flash Memory	128M(U Disk)
19	Collet	ER25
20	X,Y Resolution	<0.01mm
21	Software Compatibility	Type3/UcancameV9 Software, (Option: Artcam Software)
22	Running Environment  Temperature	0 - 45 Centigrade
23	Relative Humidity	30% - 75%
24	Inverter	Best
25	Electrical components	China good brand
26	Limit switch	OMRON
27	Driver	Leadshine

 Applied material for 3 axis woodworking cnc router high precision with stable working.
Wood, Composites, MDF,Aluminum, Steel, Gold,Silver,Copper,Acrylic,Plastic, Foam and so on.
Application of high precision smooth cnc router
Woodworking,3D Carving,Cabinetry,Sign Making,Acrylic Fabrication, Aluminum Fabrication,Exhibits and Fixtures,etc
FAQ:
A This is the first time I use this kind of machine, is it easy to operate?
1. There are English manual or teaching video that show how to use machine.
2. If there is still have any question, please contact us by e-mail /
skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you?   ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your payment.And 100% quality check before shipping.
6. Send your order by air or by sea.
E 10 good reasons why you should buy from us?
1 We are a real factory offering products
2 Free technical advice by QUALIFIED MECHANICAL ENGINEERS
3 Company in business for many years
4 Over 50 countries customers served!
5 Buy directly saving your money!
6 All machine with CE certificate.
7 Machine and spindle warranty 1 year.
8 Our engineer can go to your country to provide technical guidance
9 We have phone support in English, if you have any questions, you can call it,
   we can give you a best solution within 24 hours
10 Fast delivery, save your time.
