• Model NO.：HTG 800-4A
• Grinding Machine Type：Motor Polishing Machine
• Grinding Method：Dry Grind
• Certification：CE, SGS ISO9001
• Condition：New
• Name：Self-Propelled Floor Grinder 800-4A
• Power：15kw,20HP
• Rotating Speed：450-1960rpm
• Weight：540kg,1190lbs
• Voltage Amperage：220-240V,53A Three Phase
• Working Width：800mm(256*4)
• Inverter：18.5kw,25HP
• Water Proof：2.55m
• Add Weight Iron：20kg*2
• OEM：Yes
• Water Tank：24L
• Package Type：Standard Wooden Case
• Color：Customer Requirement
• Transport Package：Three-Ply Board
• Specification：135*85*132
• Trademark：HIGH TECH GRINDING
• Origin：China
• HS Code：84642090
• Production Capacity：5000

18.5KW/A18.525HP

Power

15KW/20HP

Voltage

220-240/53A  three phase

Rotating Speed

450-1950rpm

Weight

540kg/1190lbs

Operating Width

800mm(256*4)

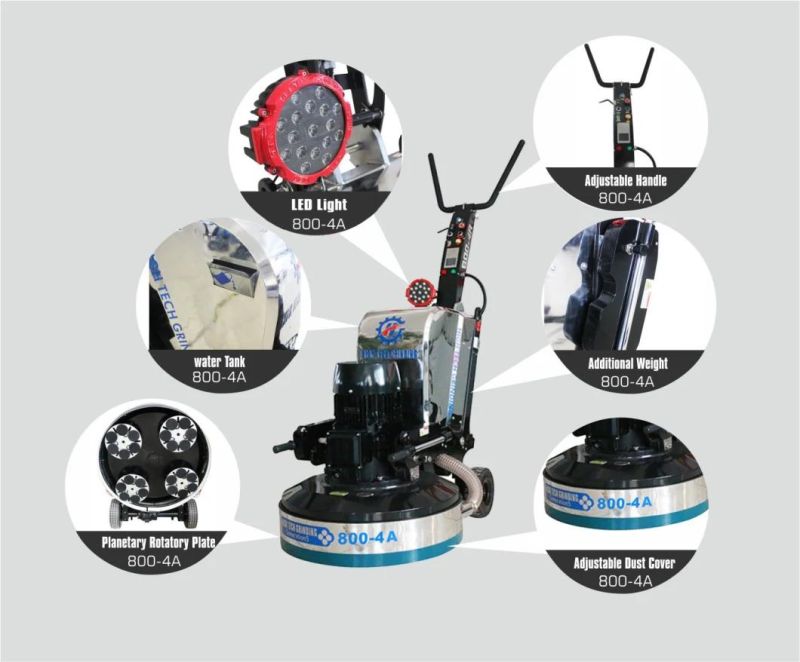

 Machine Shows


Self-walking,workers don't need to push or pull the machine.
There is a motor on the leg which can actuate the machine to walk forward and backward.

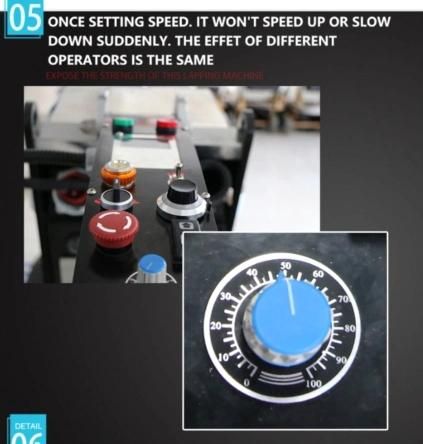

Dual-speed setting function,even grinding
Walking speed 0-25m/min, motor speed 450-1950rpm.
Each grit, at different time, different labor, the speed will be the same and achieve even grinding, no human subjective influence.

Generation 5 gearbox design,strong grinding force
The scientific gearbox design allows me able to walk at whatever rough surface. The 24 pieces heads run in plantary rotating direction increase my grinding force. Any hard or uneven floor, no more headache.

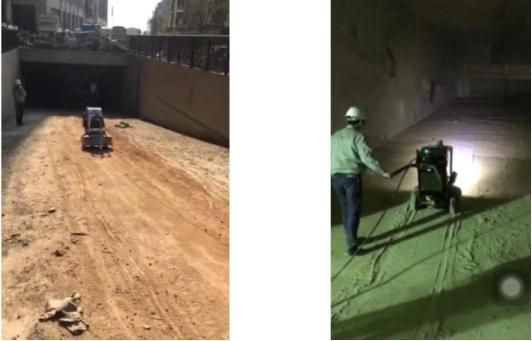

Slope grinding ability
Rose to the challenge is it's character.As long as the slope is within 25 degree,It can easily climb or down.No need 2 or 3 big man to drag it.

Advantages

1.According to the ground, the machine can use different kind of diamond tools.

2.The machine can be used for dry and wet grinding.

3.There is a dust port for you to connect industrial vacuum cleaner.

4.Patent planetary rotating system.

5.Precise and durable gear-driven.

6.Long battery life (Charge 7 hours can walk 25 hours)

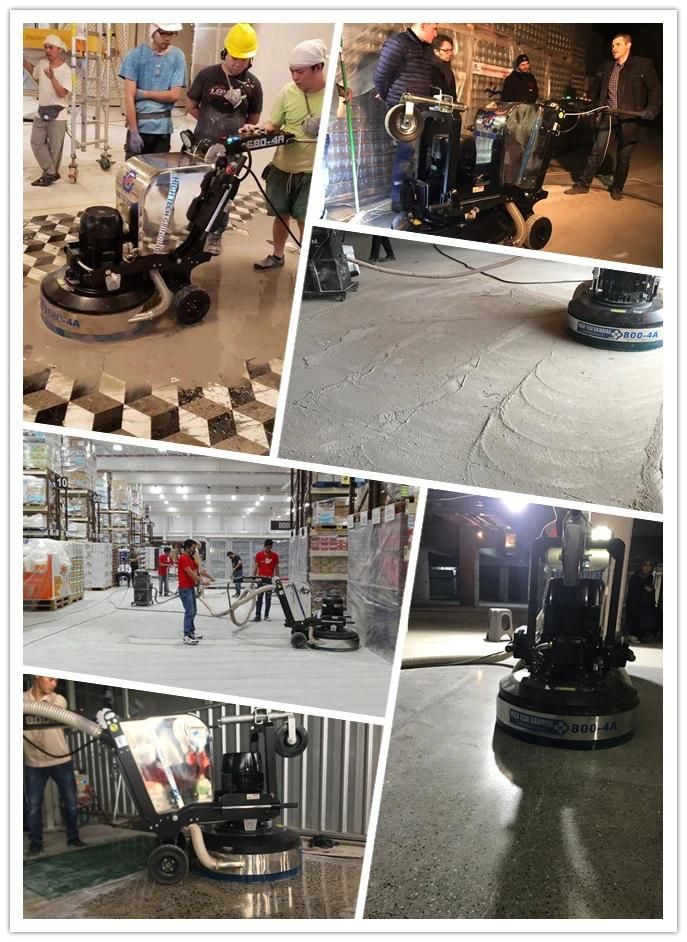

Concrete Floor Grinder Machine Customer Demo

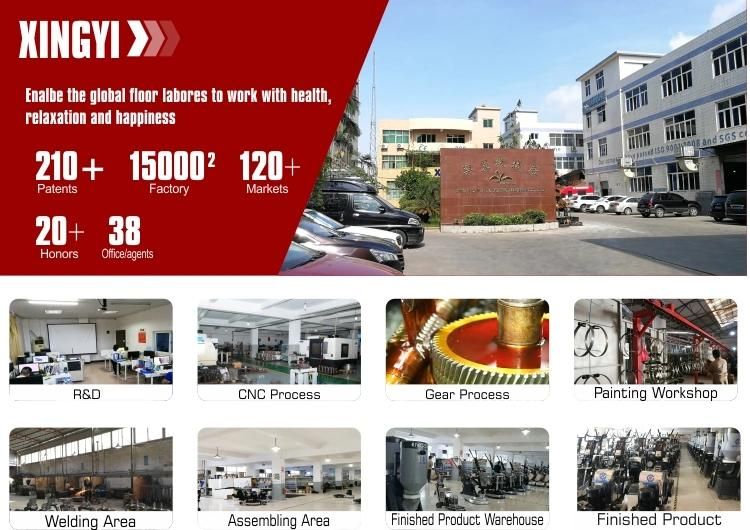

Manufacturing Center


Xingyi Polishing Machine Co.,Ltd is proud to be one of integrators that providing full-floor polishing products and service in China.We have Global Series and High Tech Grinding Series Polishing Machines which varies from one head to four heads can be able to meet different construction requirements. The gear-driven machines are user-friendly and productive, and they are able to grind efficiently and give out a a fine polish on the surface. And our machines can work in planetary or rotatory direction. Moreover, We do provide various horsepower options such as 20HP, 15HP, 10HP, 7.5HP and more.We also offer our The High Tech Grinding Tools including metal pads and resin pads with fantastic value and a good price. As for chemicals, we have our High Tech Grinding Chemicals for repairing, hardening, sealing and stone crystallization.

If you have any problems,please don't be hesitate to contact us,thank you!

Jane Ling - international sales Dept
Facebook: Floor Grinder
Website:xingyigroup.en.made-in-china.com
Tel:+86-15960788816

Our Certificates



Packing & Delivery
Packing Dteails:Each floor grinding machine packed in strandard  wooden case.
                          Delivery Time:Shipped in 7 days after payment.

FAQ
Q: Are u the manufacturer ?
A: Yes of course, we are the manufacturer ! we welcome clients to visit our factory to inspect our
produce process at any time.Our factory is located in Jinjiang, China ( Xiamen airport, Xingyi pick up )

Q: How long your product's warranty ?
A: One year warranty .

Q: What is your MOQ ?
A: 1 set

Q: What is your packaging ?
A: We package in Plywood case.

Q: What is your payment method ?
A: 100%^Or 50% T/T advance, the balance should be pay off before shipment.

Q: Do your machine can be custom-made ?
A: Yes, we can design and produce according to client's requirements.

Q: What is your delivery time ?
A: 7~20 days ( according to the total quantity)
