• Model NO.：BD1630
• Certification：CE, ISO
• Current：AC
• Application：Glass, Decoration, Advertising, Art & Craft, Stone Industry
• Customized：Customized
• Configuration：5.5kw Mechanical Spindle
• Drive Motor：Yaskawa Servo Motor
• Control System：Nc Studio ,DSP
• Suction Cup：6PCS
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：3000KG
• Trademark：Boiro
• Origin：China
• HS Code：8464909000
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. BD1630 Certification CE, ISO Current AC Application Glass, Decoration, Advertising, Art & Craft, Stone Industry Customized Customized Configuration 5.5kw Mechanical Spindle Drive Motor Yaskawa Servo Motor Control System Nc Studio /DSP Suction Cup 6PCS Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 3000KG Trademark Boiro Origin China HS Code 8464909000 Production Capacity 300 Sets/Month

Product Description

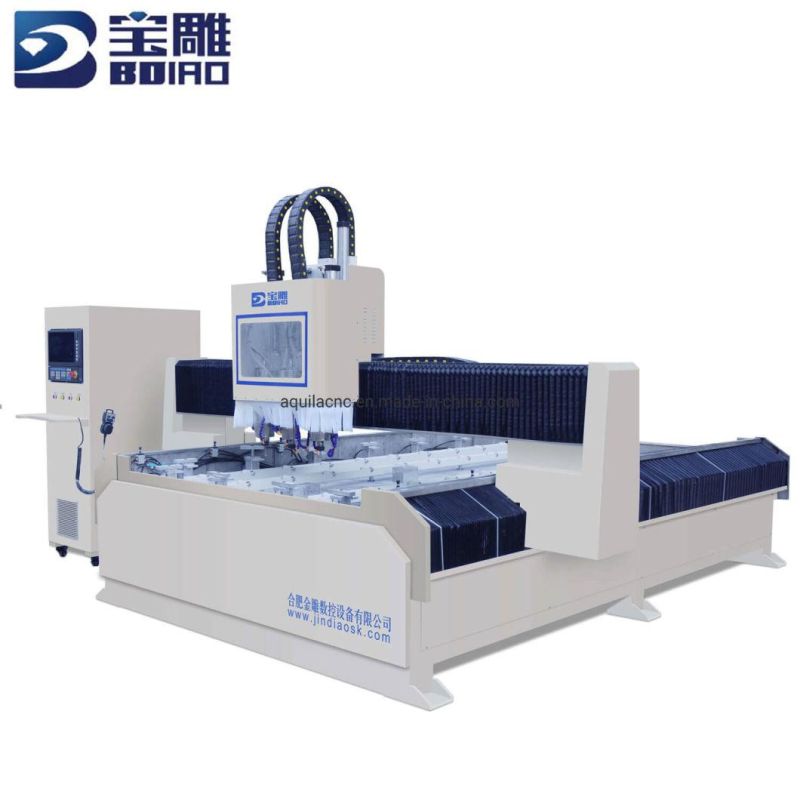

Marble Countertops Processing Bd1630 with Polishing Function CNC Machine
 Keywords:15 years experience of production
                   ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                   Three Brand: Mars, Golden Eagle,Borio



Description:
Marble Countertops Processing Bd1630 with Polishing Function CNC Machine is BOIRO featured machine widely used in quartz stone,marble,granite and other materials made of countertop,wash basin,shaped lines,grinding and cutting process.BOIRO design it for many years, now popular in the market, it's economic machining center of stone cutting machine.

Functions:
The functions of this machine include 2D sculpture,3D relief,cutting,chamfering,drilling and engraving.

Applicable Materials:
Widely used for marble, jade, granite, tombstones, milestones,ceramic tiles,glass,bluestones and etc..


Application Scope:
Suitable for stone processing, countertop, wash basin, shaped lines, grinding and cutting process, tombstone processing, mold prcessing,art relief, decoration, ceramic processing, advertising industry.


Parameters:

X/Y/Z Axis Working Area	1600*3000*240mm
Machine Size	4010*2700*2400mm (After disassembling, size should be around 4010*2250*2400mm)
Working Table	Aviation aluminum plate + engineering plastic table top
Machine Structure	Thick steel welded, with aging treatment
Control System	NC Studio NC65C
Drive Motor	Leadshine servo motor and Stepper driver motor
Spindle Motor Power	5.5KW+7.5KW water cooled spindle
Spindle speed	Adjustable Rotational Speed with 0-24000 rpm/min
Inverter	Zoncn (Optional with Fuling)
Drive System	X/Y axis helical rack & pinion, Z axis Taiwan ball screw
Guide Rail	Taiwan imported linear guide rail PMI
Cooling System	Circulating water-refluxing design/Round Spray
Oil System	Automatic Oil system
Way of Fixing Workpiece	Double-sided sealed vacuum adsorption system
Suction cup	6pcs
Water and dust resistant	Intelligent dust proof cooling system
Hand wheel	Electric hand wheel
Profile polishing wheel	Max diameter 150mm
Tool type	BT40, Φ35, Φ30
Collet/Tool holder	ER32, Φ10, Φ12, Φ12.7, Φ16, Φ20
Vacuum Pump	1*7.5KW
Electric Motor	7.5KW
Positioning cylinder	6pcs
Electric Appliance	Germany Schneider
Reducer	Planetary reducer
Working accuracy	±0.08mm
Re-positioning accuracy	±0.05mm
Max. Traveling Speed	25 m/min
Max.Working Speed	15 m/min
Water Sink/Tank	Powder-painting (Stainless steel is optional)
Dictate Format	G-Code / HPGL
Water consumption	46L/min
Air pressure	0.8Mpa
Weight	3000KGS
Working Voltage	AC380V 3PH 50HZ

Accessories:

Performance Features:
1.Thick steel tube welded body structure, with aging treatment, ensure no deformation, high rigidity, good stability.
2.Famous brand big torque motor, low noise, large power, high efficiency.
3.Adopt imported square linear guide rail, high speed, high precision, long life.
4.Z axis adopts high precision German ball screw drive, ensure accuracy; Y axis adopts high precision gear rack drive, fast speed, big strength.
5.Reasonable dustproof and waterproof design, fully protect the machine transmission parts.
6.Good compatibility, cam be compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JD Paint/ Ucancam, etc..
7.Tools and abrasives: a large number of imported and domestic specifications and shapes of tools and abrasives, as well as a variety of processing requirements.
8.Vacuum adsorption device with double-sided seal makes the workpiece loading and unloading convenient, fast and accurate, ensuring that the stone is not moved when grinding and polishing.
9.The z-axis adopts high-precision imported ball screw drive to ensure the precision. Y axis selection of high - precision gear rack transmission, high speed, big power.
10.Adopt gantry structure, stable structure, high stability.

Samples:


Pack and delivery:
 Warranty Information:
1.Warranty and Service:
Guarantee:12 months for the whole machine.
Within 12 months under normal use and maintenance, if something is wrong with machine, you will get spare part for free.
Out of 12 months, you will get spare part at cost price.
Technical support: You will also get technical support and service all the lifetime.
(1).Technical support by phone, email or Whatsapp/Skype around the clock.
(2).Friendly manual and operation video online.
(3).Engineer available to service machinery overseas.
2.After sales Services:
(1).Normal machine is properly adjusted before dispatch. You will be able to use the machines immediately.
(2).You will be able to get free training advice towards our machine in our factory.
(3).You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
3.Quality control:
(1).Skilled and Strict Quality Inspection Team is available during the material purchasing and production procedure according to ISO 9001:2015.
(2).All finished machine we shipped out are 100% strictly tested by our QC department and engineering department.

FAQ Before Ordering:
Q 1. I have no idea which machine can meet my need,what should I do?
A: Please tell the what's material you want to working on ?
     What's the MAX size of these material ?( length ? Width ? Thickness ?)
     Then I will recommend the most suitable machine for you.

Q 2. I do not know how to handling CNC Router,what should I do?
A: We will supply you a training video and English handbook to teach you how to operate.Or we will welcome you to arrive China to field-based learning .

Q 3. If my machine has some problems in the warranty period,what should I do?
A: If the machine part broken within warrantry time,we will send new part to you for free.

Q 4.How about your after-sales service ?
A: Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock. And we can arrange technician go to your company to solve problem if neeeded.

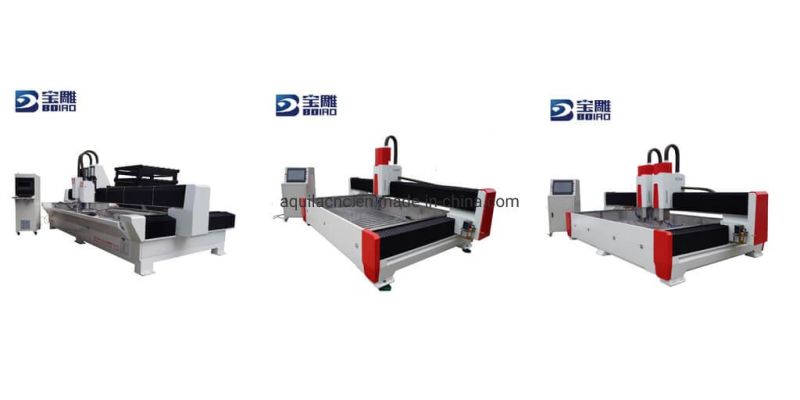

Similar products:


Our company:
Our company is 15 years professional manufacturers of panel furniture production line equipment, CNC cutting machine, five surface drilling, PTP machine, CNC machining center, wood carving machine, stone carving machine, jade carving machine, three-dimensional carving machine, mold machine.


Our certifications:


Why choose Hefei Aquila CNC Equipment Co., Ltd?
1.Our company has 15 years experience of production, and is a set research and development, manufacturing, sales,and has the national certification of  "High-tech enterprises."
2.With over 15 years experience and dozens of national patents, our company has passed the ISO9001:2008 Quality Management System and CE Certificate, and is also entitled as the AAA Level Enterprise which Honors Contract and Keeps Promise.
3.We have the professional R&D team and quality control system, to provide you with the most valuable products and services.
4. Our sales& service network has covered all dometic major cities and overseas markets, such as the USA, European, Southeast Asia, Middle East etc.Let you have the most perfect after-sales service.

Our Services:
1. Convenient: 24th Hours sales/After-sales Service online or on the phone.
2. Quality Assurance: We will discuss with you and supply you the best quality comfortable to your market.
3. Quick delivery: Time is money, we promise we always will deliver the goods quicker than others.
4. According to customers' drawing,customized specifications are welcomed.
5. Low MOQ,small orders can be accepted.

We are searching distributors all over the world. If you have any demands, welcome to contact us and visit our factory.
