• Model NO.：JCS1520R
• Certification：CE, ISO, BV, TUV
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry, Ice, Wood, Plastic, Foam, Light Metal
• Customized：Customized
• Applicable Material：Wood, Stone, Glass, Ice, Soft Metal, Plastic, Foam
• X,Y, Z Working Size：150mm(Diameter)*2000mm(Length) Can Be Customerized
• Pindle Power：11kw Water Cooling Spindle,12kw
• Operating System：4 Axis Ncstudio, 5 Axis Syntec
• Transport Package：Plywood Case
• Specification：working size 500mm(diameter)*2000mm(length)
• Trademark：CHAODA
• Origin：China
• HS Code：8465990000
• Production Capacity：800sets,Year

Basic Info.

Model NO. JCS1520R Certification CE, ISO, BV, TUV Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry, Ice, Wood, Plastic, Foam, Light Metal Customized Customized Applicable Material Wood, Stone, Glass, Ice, Soft Metal, Plastic, Foam X,Y, Z Working Size 150mm(Diameter)*2000mm(Length) Can Be Customerized Pindle Power 11kw Water Cooling Spindle/12kw Operating System 4 Axis Ncstudio/ 5 Axis Syntec Transport Package Plywood Case Specification working size 500mm(diameter)*2000mm(length) Trademark CHAODA Origin China HS Code 8465990000 Production Capacity 800sets/Year

Product Description

 All Kinds of Stone CNC Router Machine, 5 Axis 4 Axis 3 Axis Stone Engraving and Milling Lathe for 3D Stone Sculpture, Stone Pillar and 2D Stone Letter & Relief

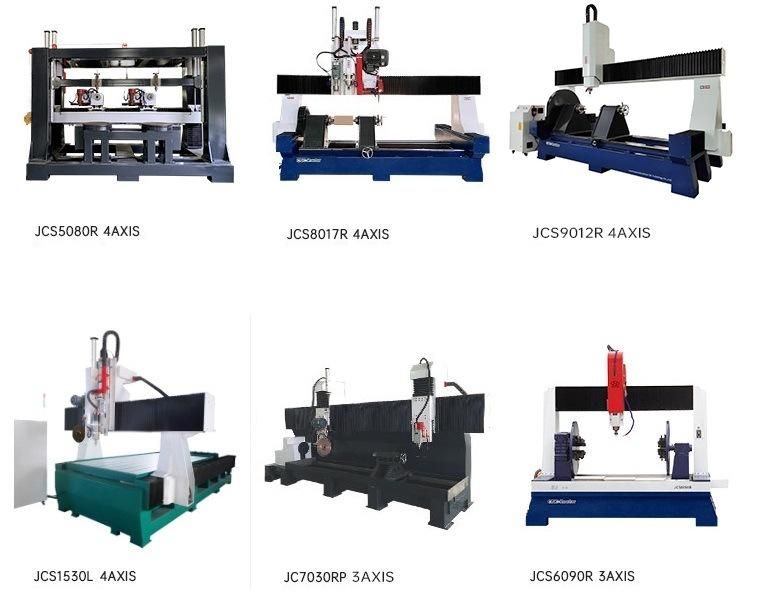

our products include cnc router of 3 axis, 4 axis, 5 axis and 5+1 axis
as well as 3d scanner, hot wire foam cutter, laser machine and plasma cutting machine
we supply not only cnc machine!
we also supply best solution to your specific project !!

Series	5-axis 4 axis  cnc
Model	JCS1520R
Working Size	2000mm length, 1500mm diameter (other size available upon request)
Lathe Bed Structure	T-extrusion, thick steel frame
X Structure	Rack and pinion, 4pcs HIWIN linear square rail
Z Structure	Double ball screw, 4pcs HIWIN linear square rail
Reposition Accuracy	±0.03mm
Max. Moving Speed	0-25000mm/min
Max. Working Speed	0-15000mm/min
Spindle	11kw water cooling spindle (option: 9kw, 12kw)
Saw Blade Unit	Yes, for rough machining
Spindle Rotation Speed	0-12000RPM
Working Mode	Japan YASKAWA servo motor and driver
Working Voltage	3 phase AC380V 50HZ/60Hz or request
Command Code	G code(*uoo,*nc,*mmg, *plt)
Operating System	5 axis Taiwan Syntec controller (option: 4 axis Ncstudio NK300 CX)
Running Circumustance	Temperature: 0°C~45°C; relative humidity: 30%~75%
Certificates	CE, BV, TUV, SGS

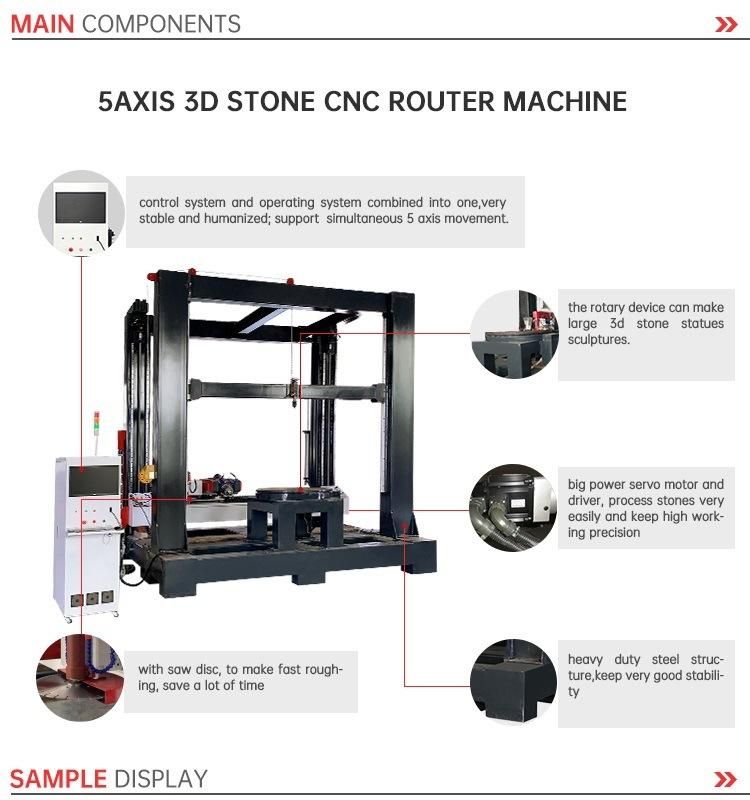

1. Heavy duty welded lathe bed of profiled steel, stabilizing treated under high temperature
 2.Y axis with double motors to drive that ensures stable and precise performance
 3. With high precision rack gear transmission, with imported square linear guide rail, that ensure high accuracy, fast speed, heavy duty with long service life.
 4. Professional design and high quality machine parts provides this machine with low break down rate
 5. Unique double water cooling system ensured spindle cooling and cutter cooling with long working time.
 6. Welded lathe bed of profiled steel, stabilizing treated under high temperature
 7. All dust-proof design.
 8. It not only can cut, engrave marble stones, but also can process wood foam plastics and soft metal.
